gnuLAB2 "Barretina"
Rando-light paraglider

1. BASIC DATA
2. PLANS
3. NOTES
4. CONSTRUCTION representativos
5. MATERIALS TEST
6. RIB FEM ANALYSIS
1. BASIC DATA

gnuLAB2
is the natural evolution of gnuLAB1. Light and easy paraglider, with the philosophy "rando": walking and flying!

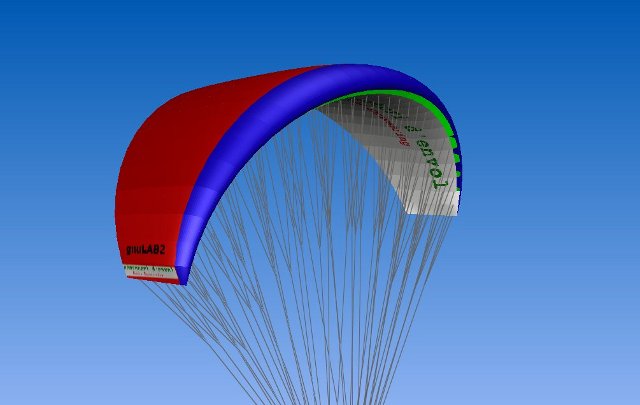

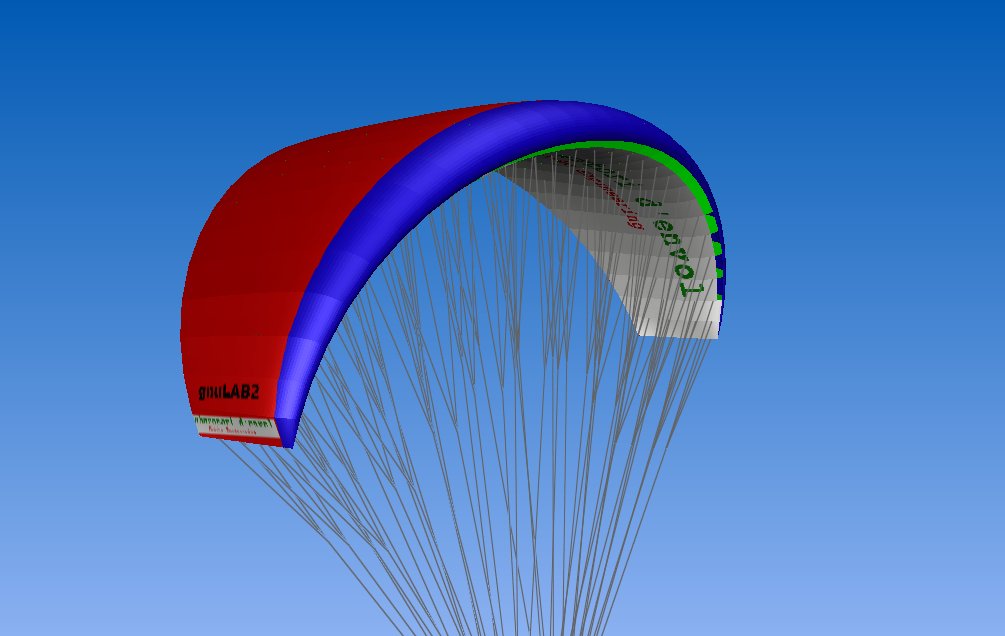

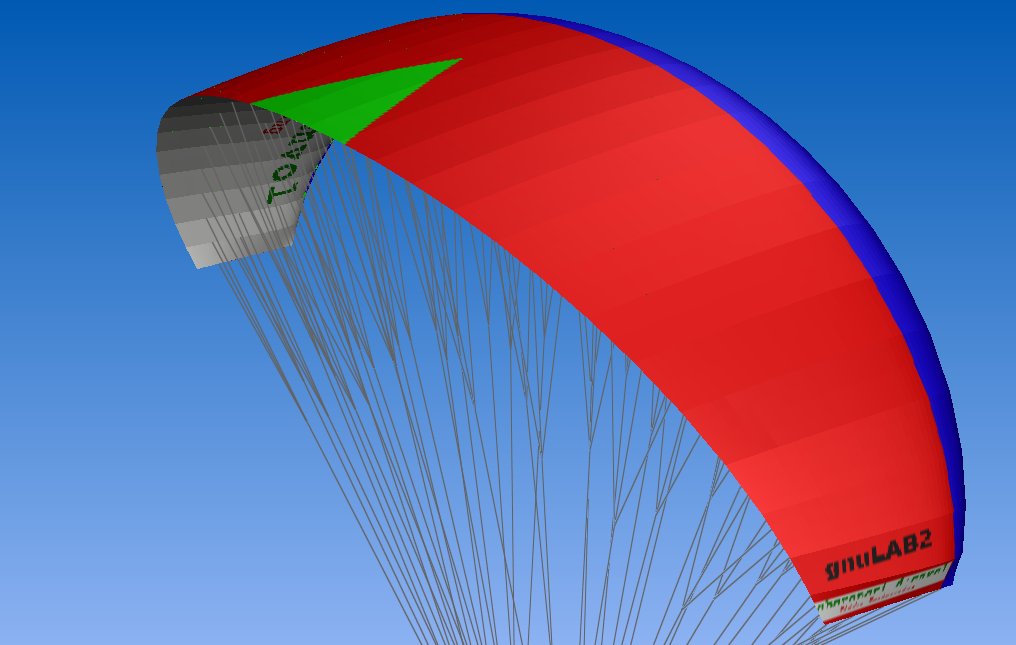

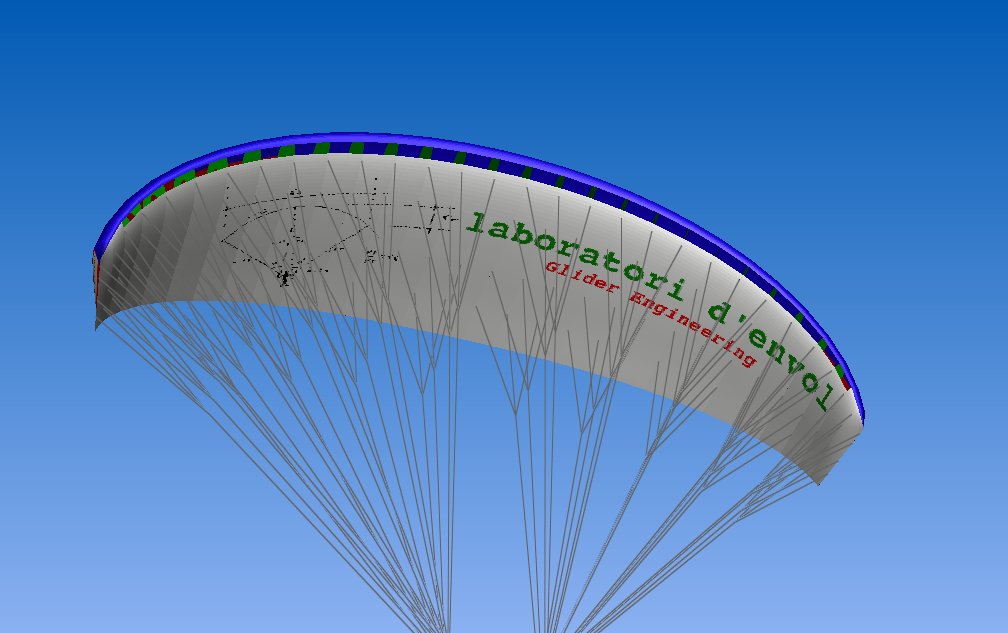

Fig 1. gnuLAB2 color design

Design specifications:

Name: gnuLAB2 "Barretina"
Area 25 m2
Total weight range 70-85 kg
Span 10.84 m
Aspect ratio 4.70
Cells number 29
Closed cells 4
Airfoil tickness 18%
Max glide estimation 7
Extrados surface
NCV 9017 40 gr/m2
Intrados surface and ribs
AIRX500 VGM 31 gr/m2
Ribs reinforcements
Eolo 42 gr/m2
Lines
Dyneema
Airfoil
gnuLAB2 18%

gnuLAB1 served to develop the design of paragliders in CAD systems...
gnuLAB2
has been designed completely with the LEparagliding software (pure Fortran)...

gnuLAB2 CAD
Fig 2. gnuLAB2 CAD plans

2. PLANS

2.1 gnuLAB2 plans
format PDF

2.2 Download gnuLAB2 plans CAD DWG format
and model DXF 3D

2.3 Plans in PNG format:


1. Index and general data

2. Planform and colors

3. Frontal view - voute

4. Calage. AoA estimation

5.1 Ribs 1 to 15

5.2 Ribs

5.3 Ribs

5.4 Ribs

5.5 Ribs

6.1 Panels

6.2 Panels

6.3 Panels

6.4 Panels

6.5 Panels

6.6 Panels

6.7 Panels

6.8 Panels

6.9 Panels

6.10 Panels

6.11 Panels

7.1 Lines description

7.2 Lines length

8. Details




3. NOTES:

7th march 2010
LEparagliding 1.0 software completed
21th march 2010
Working in the location of materials for the first prototype. Construction should begin soon :-)  !!!
26th march 2010
Visit the ateleir that will make the whole wing assembly. More information coming soon!
10th april 2010
Construction start...
6th juin 2010
Almost 10 cells already built. Everything is progressing well. We are going slowly, because among the
regular work and the paragliding competitions, there is little time for gnuLAB2!
16th july 2010
Right wing completed !!!
17th august 2010
We are sewing special risers for initial AoA adjustment
23th octobre 2010
First inflations, Sant Boi (Barcelona)
24th octobre 2010
Test flights in training hill in Avià (Berga)

4. CONSTRUCTION

Photo report of the gnuLAB2 construction
50

The construction of this proto being so collaborative. The design, pattern making, and cutting of the tissue is being done in Teià, in the Laboratory, and the assembly of all panels, profiles, anchorages, reinforcements, and the suspension lines, was being done in the paragliding workshop STRIP-AIR in El Prat de Llobregat (Barcelona). The design and construction of a new paraglider prototype is not easy and we must find the best synergies!

5. MATERIALS TESTS

6. RIB FEM ANALYSIS
Rib finite element analysis
