gnuA5-31 成都 "Chengdu" 31 m2

gnuA5-21 Chegdu
Figure 1. gnuA5-31 成都 "Chengdu"

1. DESCRIPTION

gnuA5-31 成都 "Chengdu" training paraglider size 31 m2, by Zhu Guoqiang, Chengdu (Sichuan, China). Plans of gnuA5 here, and gnuA4 here.

2. TECHNICAL ESPECIFICATIONS gnuA5-31 "Chengdu"

Size
 XL
Surface (m2)
 31 m2
Flat span (m)
 11.55
Flat AR
 4.30
Panels
 27
Closed cells
 6 (3 in each tip)
Weight range (Kg)
 90-120
Anchors per rib
 4
Risers
 3
Extrados and intrados
Ribs
Lines (m)
Certification
 No

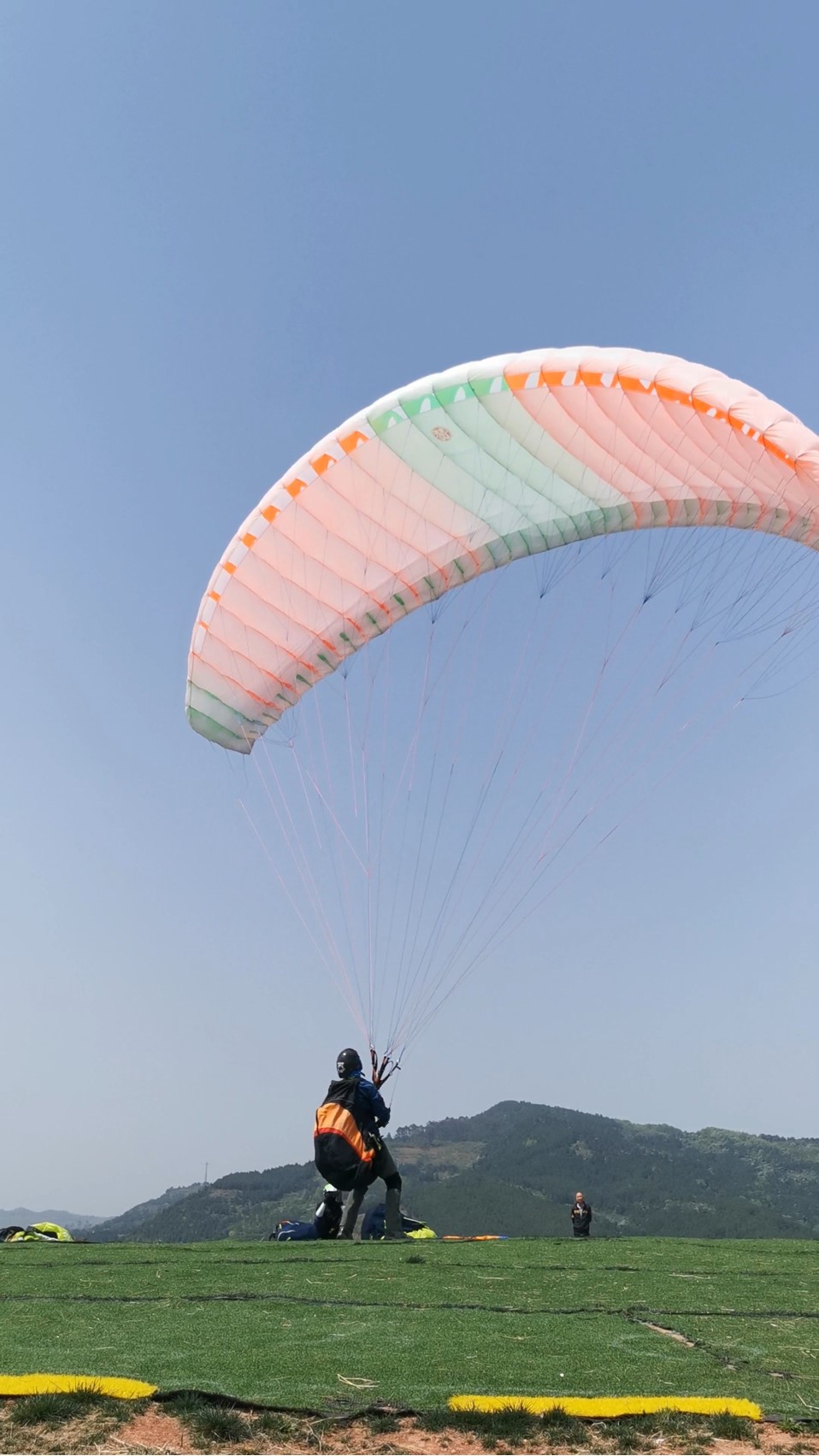

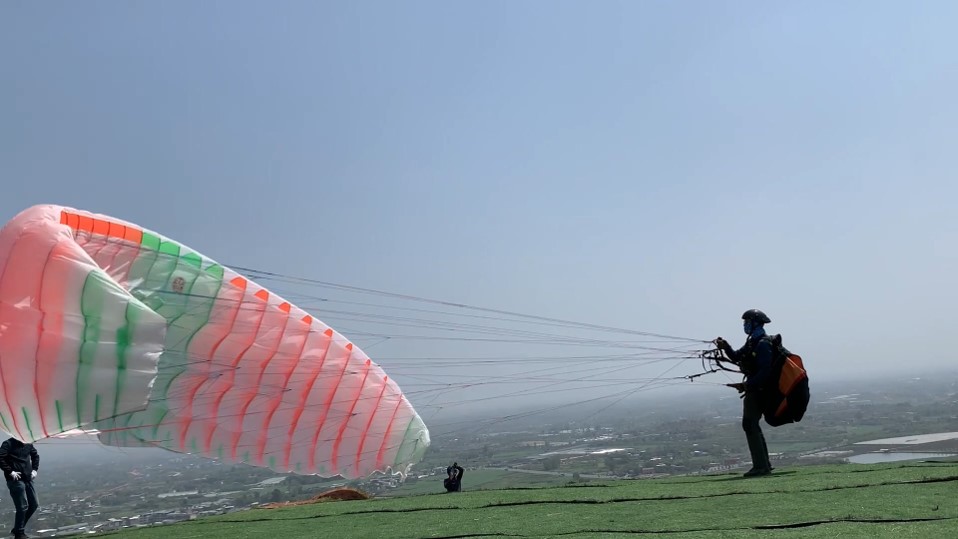

3. CONSTRUCTION AND FLIGHT

1 01
01
 2 02
02
3 03
03
 4 04
04
5 05
05
 6 06
06
7 07
07
 8 08
08
9 09
09
 10 10
10
11 11
11
 12 12
12

"exceeding expectations..."

Click on each photo to download in high resolution

Thanks to Zhu Guoqiang for sharing the details of his new prototype.

Updated September 12, 2021

LAB NOTE: Build a paraglider at home is a very complicated task (even simple skin), and requires many hours of work. Previous experience is required, and very inventive. As always remember that: The free flight implies risks that can only be known and they can be controled with a suitable formation on the part of a recognized school. Not test wings without knowing their functioning. The construction and test of experimental wings without certifying requires deep knowledge of what is being made.
