BARRETINA HYPER LITE 2

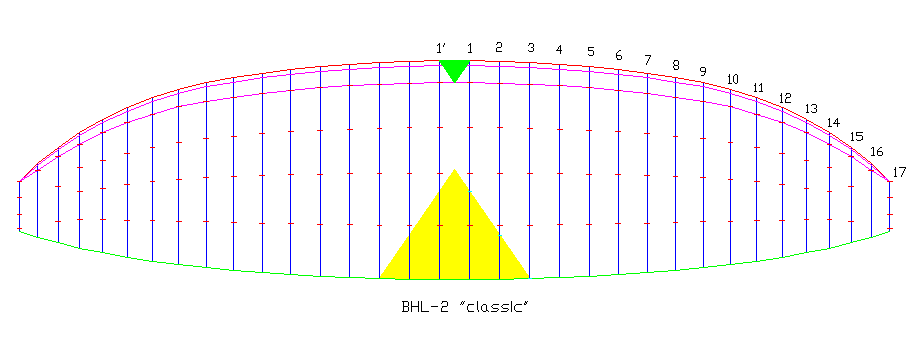

Barretina Hyper Lite 2 planform

1. Technical specifications

Model
BHL2 23 m2
Surface
23 m2
Flat span
10,69 m
Flat AR
5
Panels
33
Weight range
-
Anchors per rib
4, and 3 (near tips)
Risers
3
Trimers
optional
Certification
No

The Laboratori is working on a new model of BarretinaHyperLite "2". Some changes and improvements over the previous model. This BHL-2 "classic" model is 23 m2 in size

2. Plans

Plans 2D DXF 2000 format (2)
BHL2-23 2D
Plans 3D DXF 2000 format
BHL2-23 3D
Line list .ods and .xls formats,
including corrections
Lines.ods
Lines.xls
PDF views (lines)
PDF
LEparagliding 2.23 main data file
leparagliding.txt
bhl2 4 anchors sawtooth airfoil bhl2_01.txt
bhl2 3 anchors sawtooth airfoil bhl2_15.txt
bhl2 zero thickness airfoil bhl2_17.txt
txt output
lep-out.txt


Click on the images to see PDF's:
01

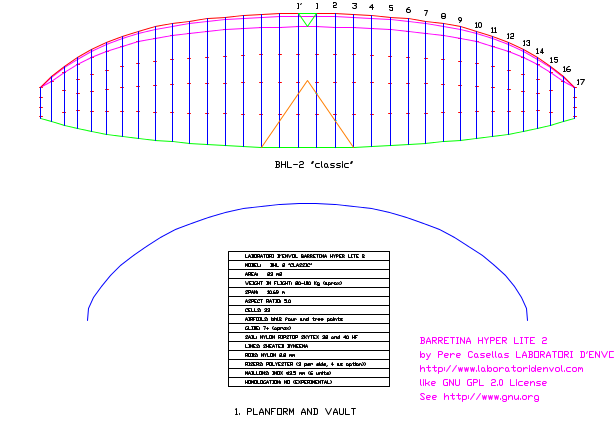

1. Planform and vault

02

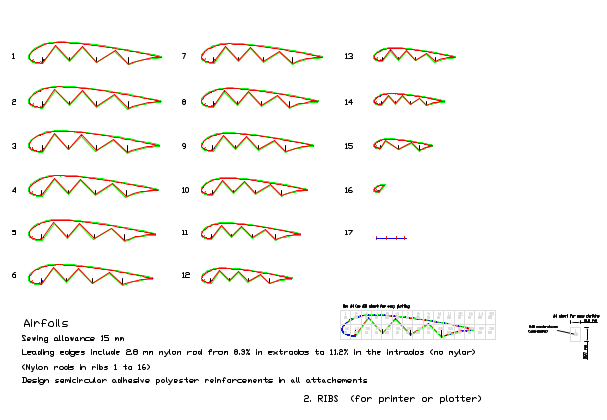

2. Ribs
03

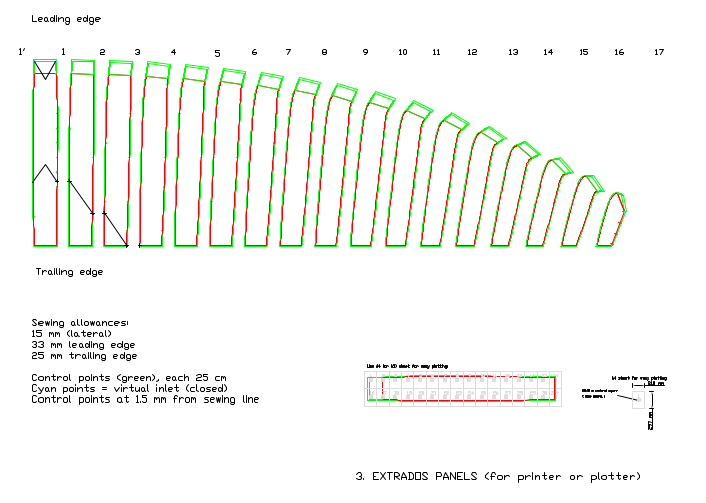

3. Panels

13

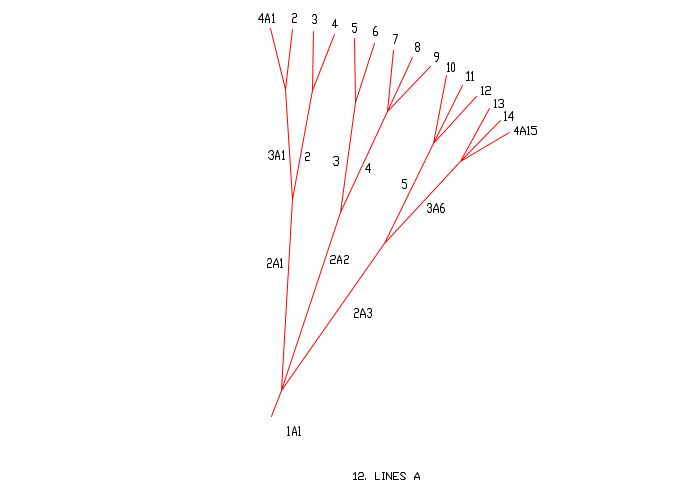

4. A lines
13

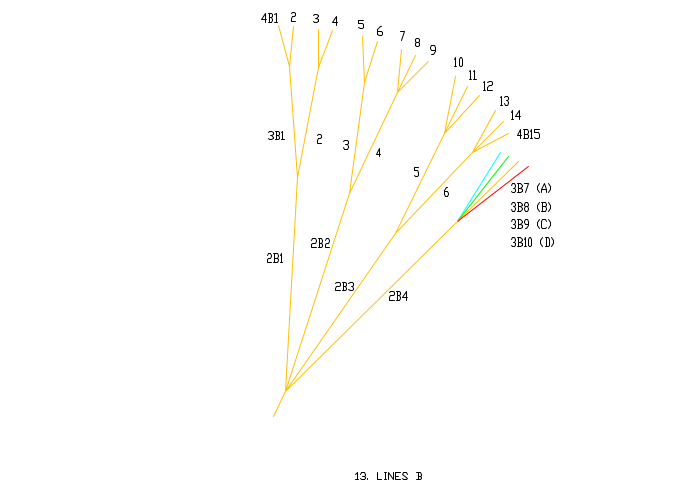

5. B lines
15
6. C lines

21

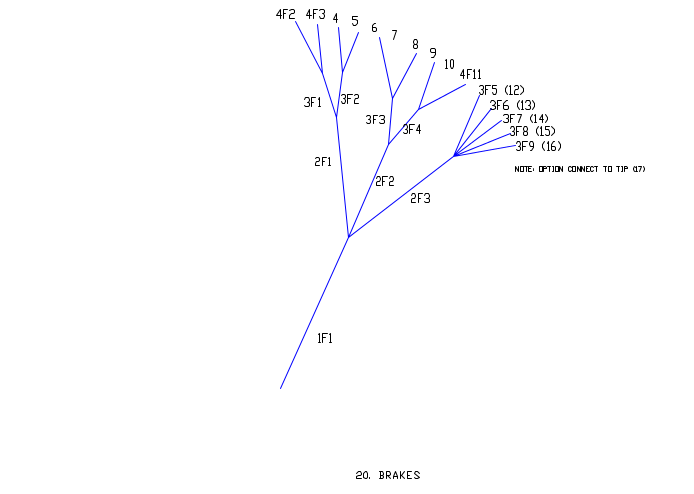

7. Brake lines

PDFs above do not serve to build. Only to get a first impression of the wing. To construct the model is necessary use CAD program to open the DXF file attached and sent the different parts to a printer A4/A3, plotter, or computerized cutting table. It is not an easy task!


Licensed like under GNU General Public License 2.0 http://www.gnu.org/licenses/gpl-2.0.html
You can freely study, copy, modify, and redistribute the plans. Make wings for private or commercial use, but retaining always the freedoms of the GNU system, giving the same license and plans of the changes and improvements.

LAB NOTE: Build a paraglider at home is a very complicated task (even simple skin), and requires many hours of work. Previous experience is required, and very inventive. As always remember that: The free flight implies risks that can only be known and they can be controled with a suitable formation on the part of a recognized school. Not test wings without knowing their functioning. The construction and test of experimental wings without certifying requires deep knowledge of what is being made.
