Hey Pere ,good morning! i finished the Kite riser plans now and i will send you a few Pictures and description:
Sun, 28/9/25, 8:09

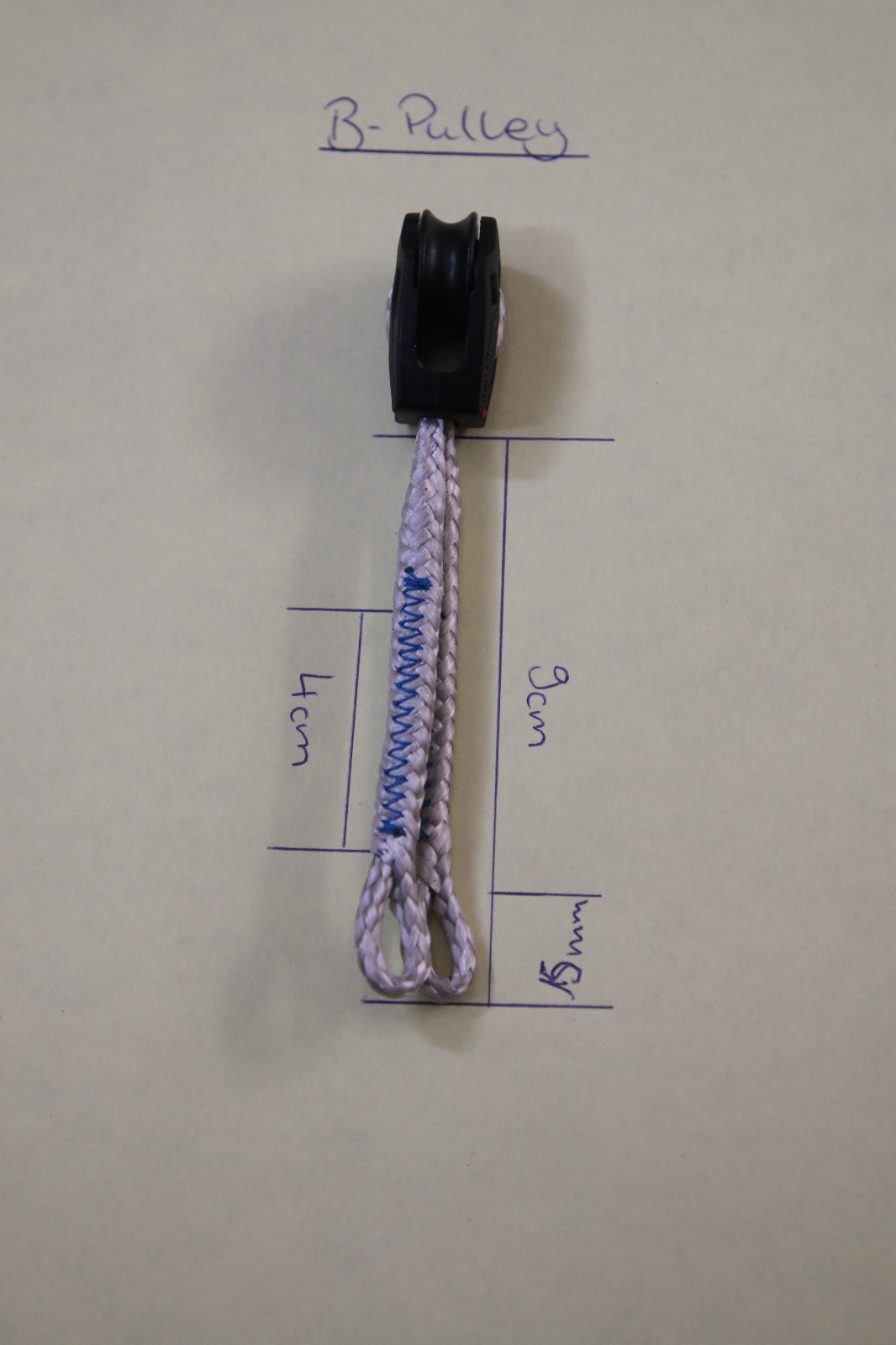

2 B-pulley
Sun, 28/9/25, 8:12

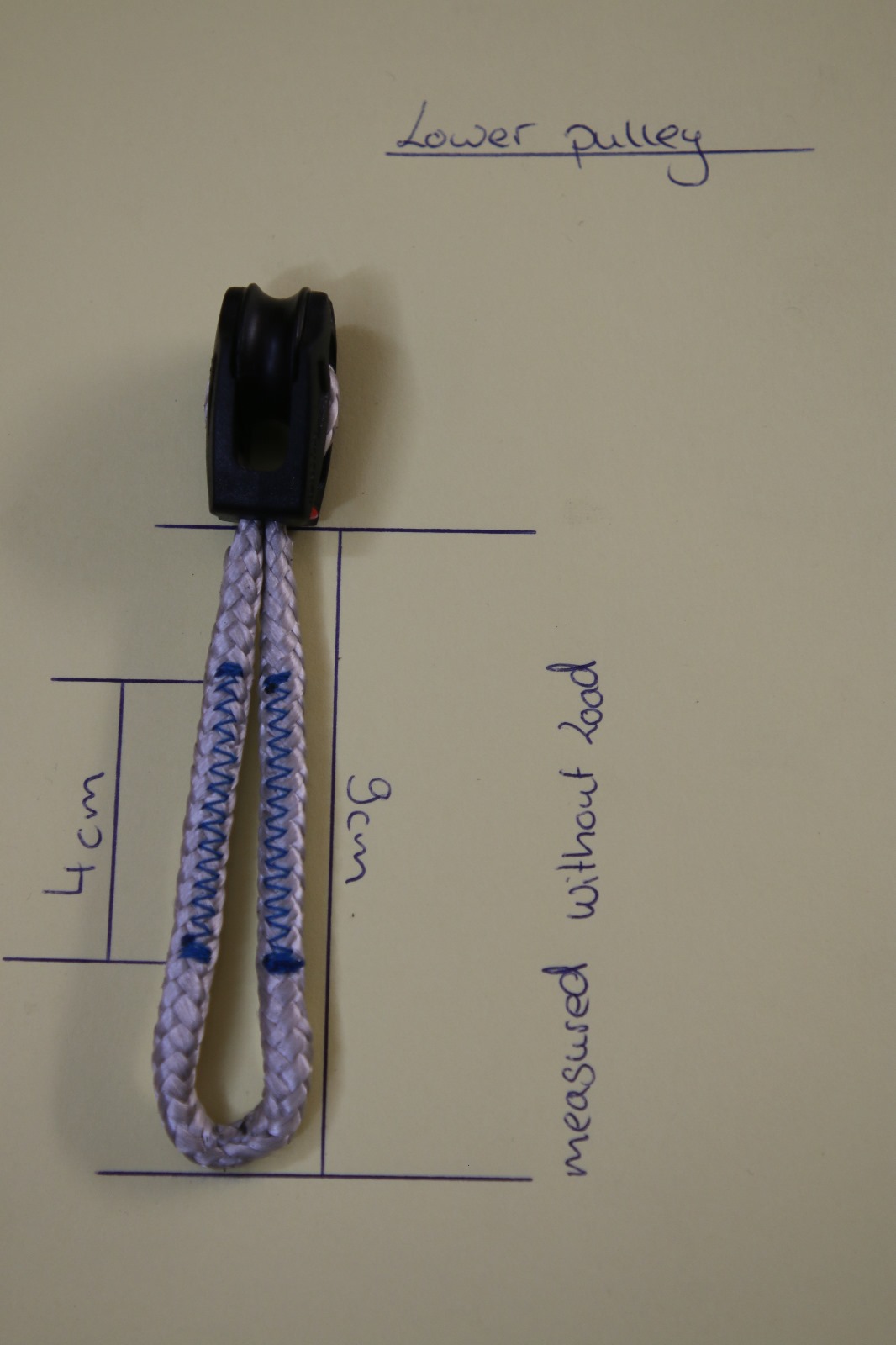

1 Lower Pulley
Sun, 28/9/25, 8:12
[Fitxers multimèdia omesos]
Sun, 28/9/25, 8:12
[Fitxers multimèdia omesos]
Sun, 28/9/25, 8:12

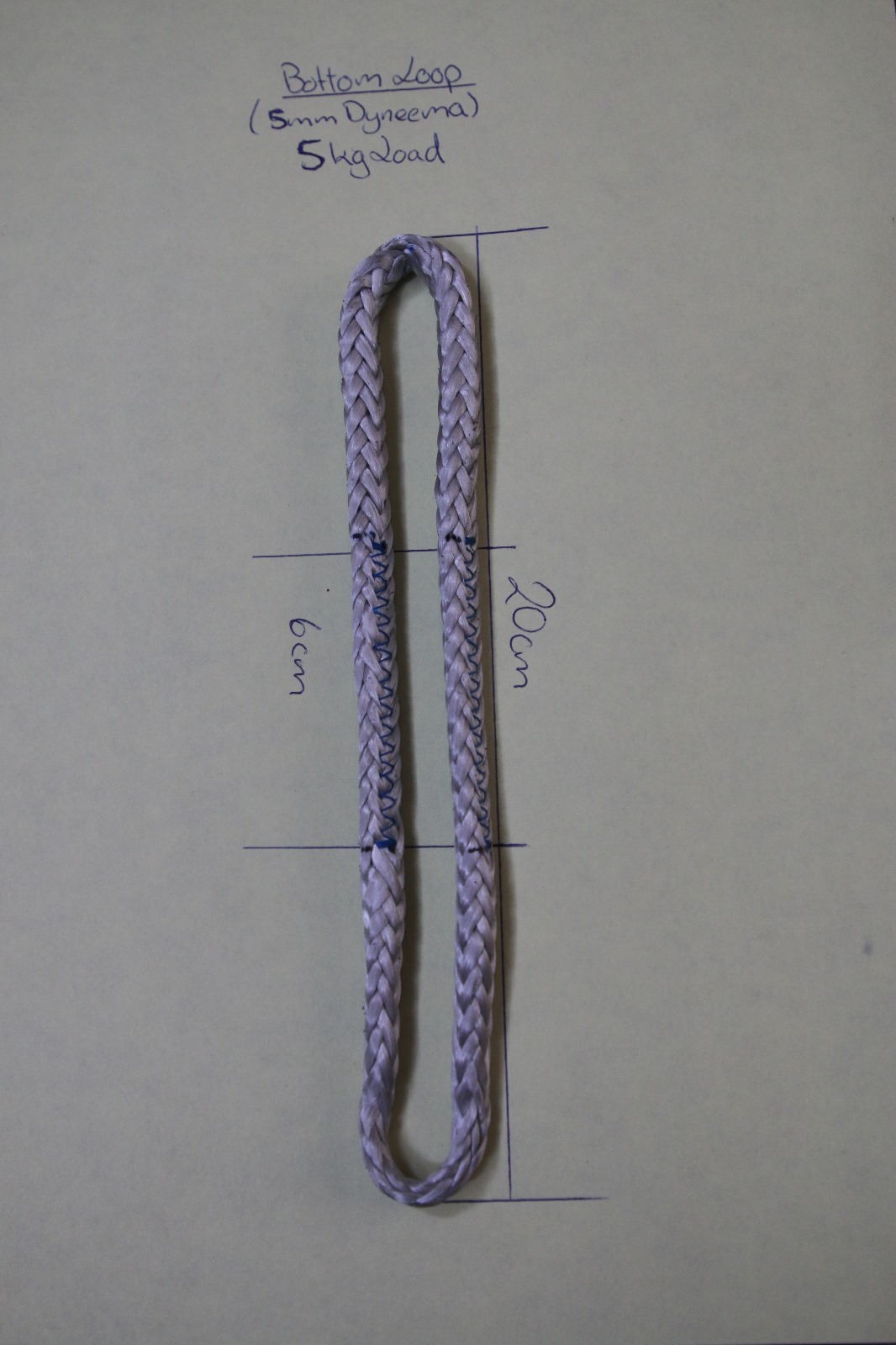

3 Bottom Loop - This is the Connection to the carabiner
Sun, 28/9/25, 8:15

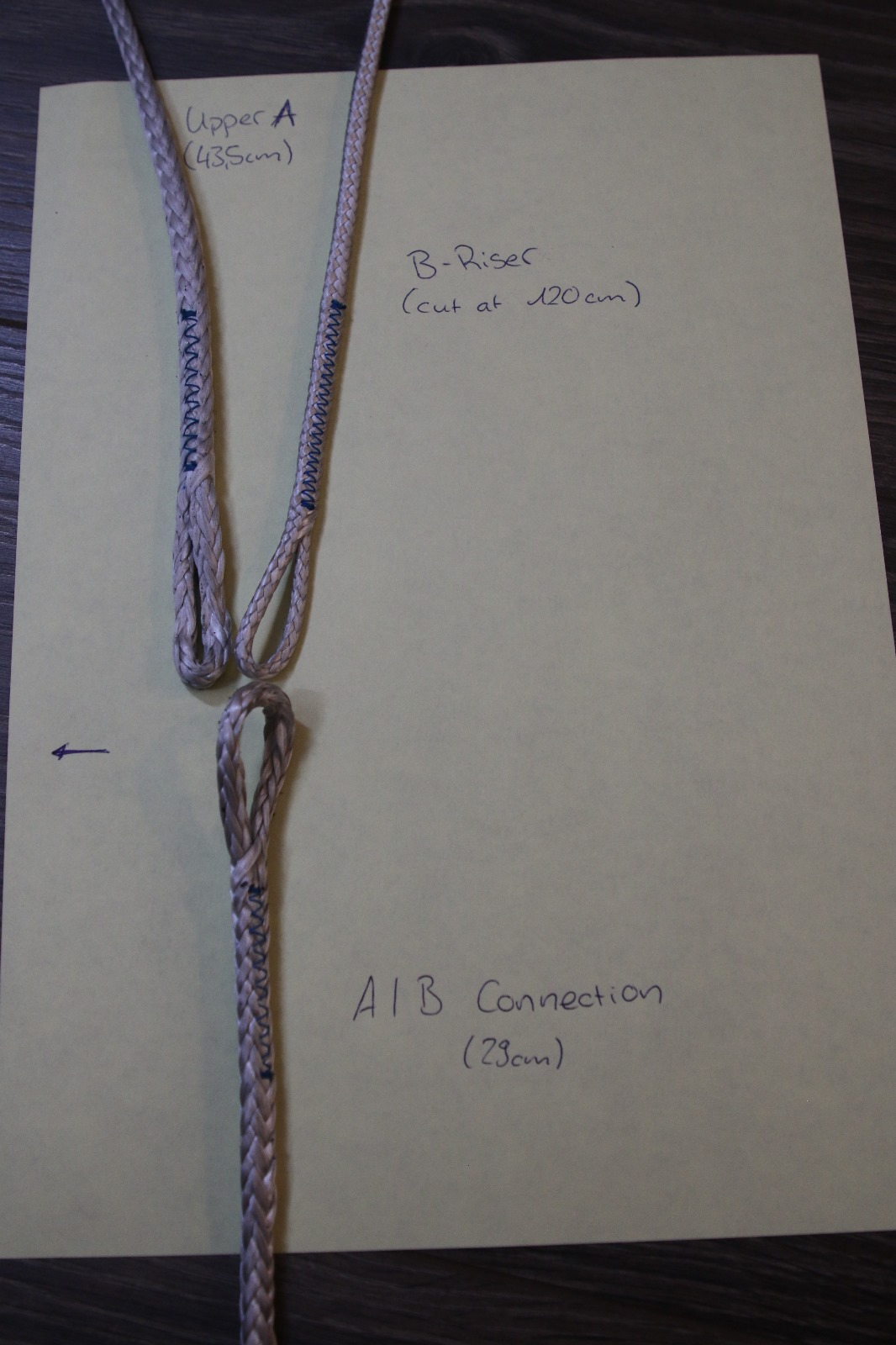

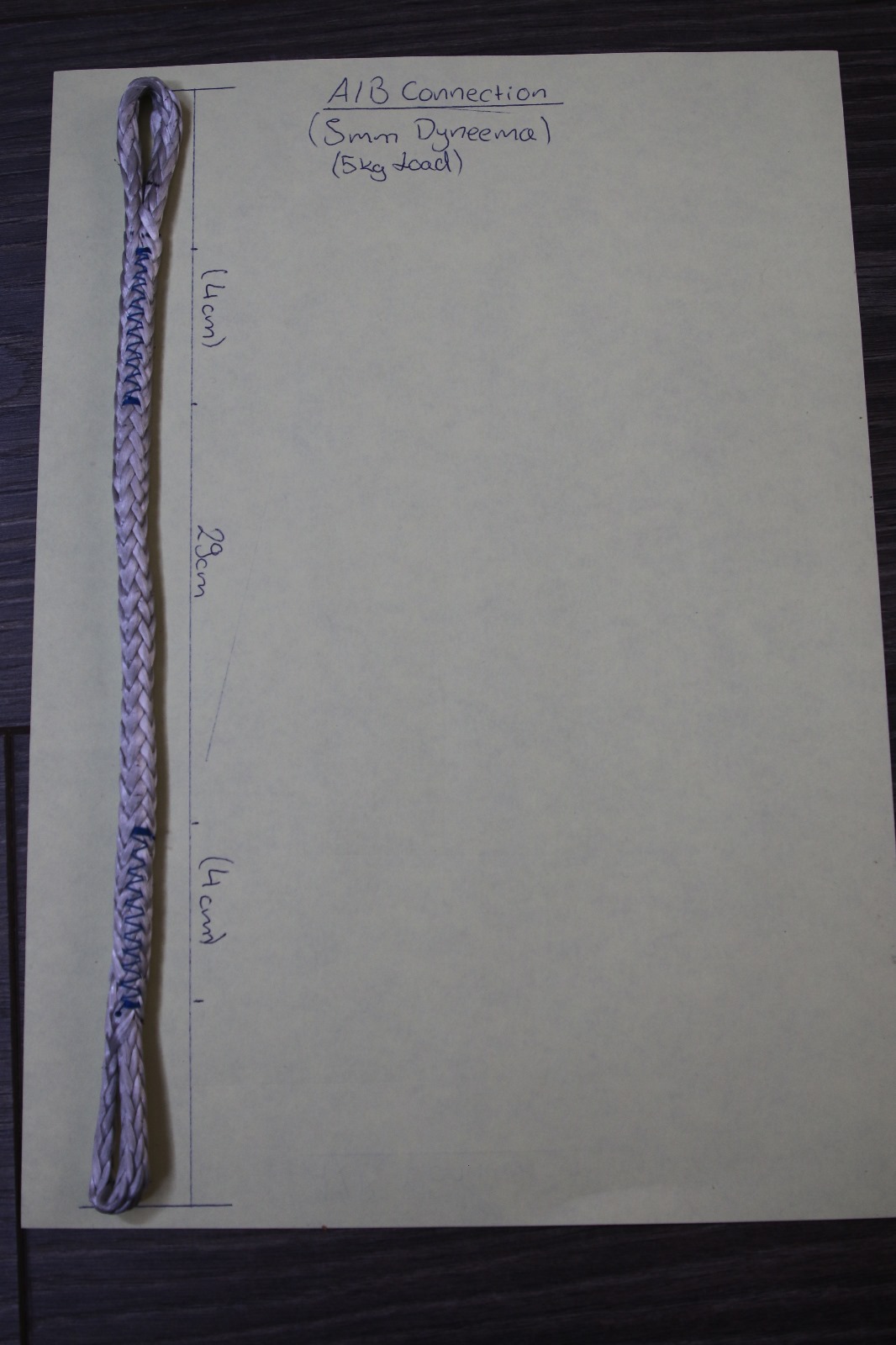

4 A/B Connection
Sun, 28/9/25, 8:16

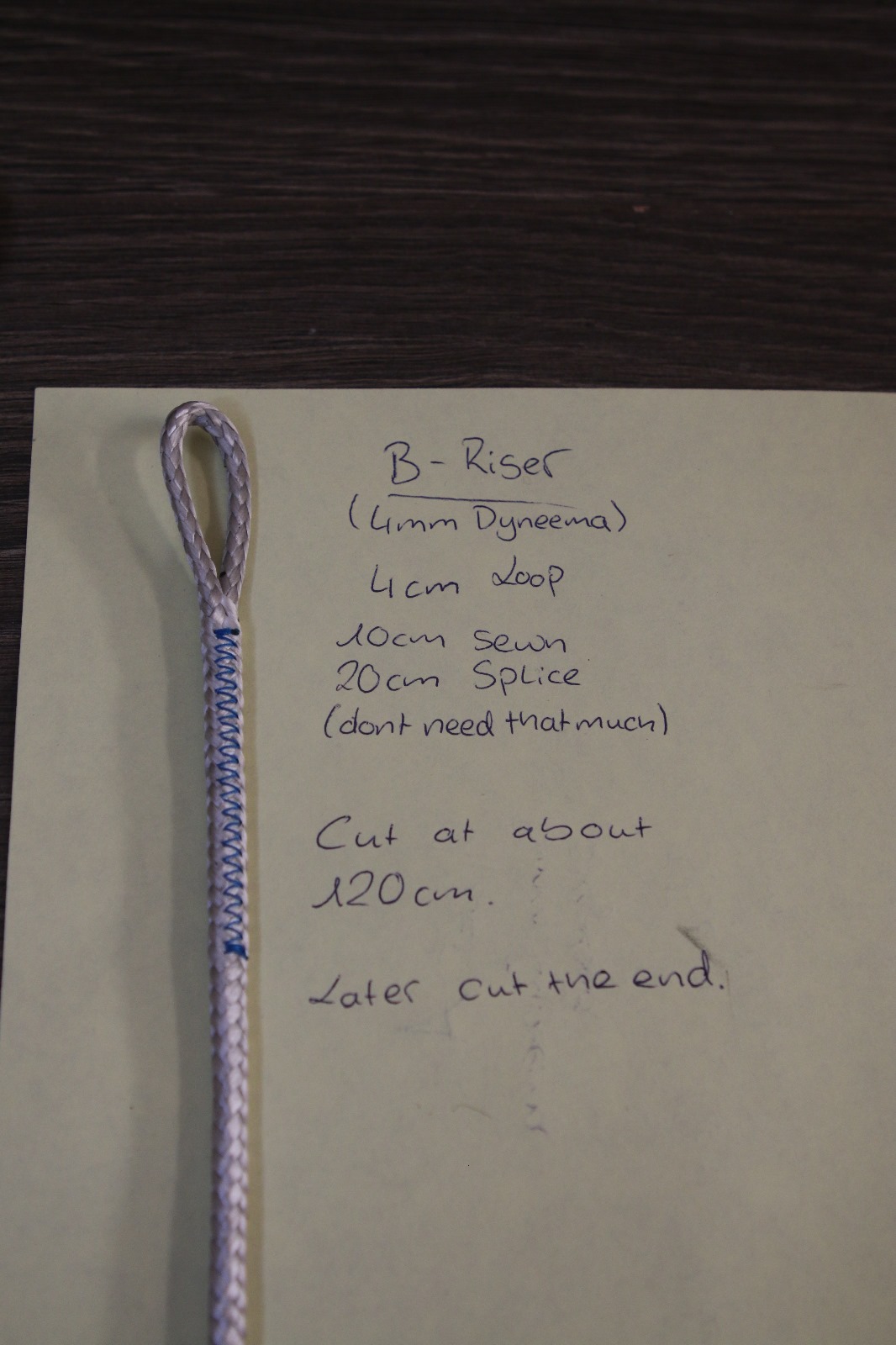

5 prepare your B-Riser
Sun, 28/9/25, 8:17

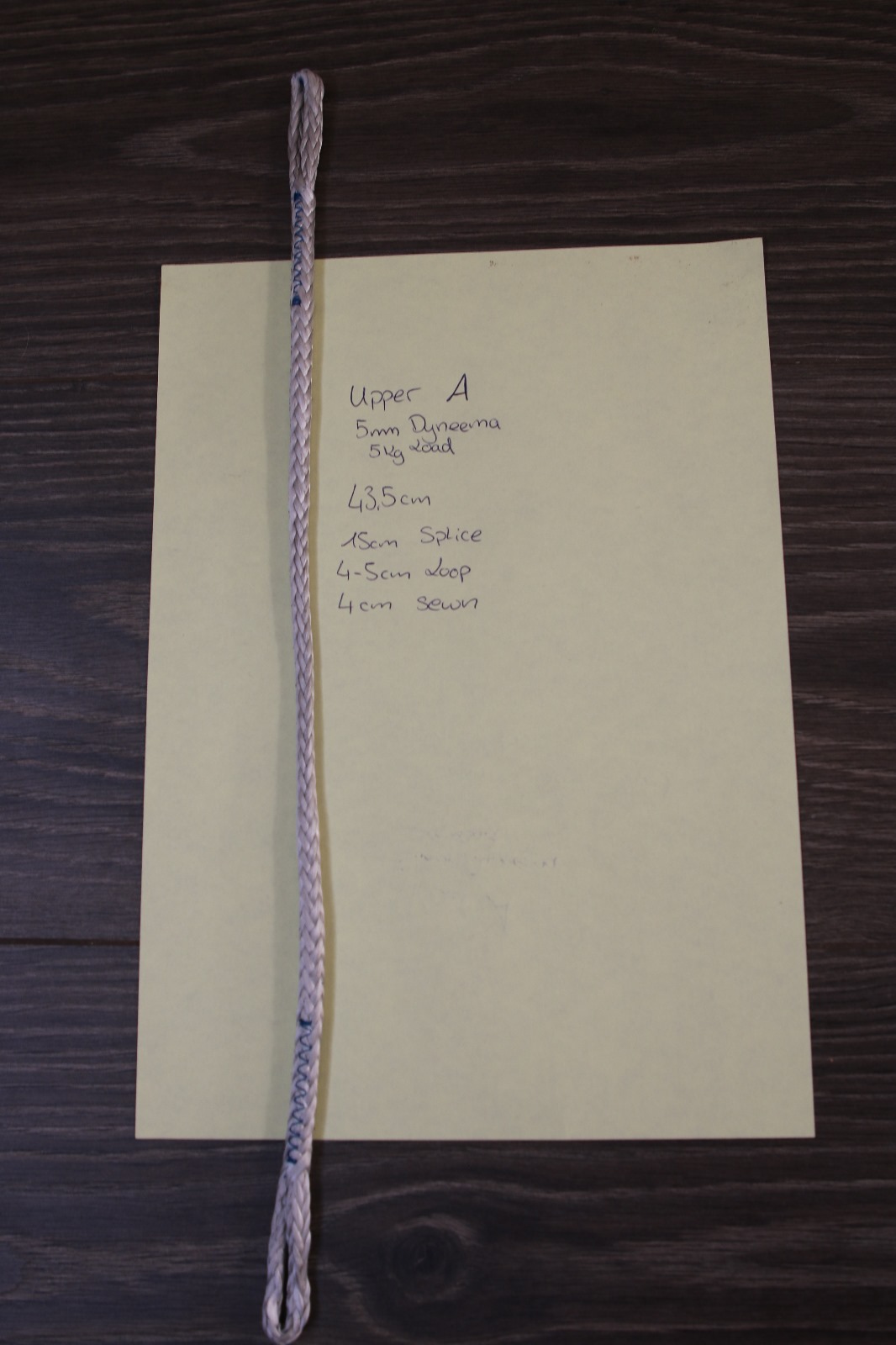

6 Upper A-Riser
Sun, 28/9/25, 8:18

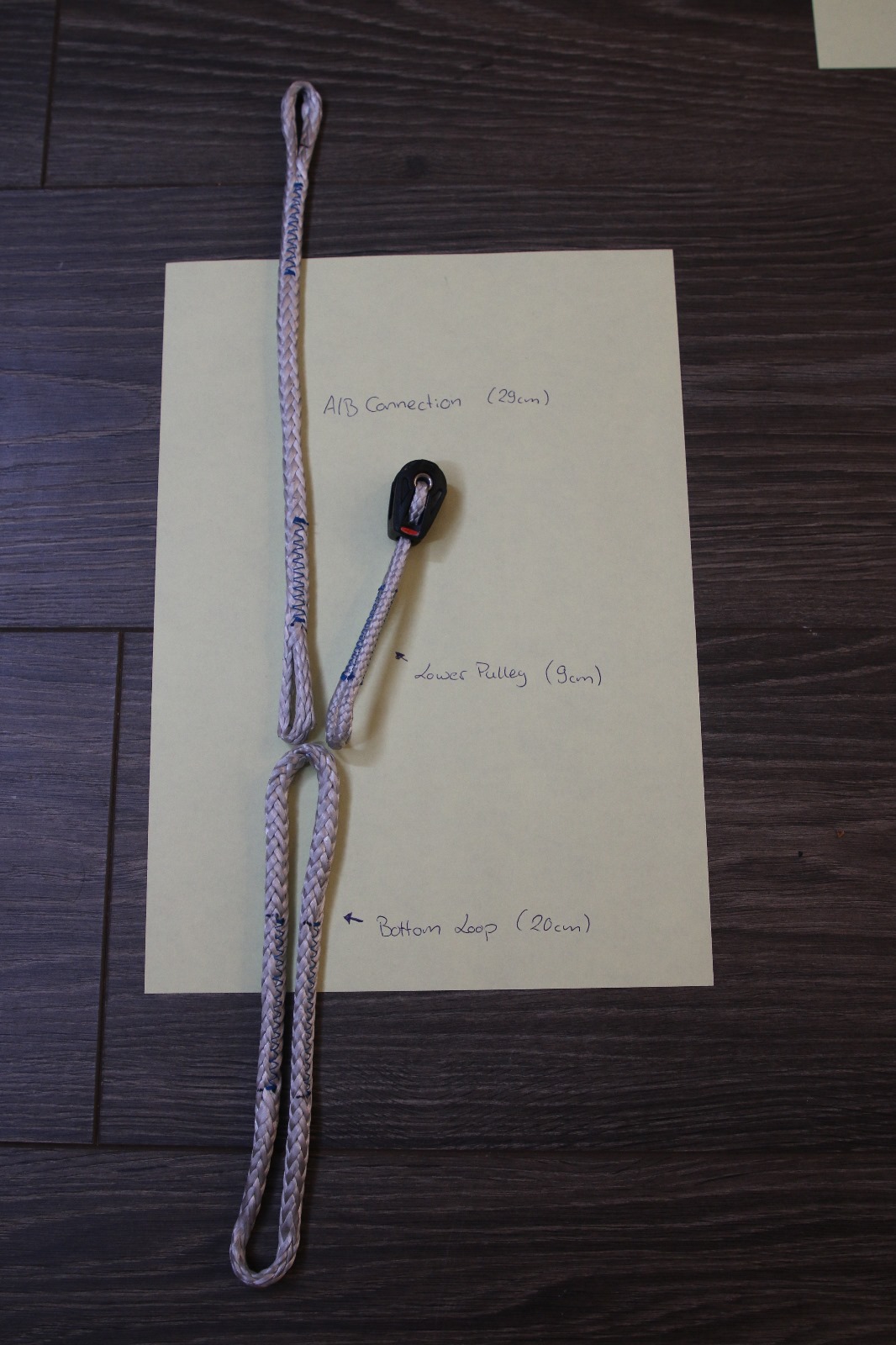

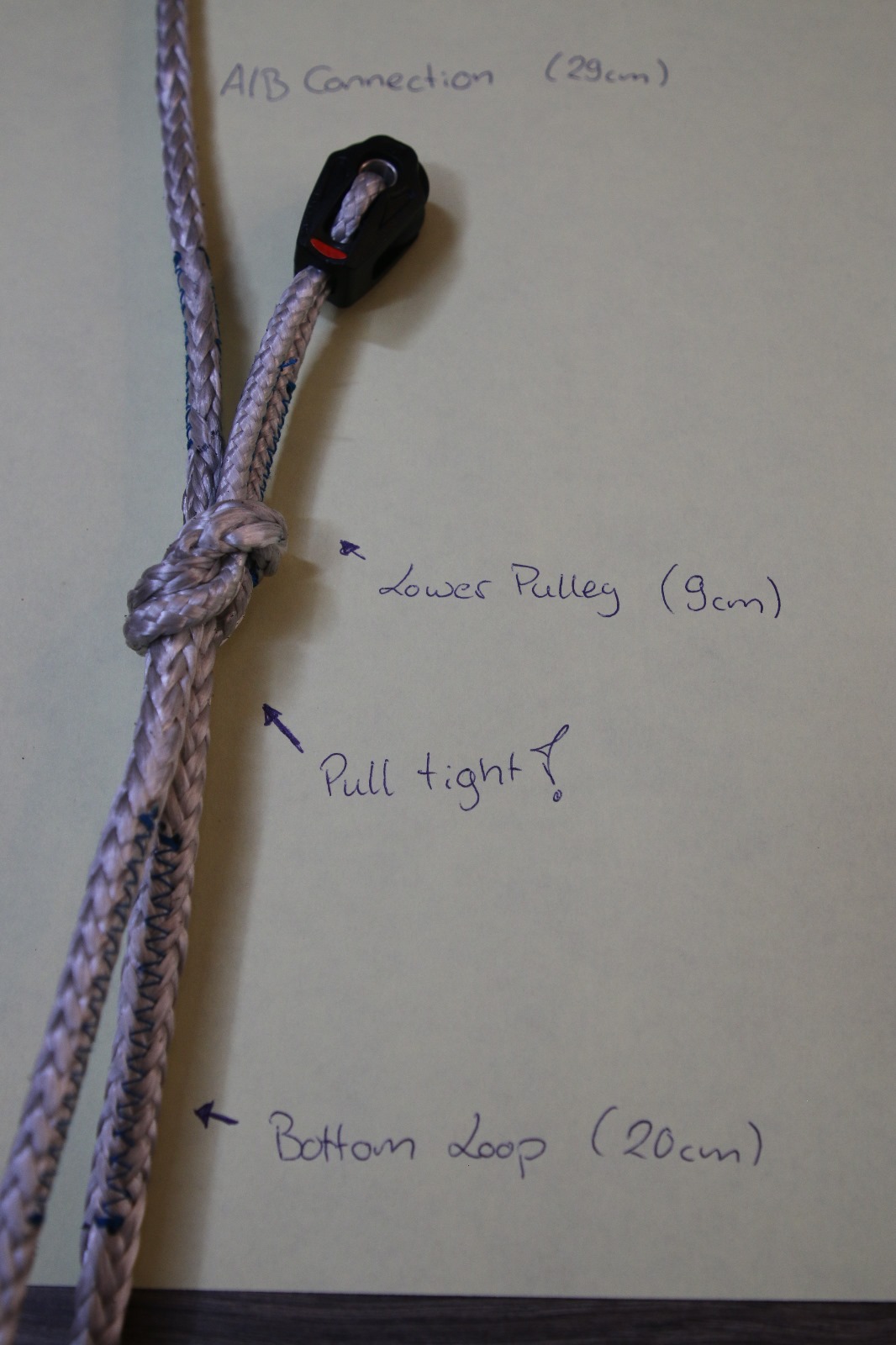

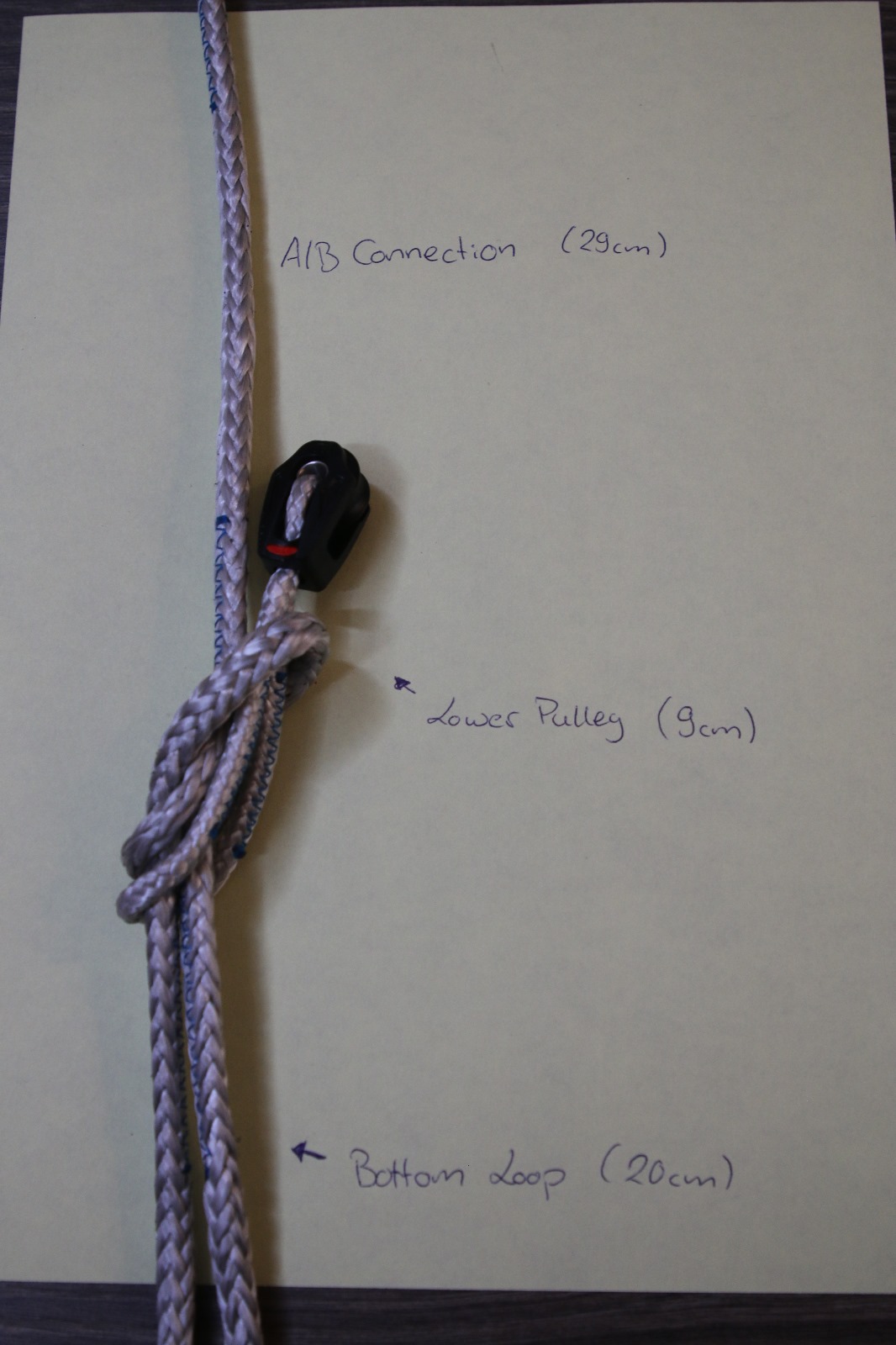

7 connecting the Bottom loop with the A/B Connection and the lower pulley
Sun, 28/9/25, 8:20

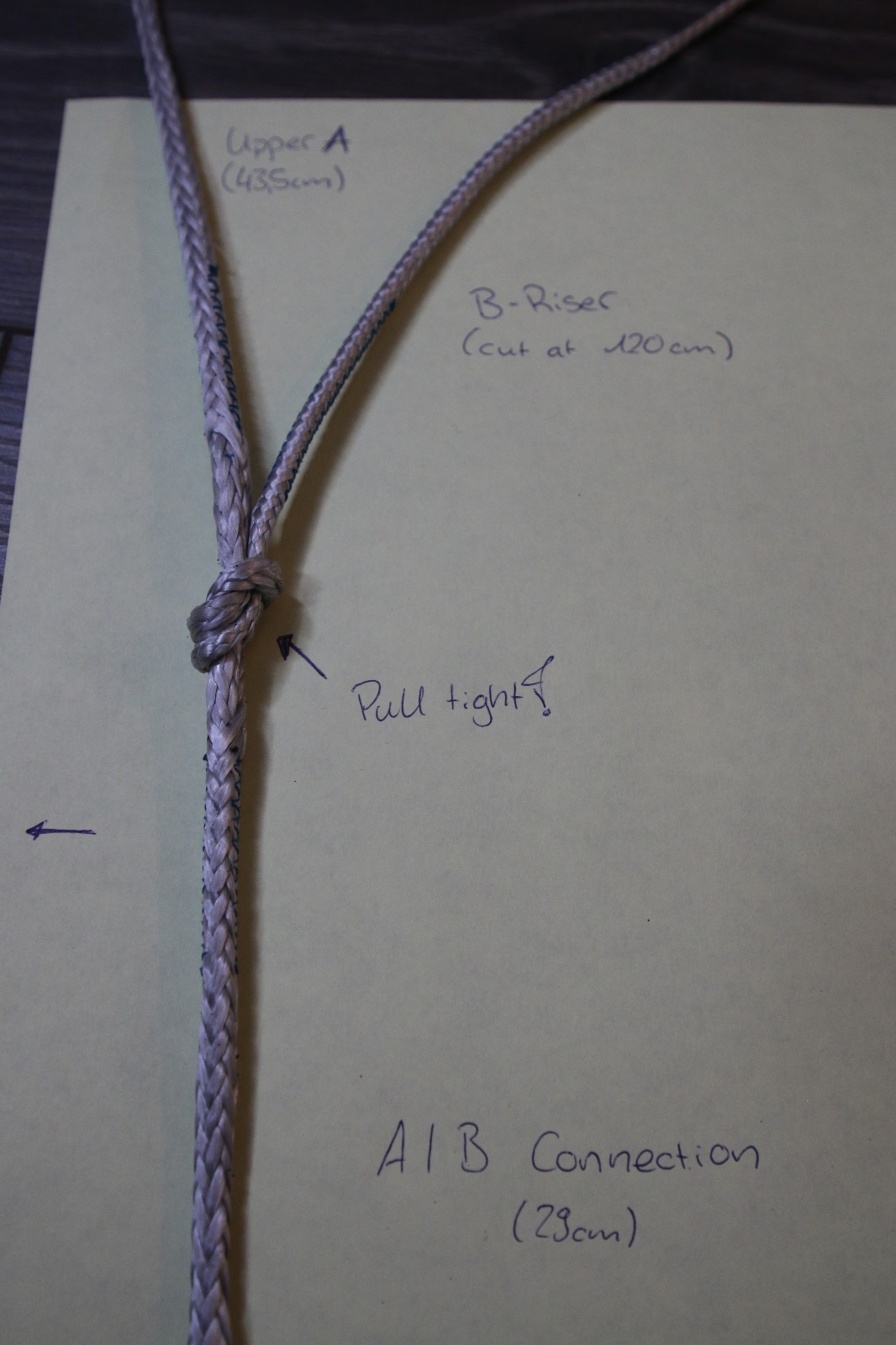

8 connect like this
Sun, 28/9/25, 8:20
9 Pull as tight as you can
Sun, 28/9/25, 8:20

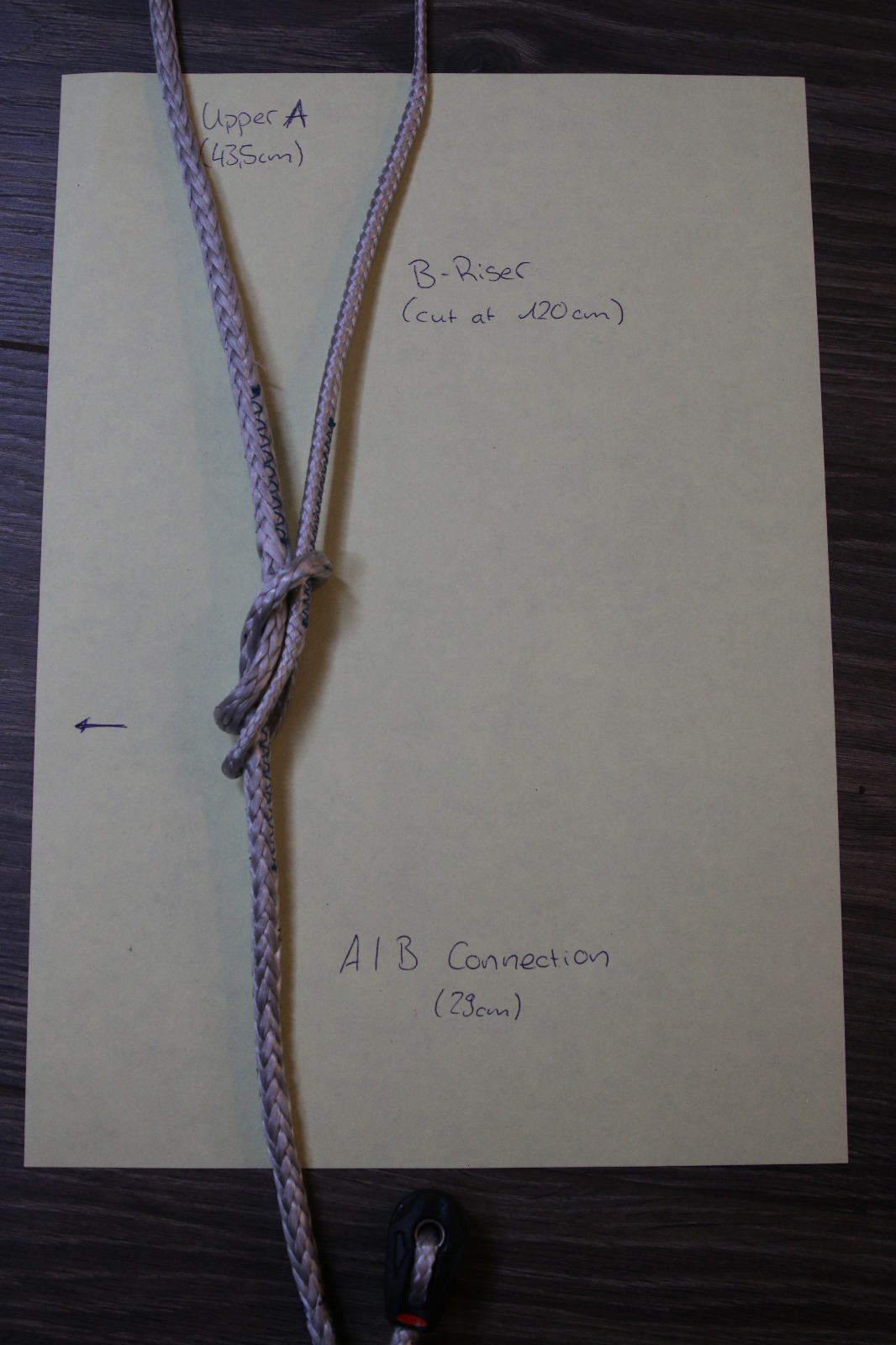

10. connect the A/B Connection with the upper-A and the B-riser
Sun, 28/9/25, 8:22
12 pull as tight as you can
Sun, 28/9/25, 8:22
11
Sun, 28/9/25, 8:22

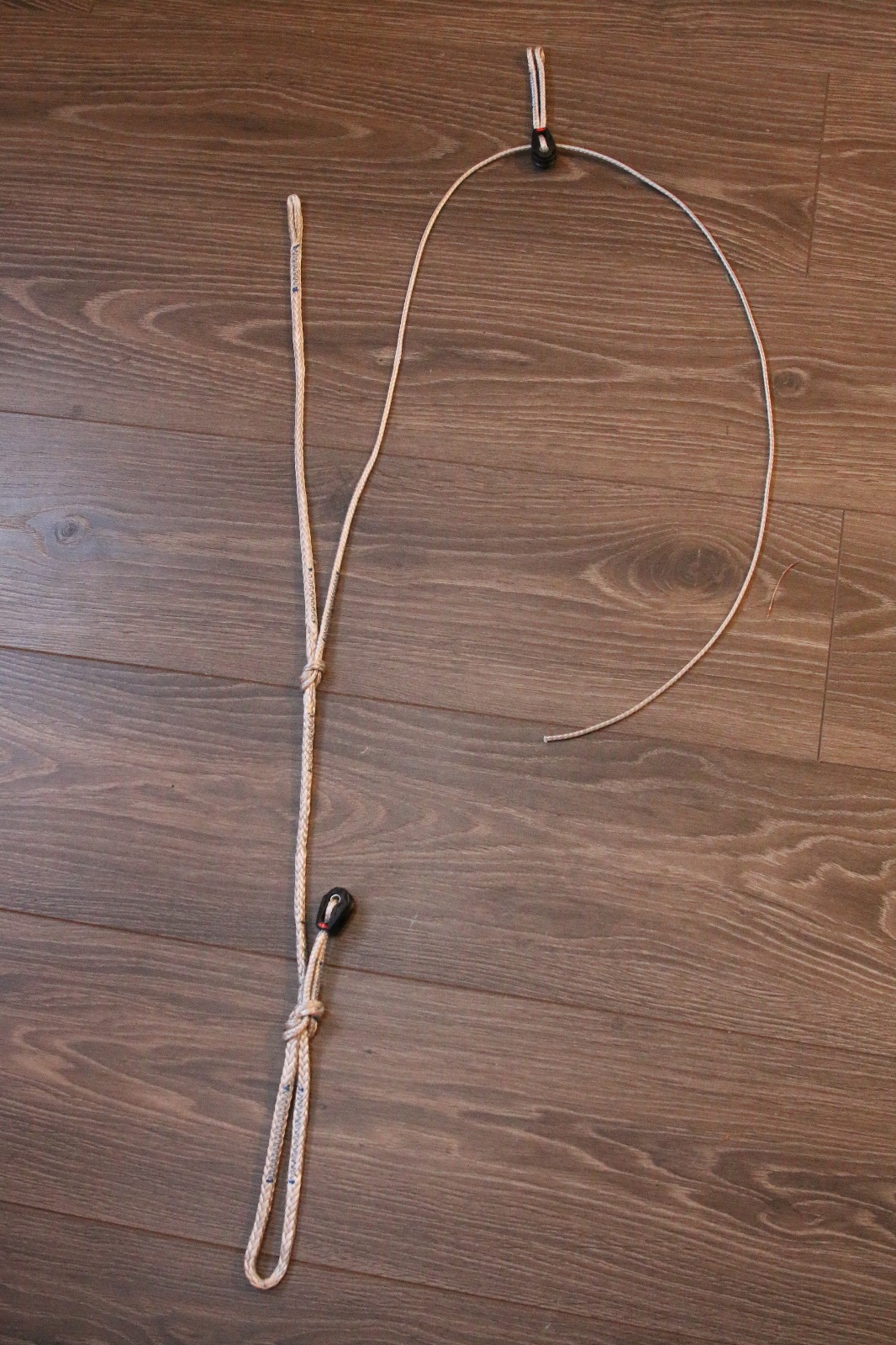

13 . now it should look like this, put the B-pulley on the B-riser
Sun, 28/9/25, 8:24

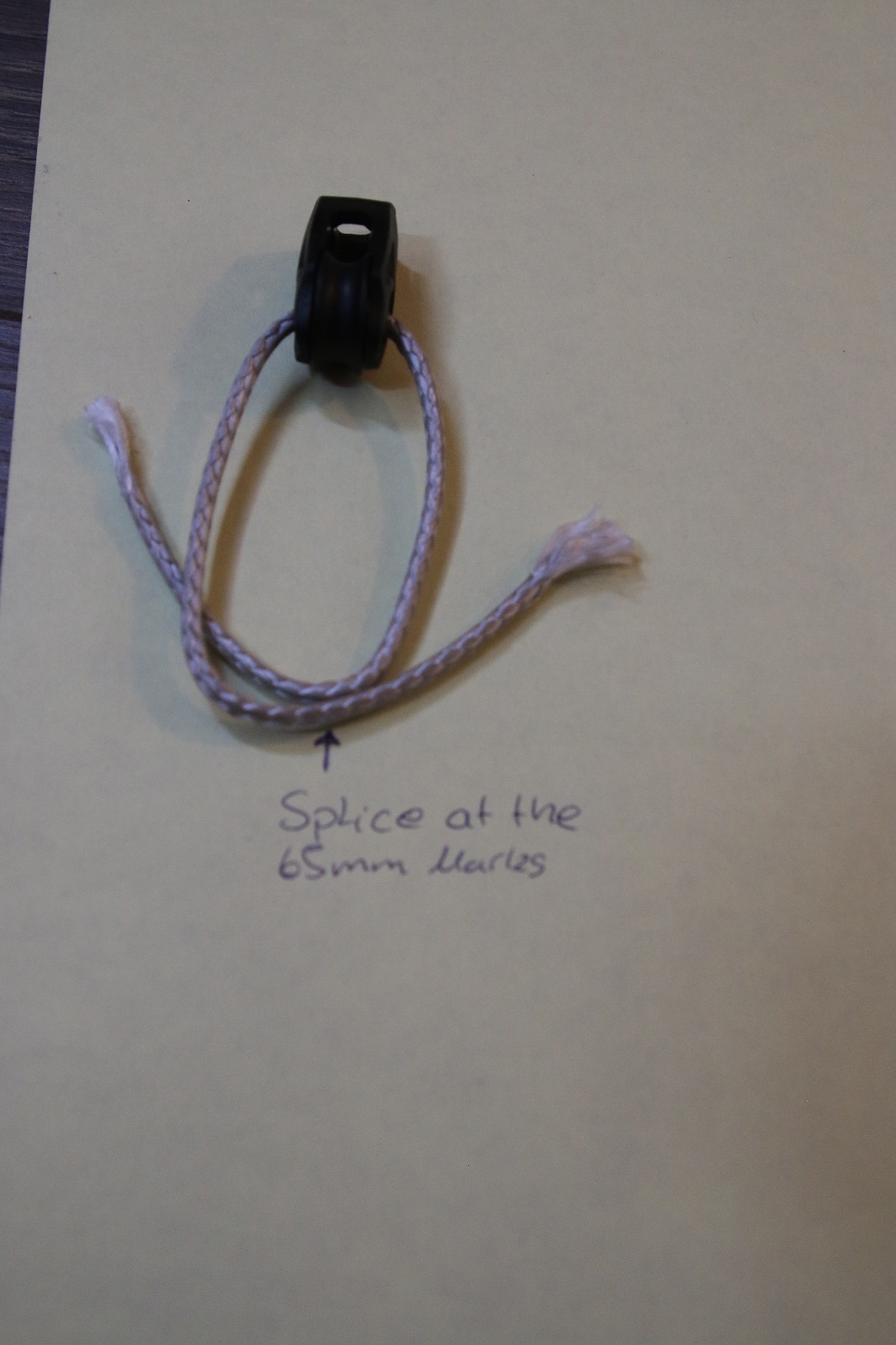

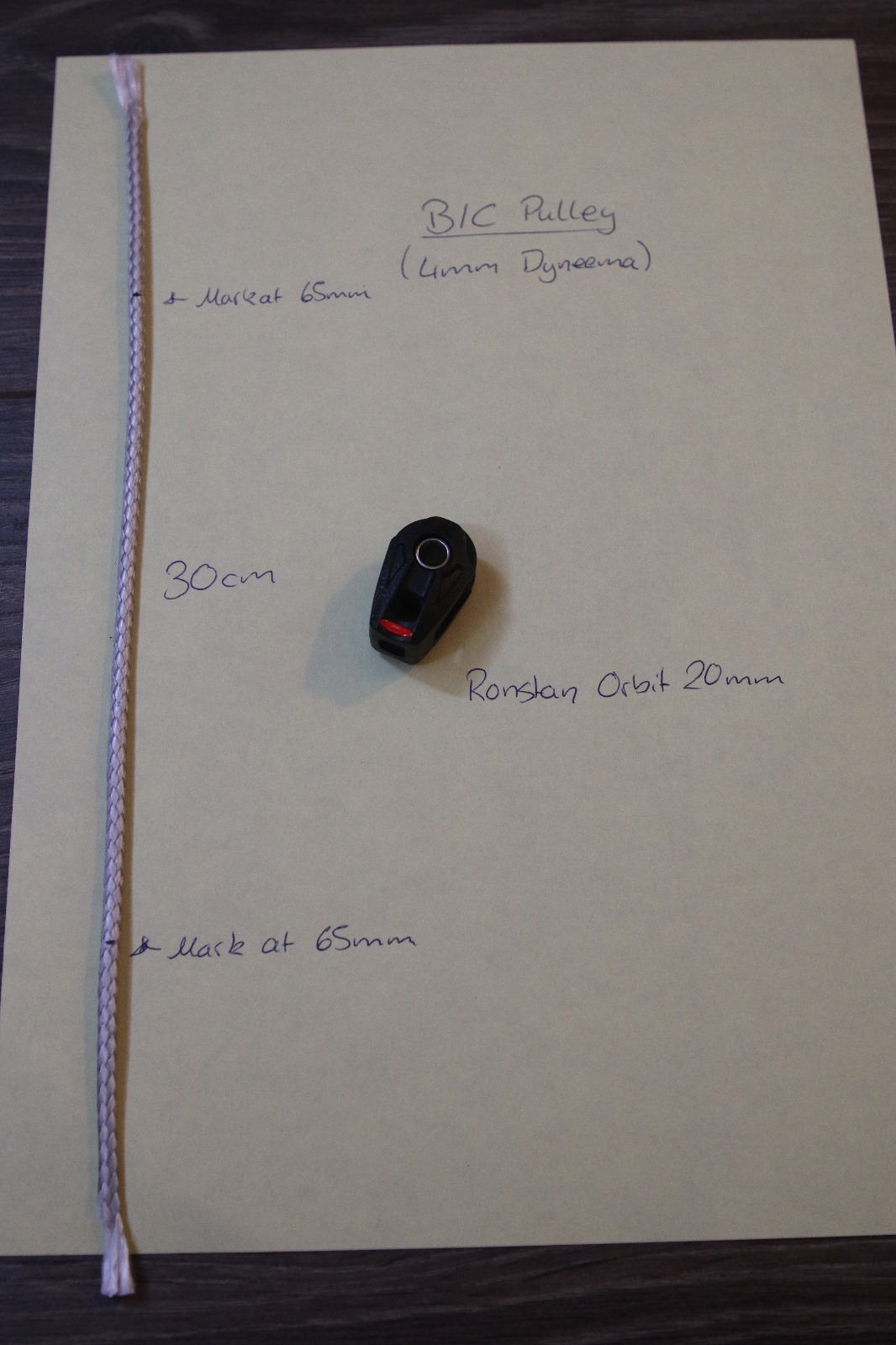

14 prepare the B/C pulley
Sun, 28/9/25, 8:25
15
Sun, 28/9/25, 8:25

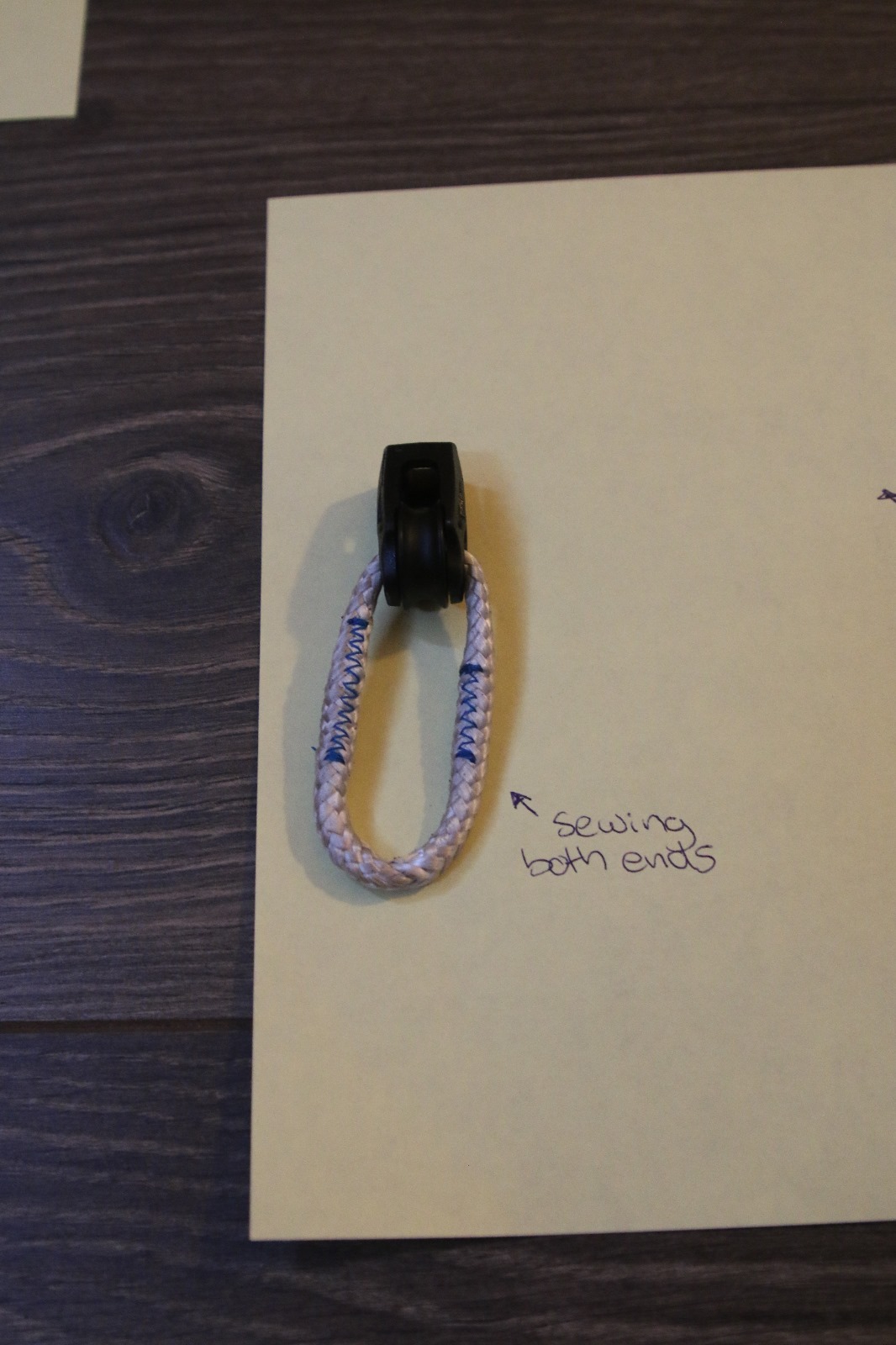

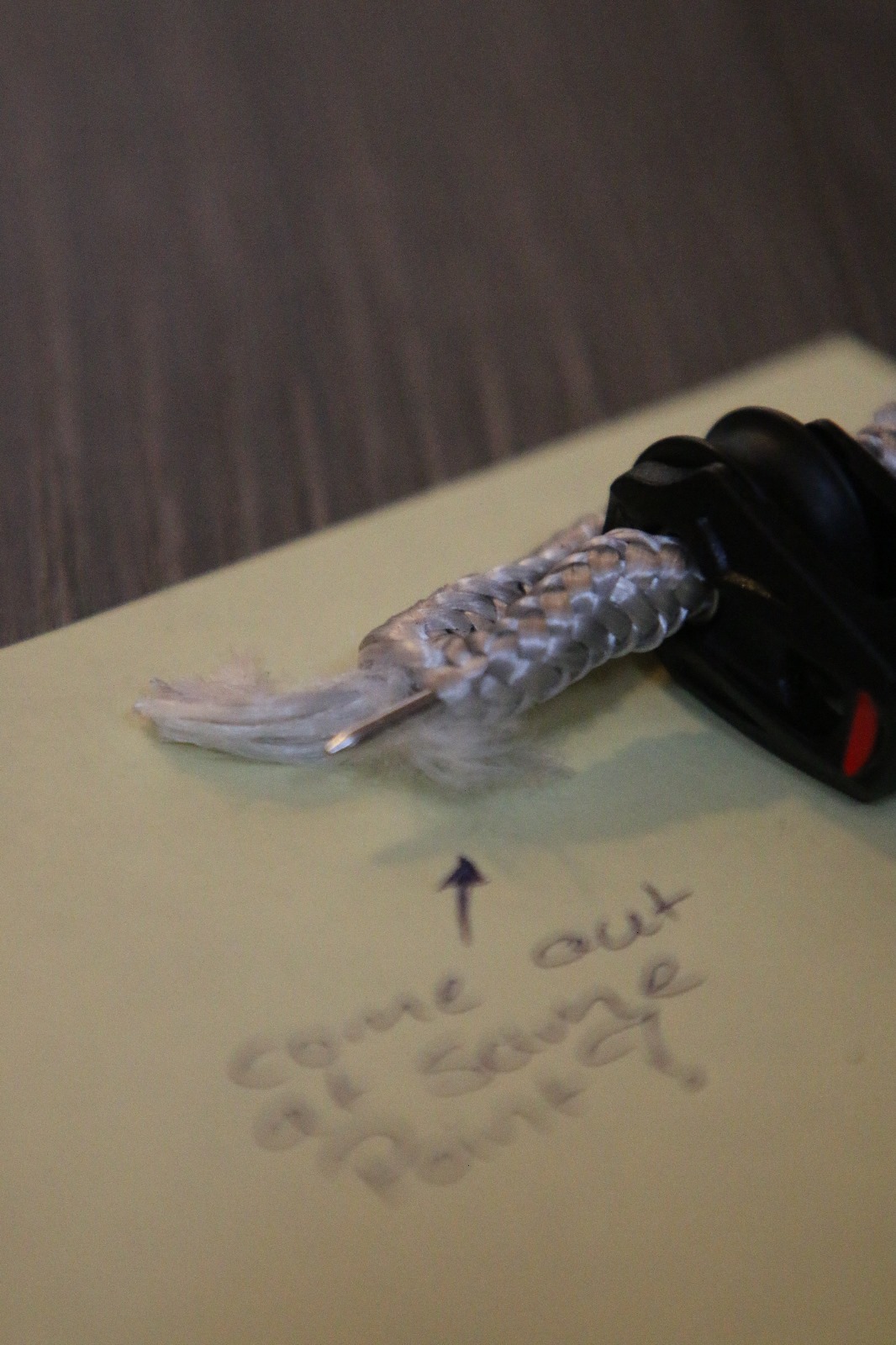

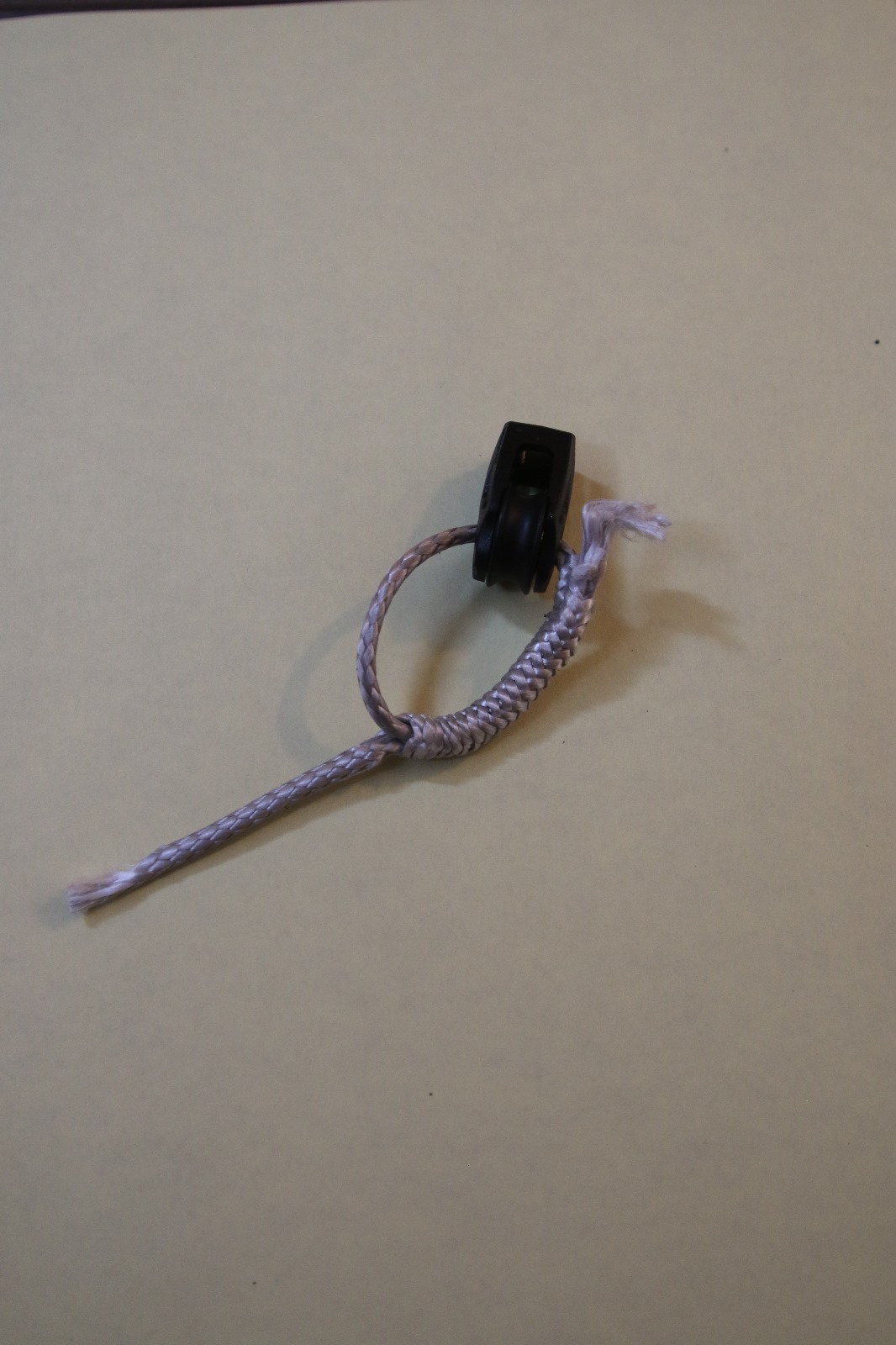

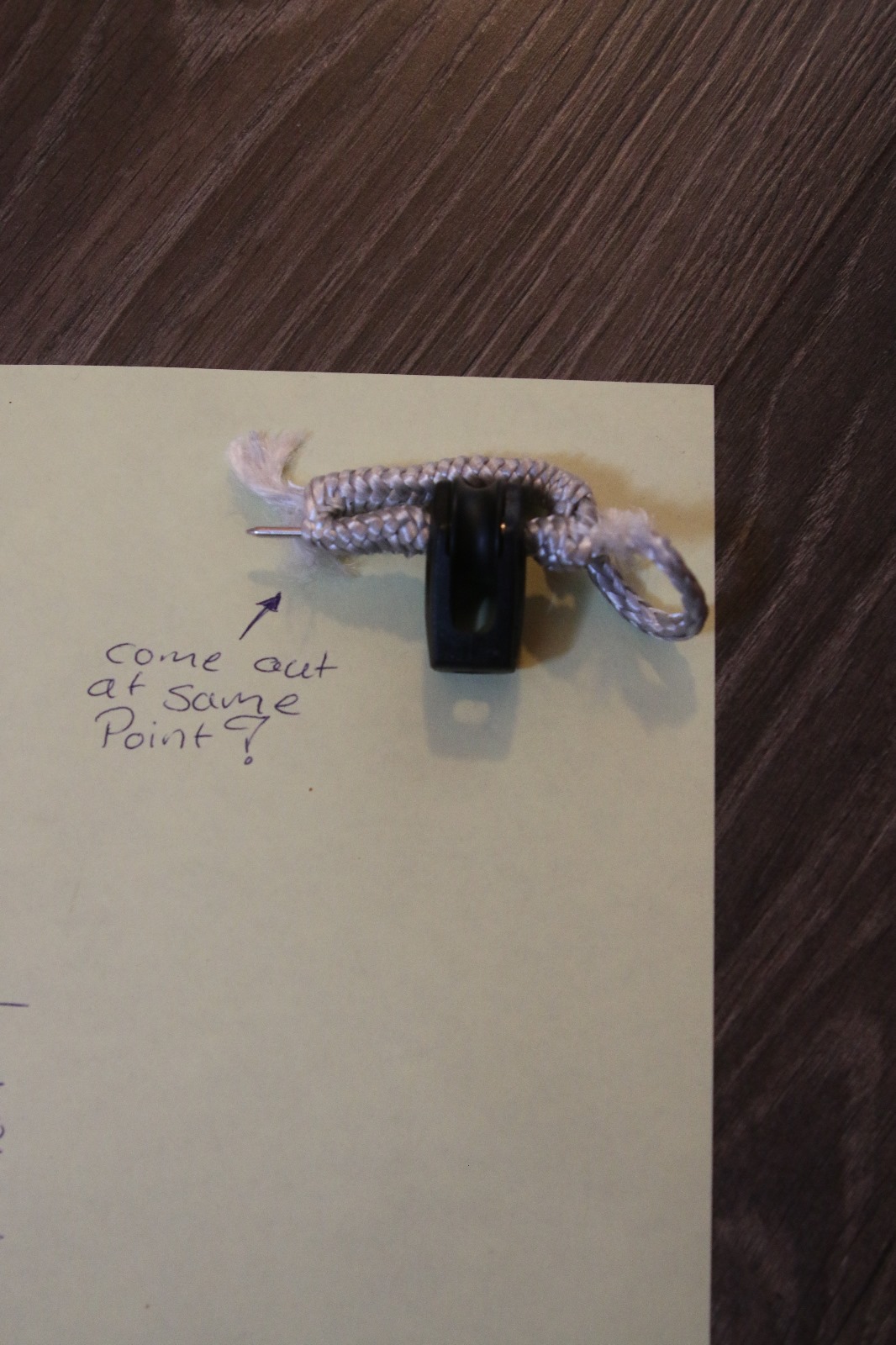

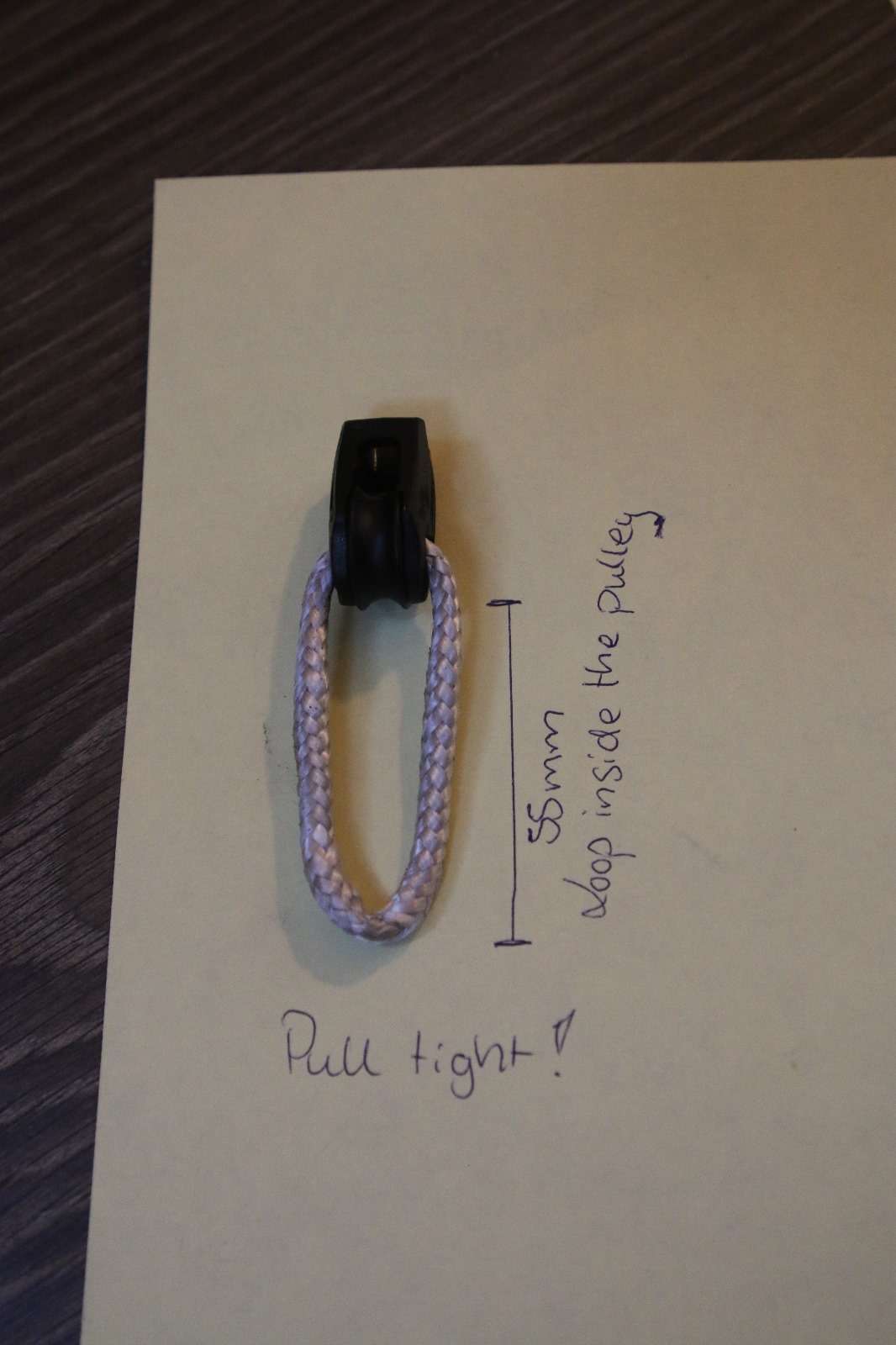

16 splice a loop inside the pulley
Sun, 28/9/25, 8:26
18
Sun, 28/9/25, 8:28
17
Sun, 28/9/25, 8:28
19
Sun, 28/9/25, 8:29
20
Sun, 28/9/25, 8:30

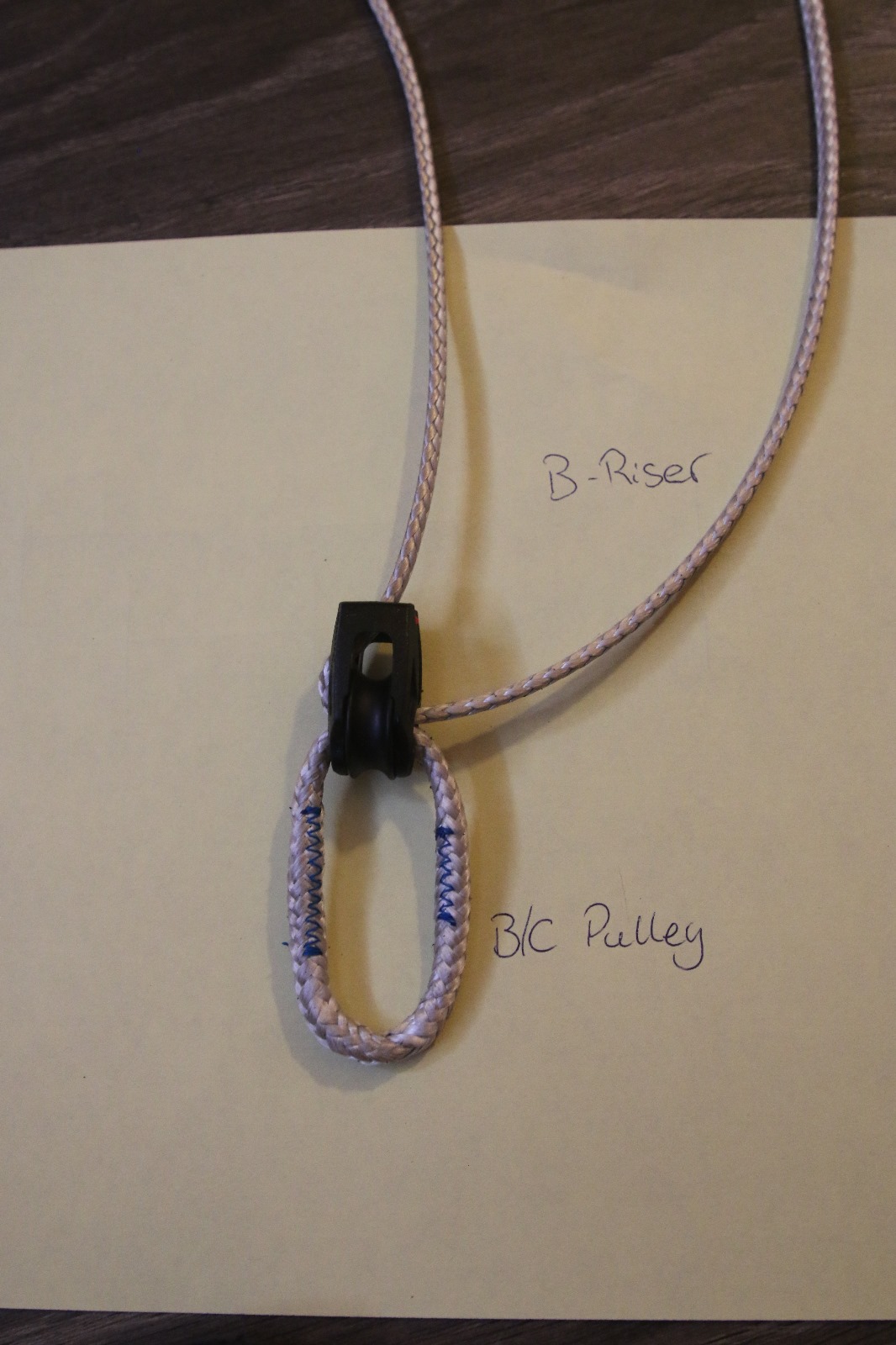

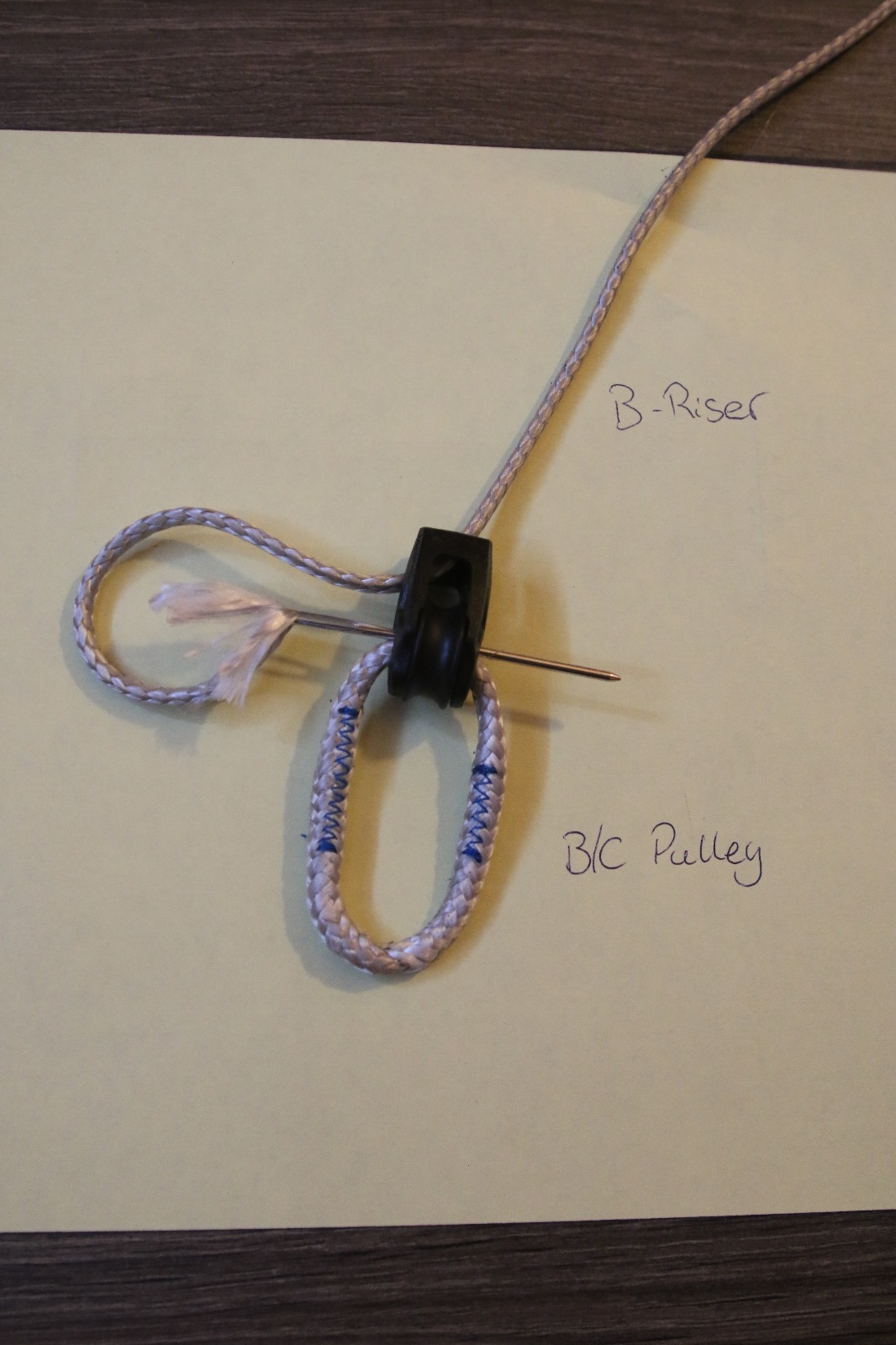

21 put the B/C pulley on the B-Riser
Sun, 28/9/25, 8:30
22
this part is really tight on 4mm dyneema but it fits when the loop is
3/4spliced. the thinner 1/4 (4mm) is inside the pulley.
Sun, 28/9/25, 8:32
23
Sun, 28/9/25, 8:33

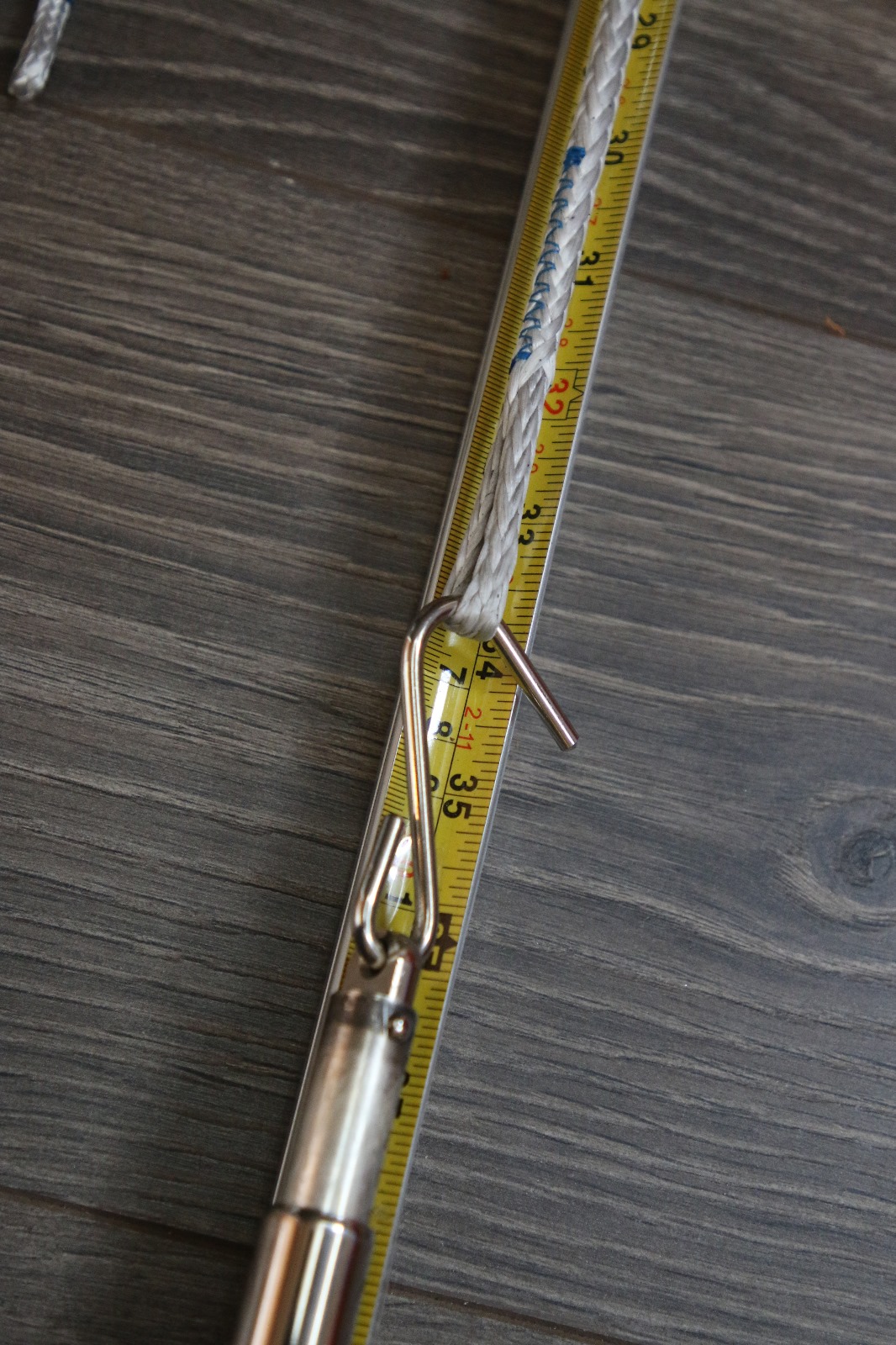

24 now measure the A-Riser (5kg load) with 5mm Dyneema ist around 86,5cm
Sun, 28/9/25, 8:37

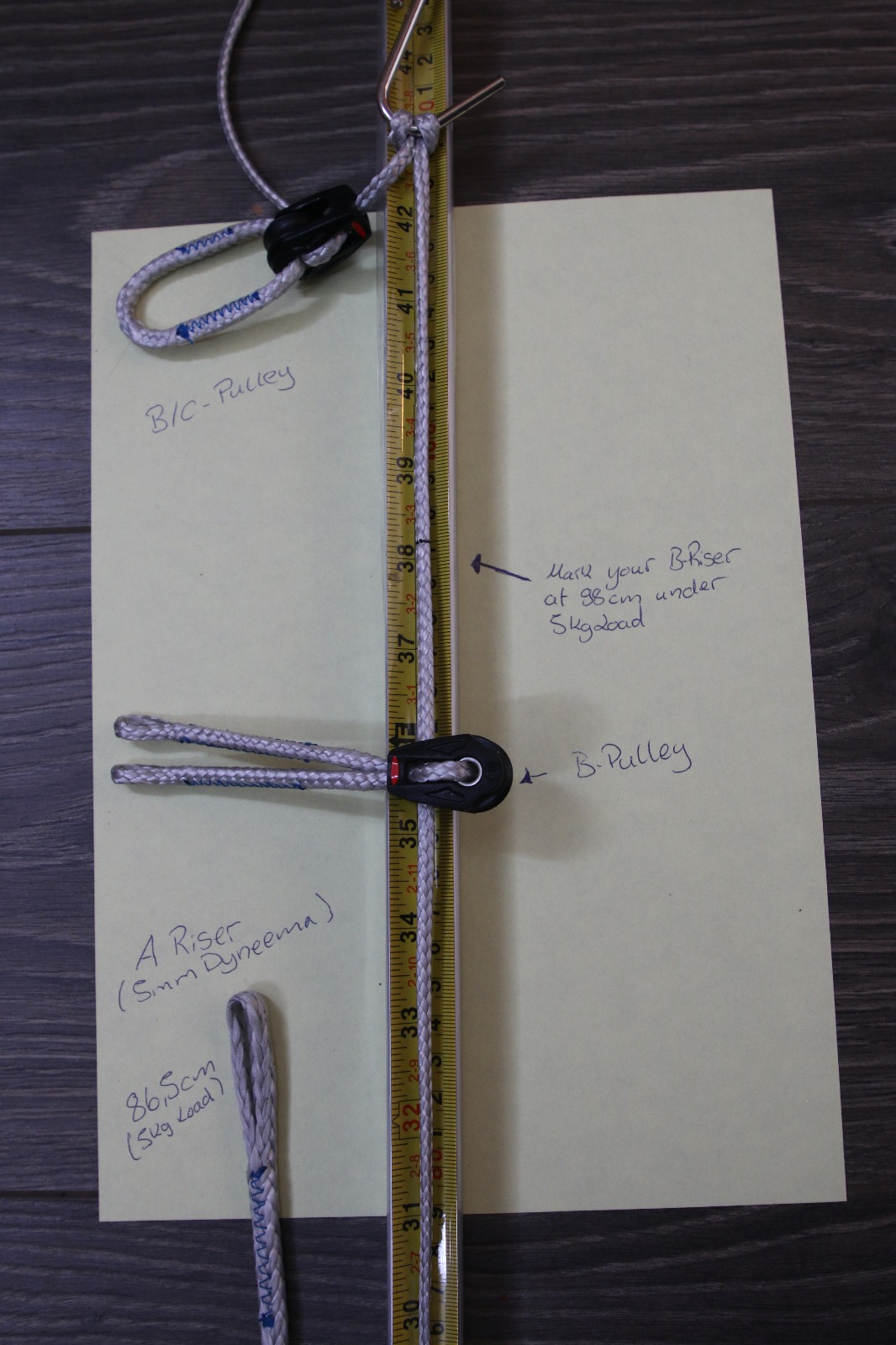

25 now load the B-Riser with 5kg load and mark it at 98cm
Sun, 28/9/25, 8:39

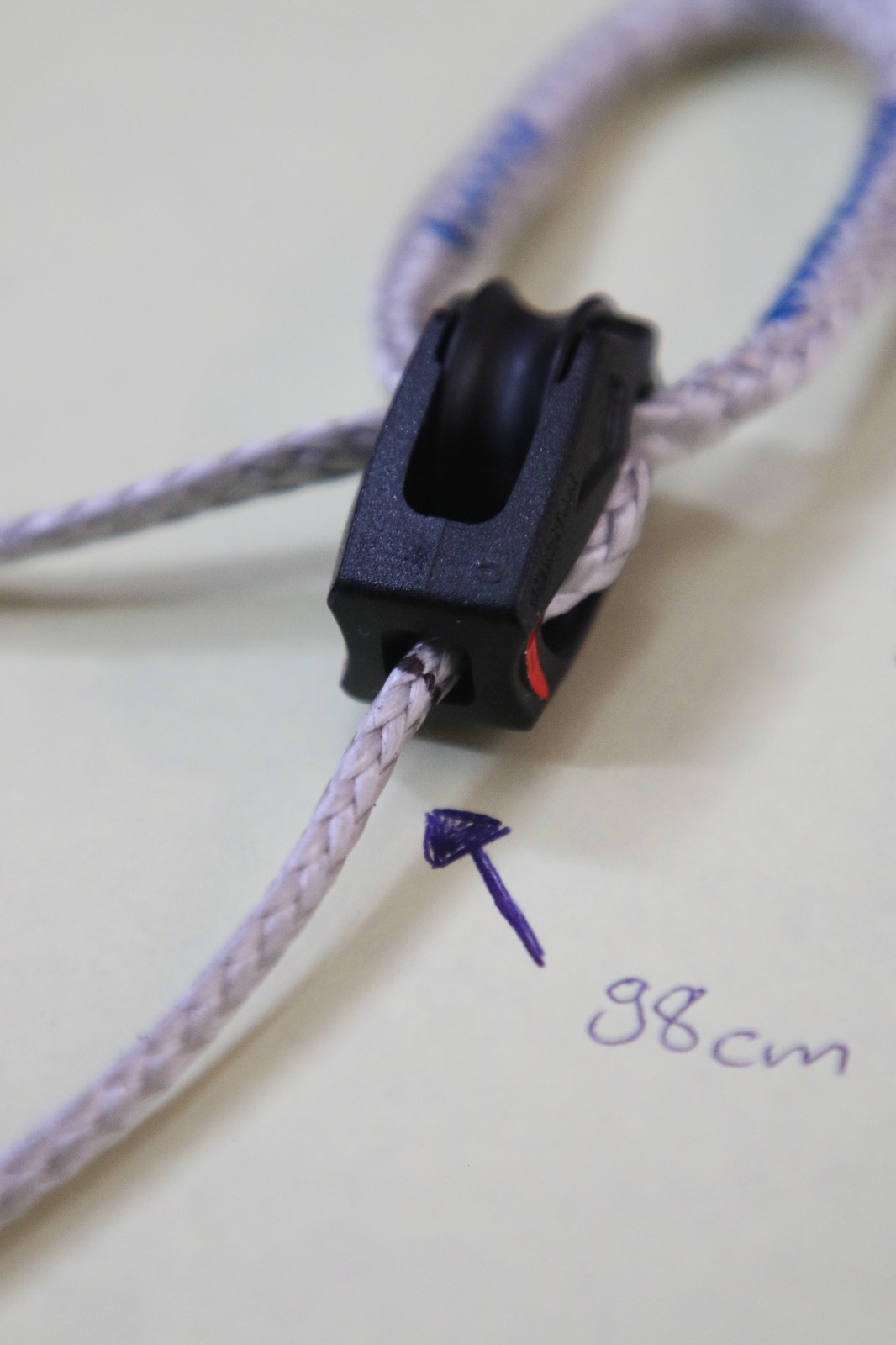

26 pull your B/C pulley to this 98cm mark
Sun, 28/9/25, 8:40

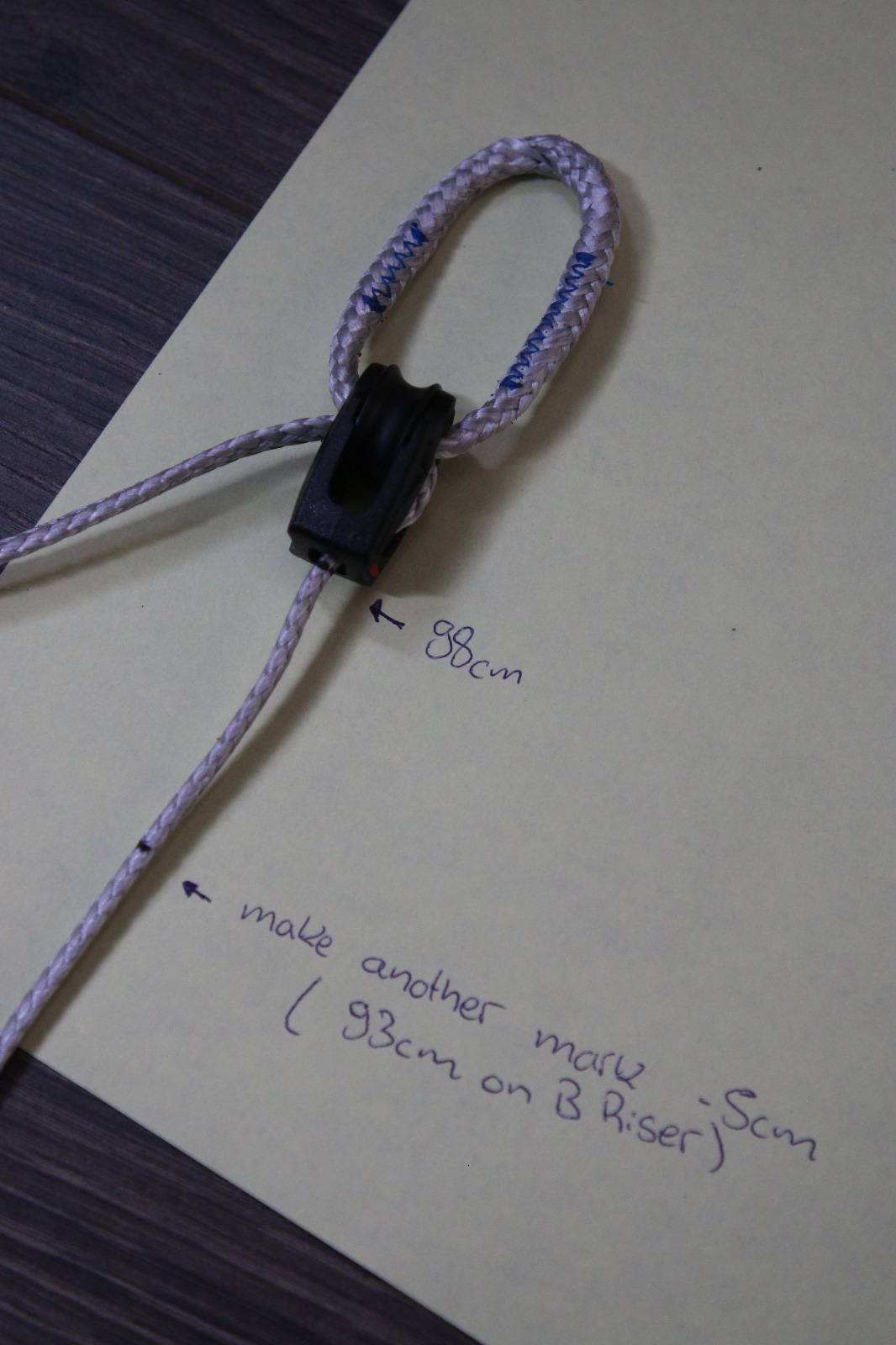

27 make another mark 5cm away from the 98cm mark
Sun, 28/9/25, 8:41

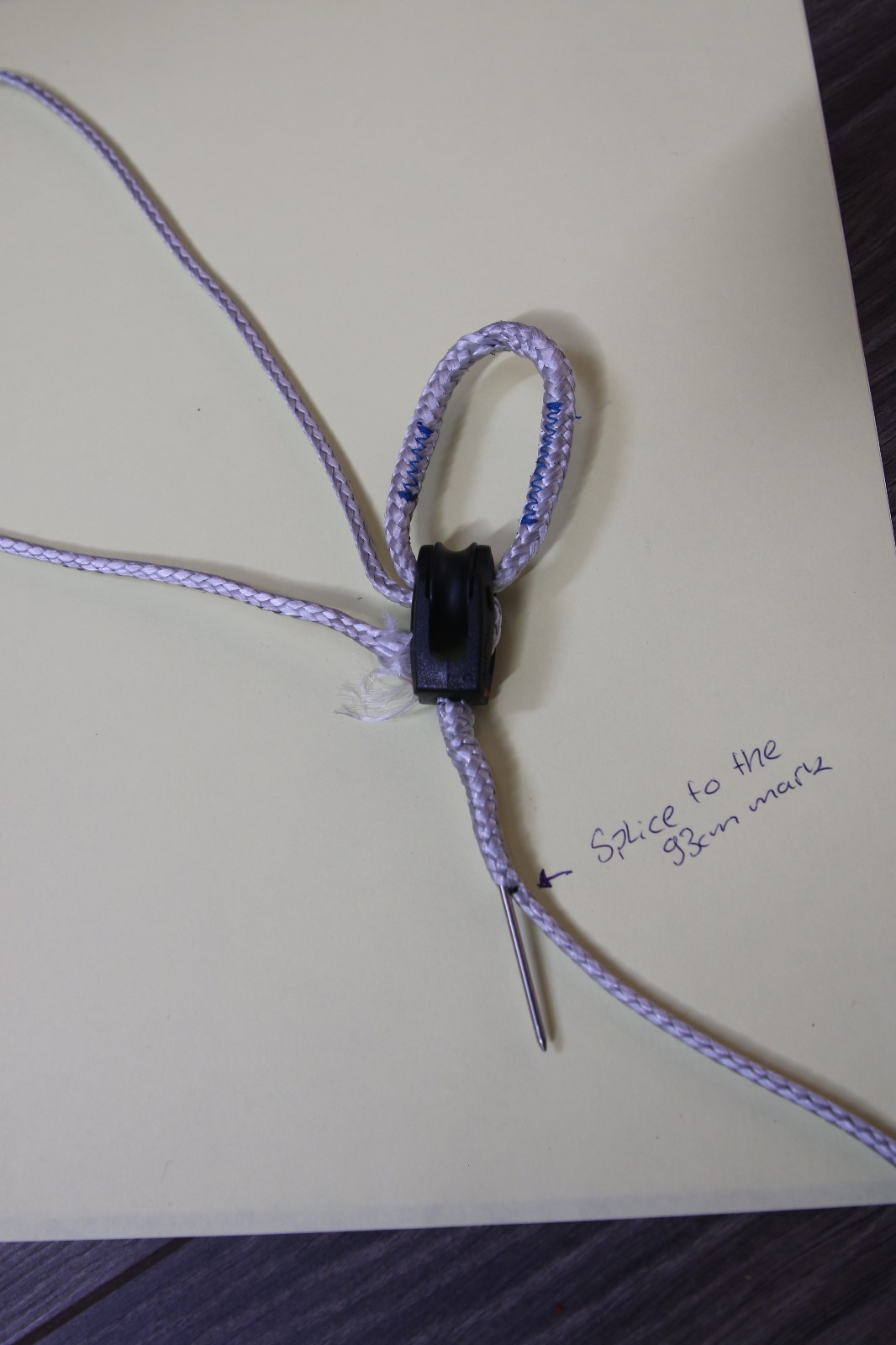

28 splice the rest of the B-Riser from the 98cm mark to the 93cm mark , this will create the C-Riser
Sun, 28/9/25, 8:43
29

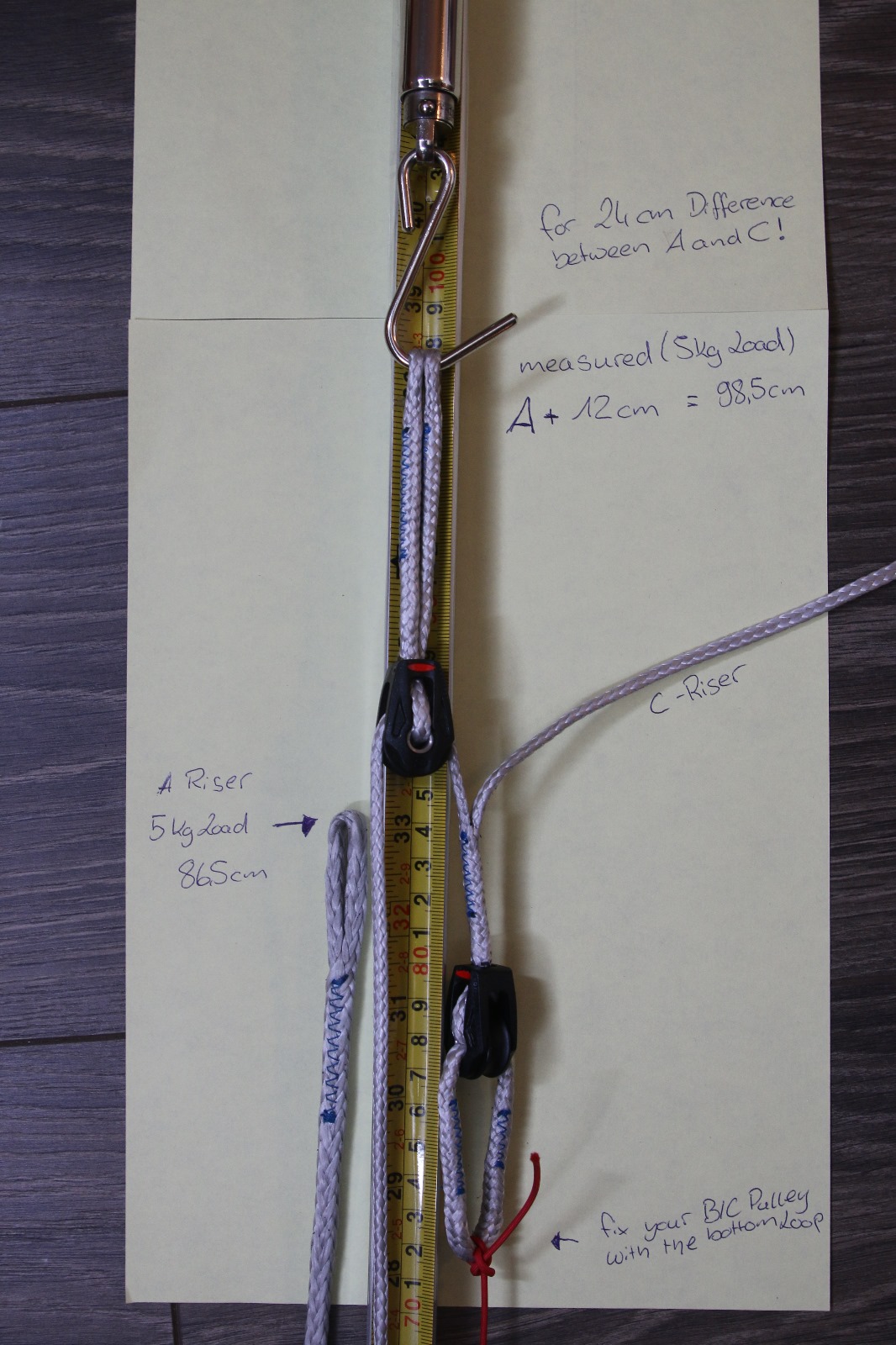

fix the B/C pulley (red line) with the Bottom loop at 0cm. adjust it
that the B Pulley is at A+12cm (for 24cm Difference between A/C) under
5kg load. here you an do also A+10cm if you want 20cm difference A/C
Sun, 28/9/25, 8:50

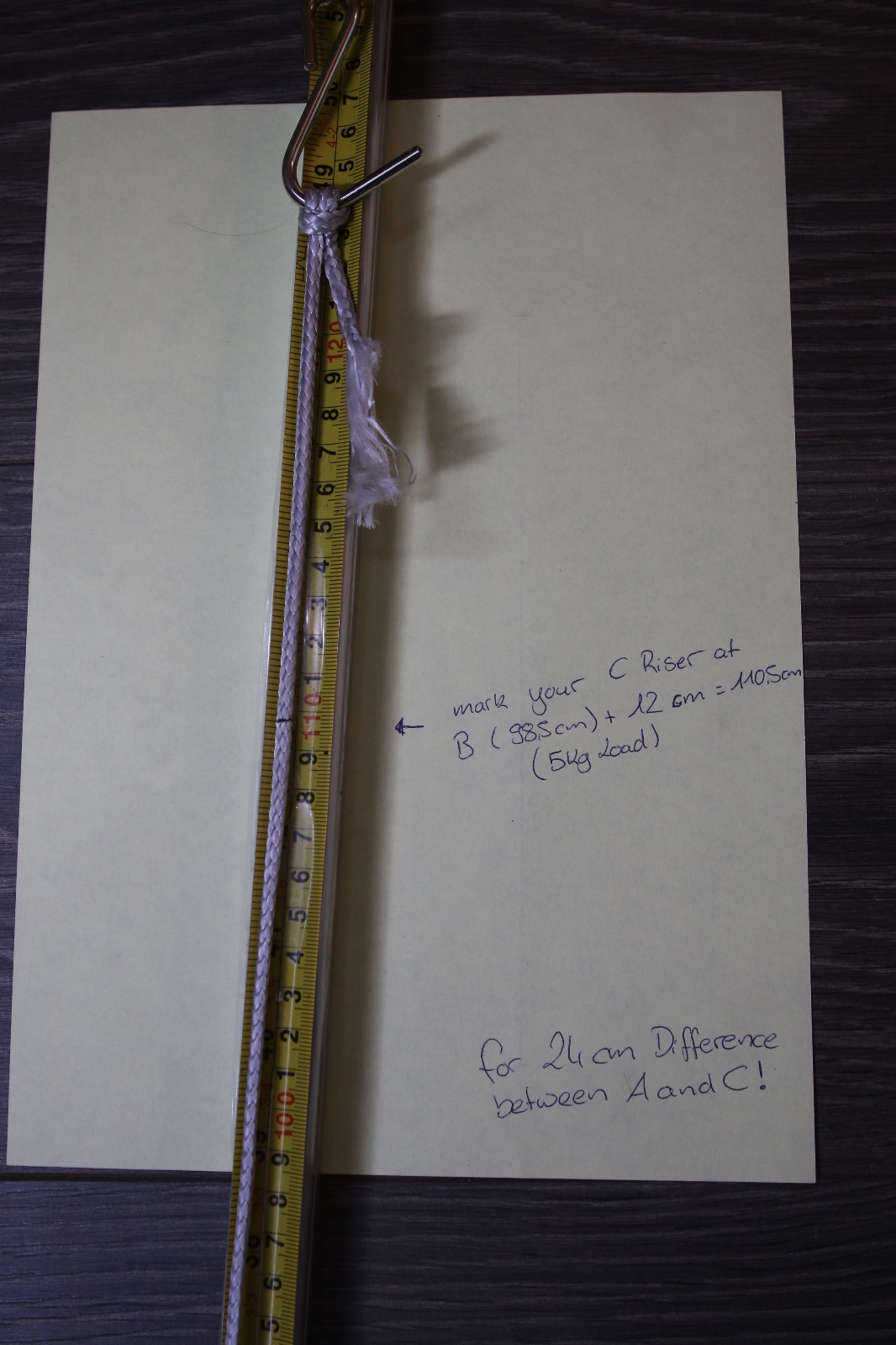

30
with the B/C pulley fixed on Position like on the picture before and A
(86,5cm)+12 B (98,5cm) mark your C_Riser at B+12cm (110,5cm)
Sun, 28/9/25, 8:53

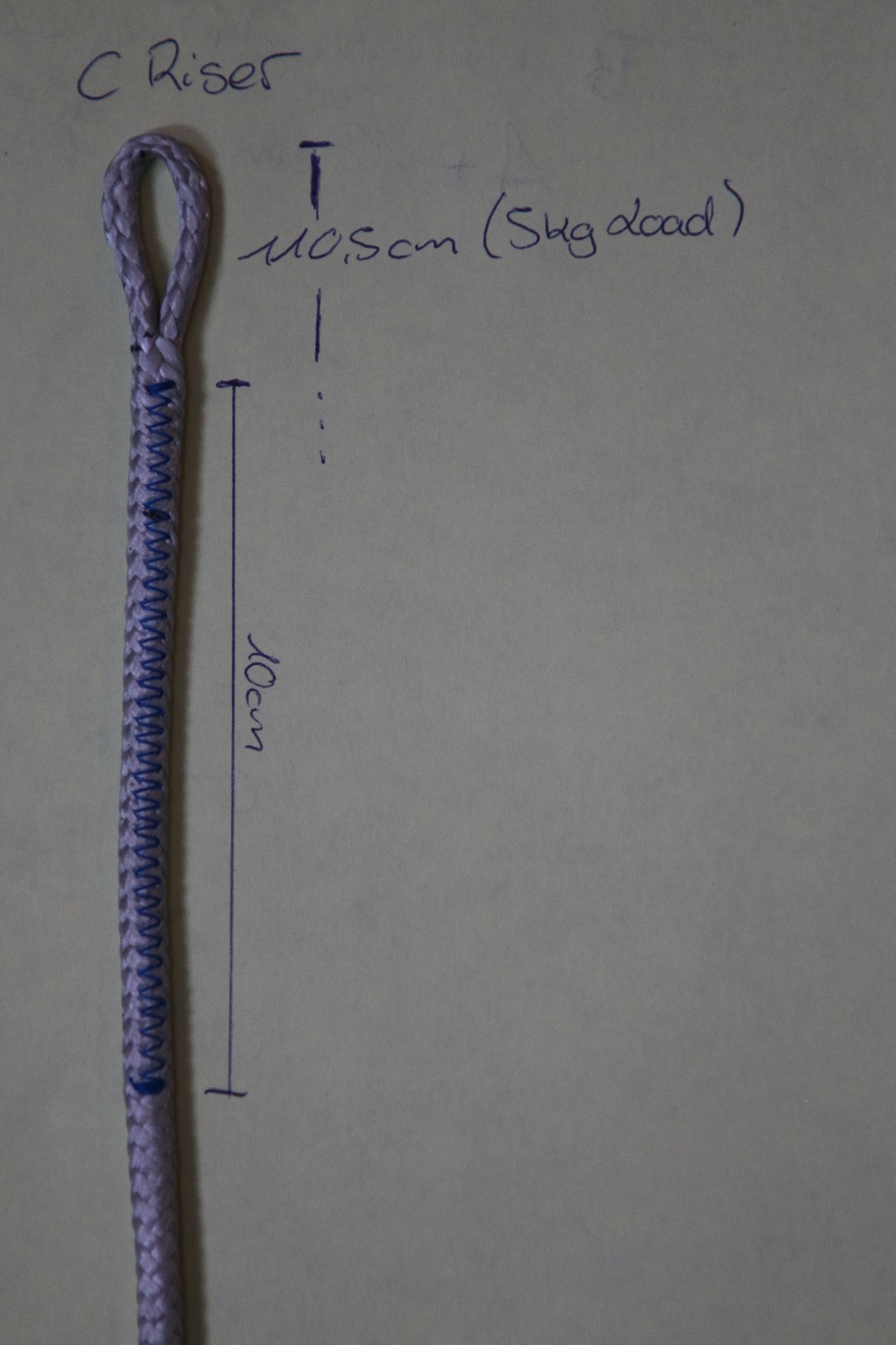

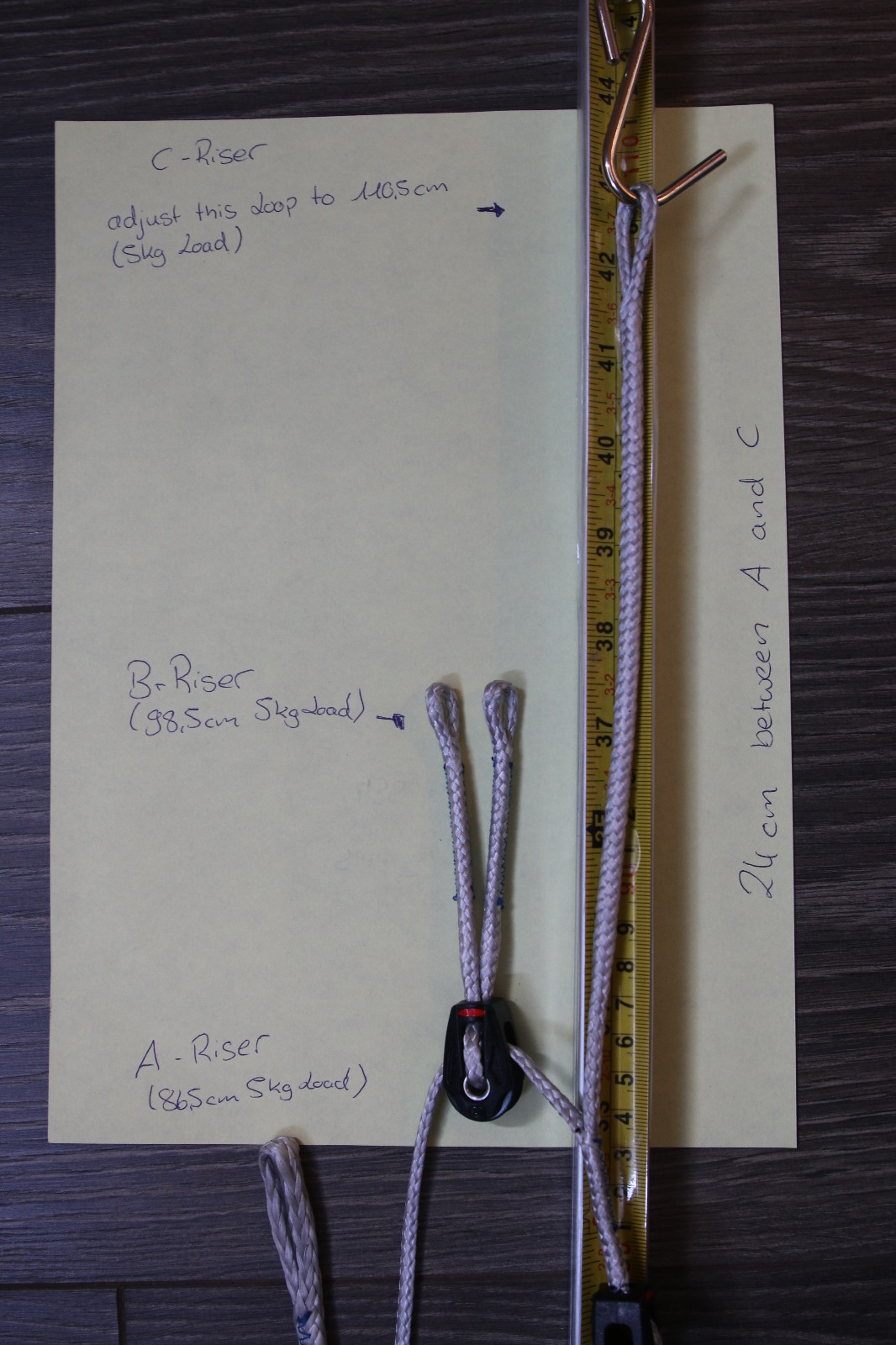

31 splice the C-Riser and adjust the Loop to A+24cm
Sun, 28/9/25, 8:55

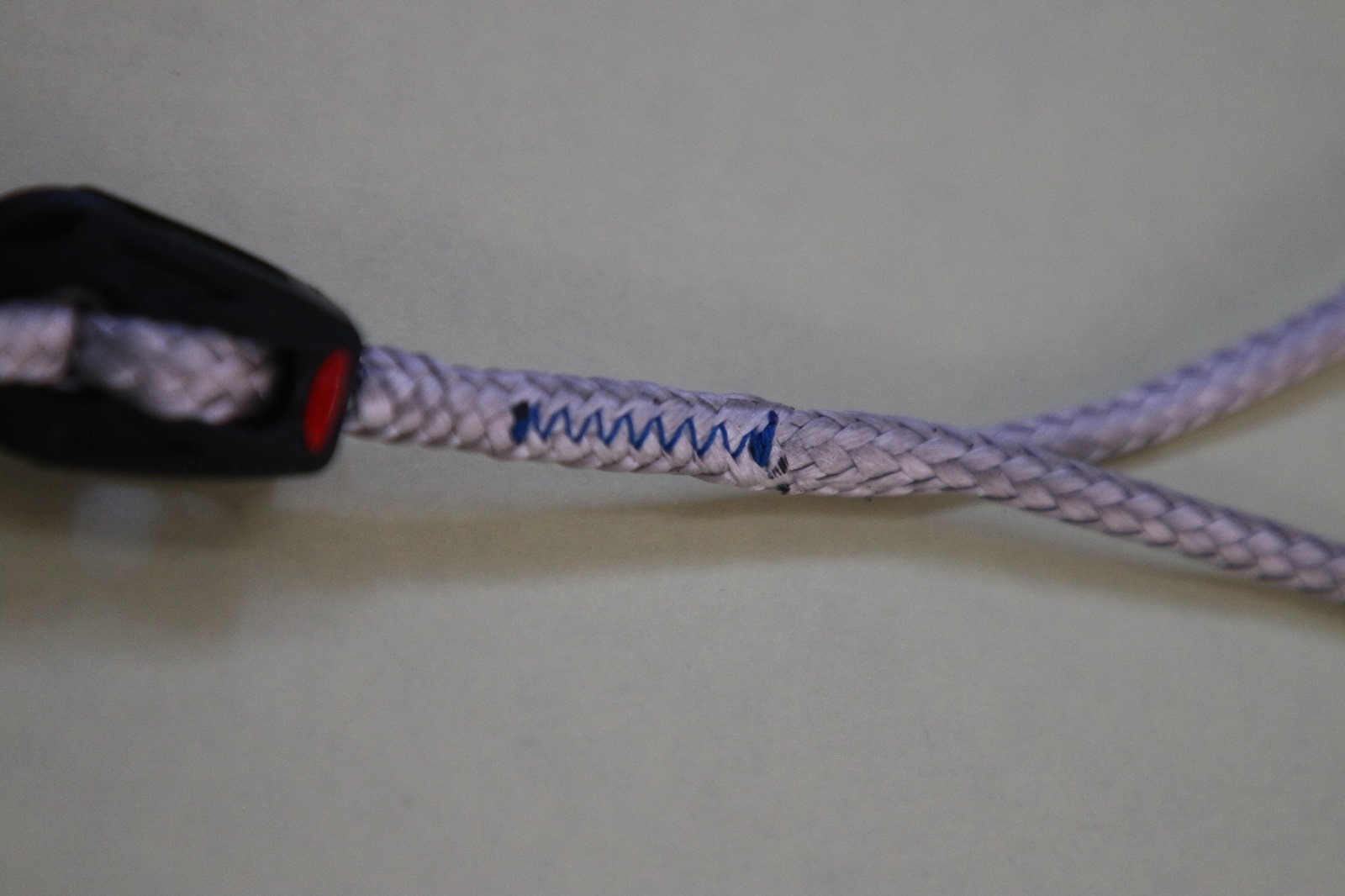

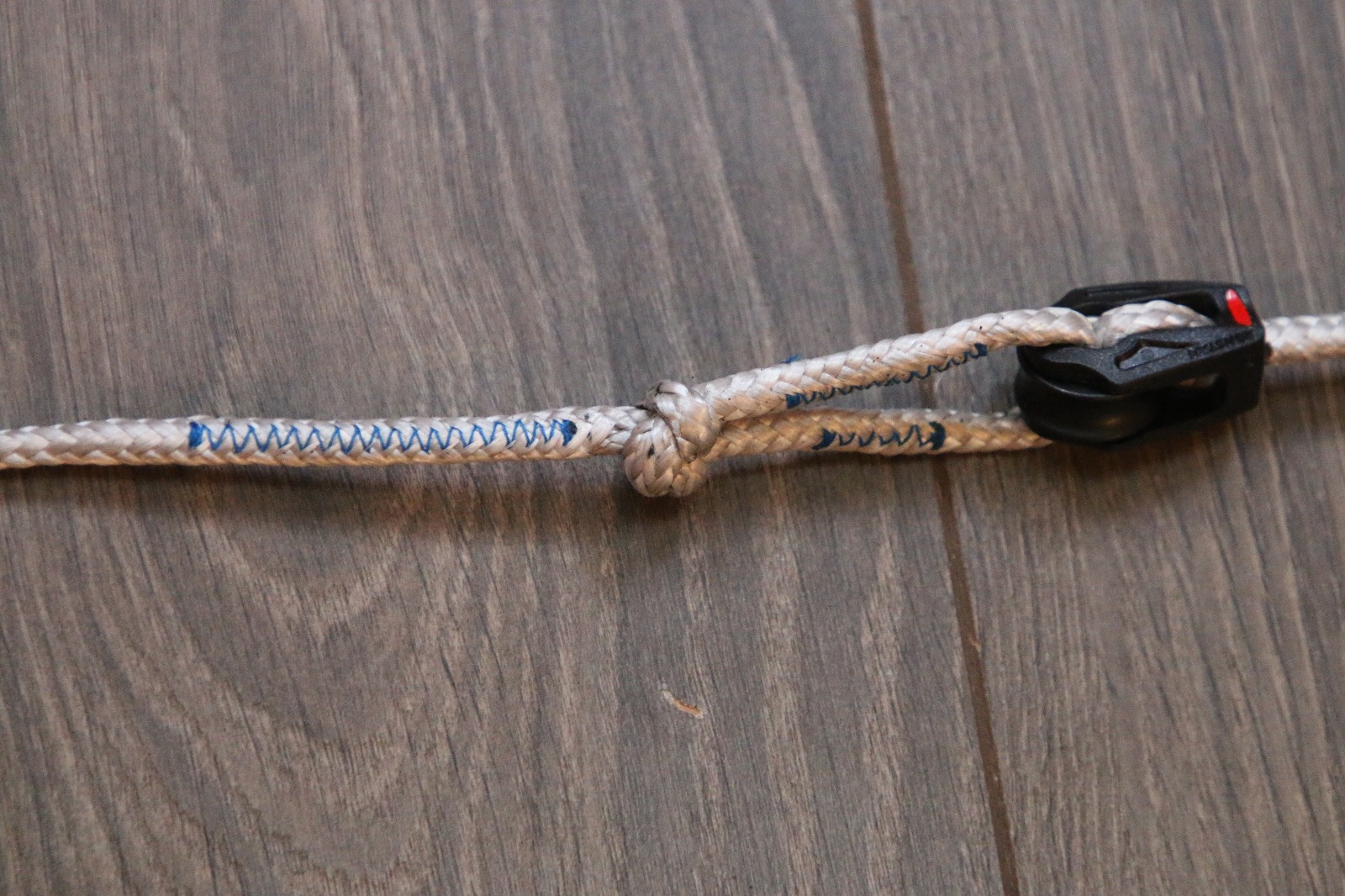

this is the sewing after Picture 28 :D sew as close to the slpit point (B/C) as you can
Sun, 28/9/25, 8:57
32 sew the C-Riser
Sun, 28/9/25, 8:59

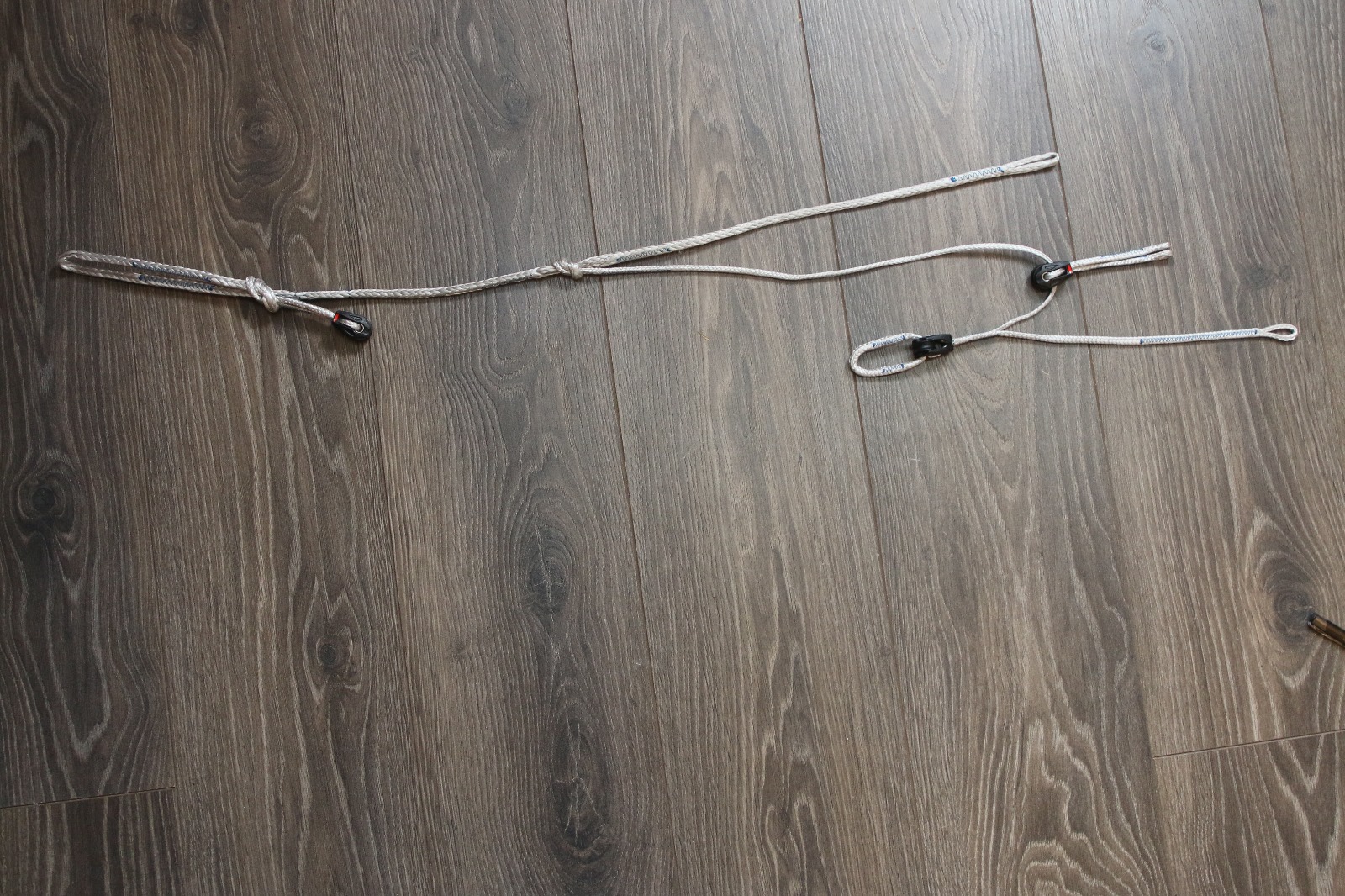

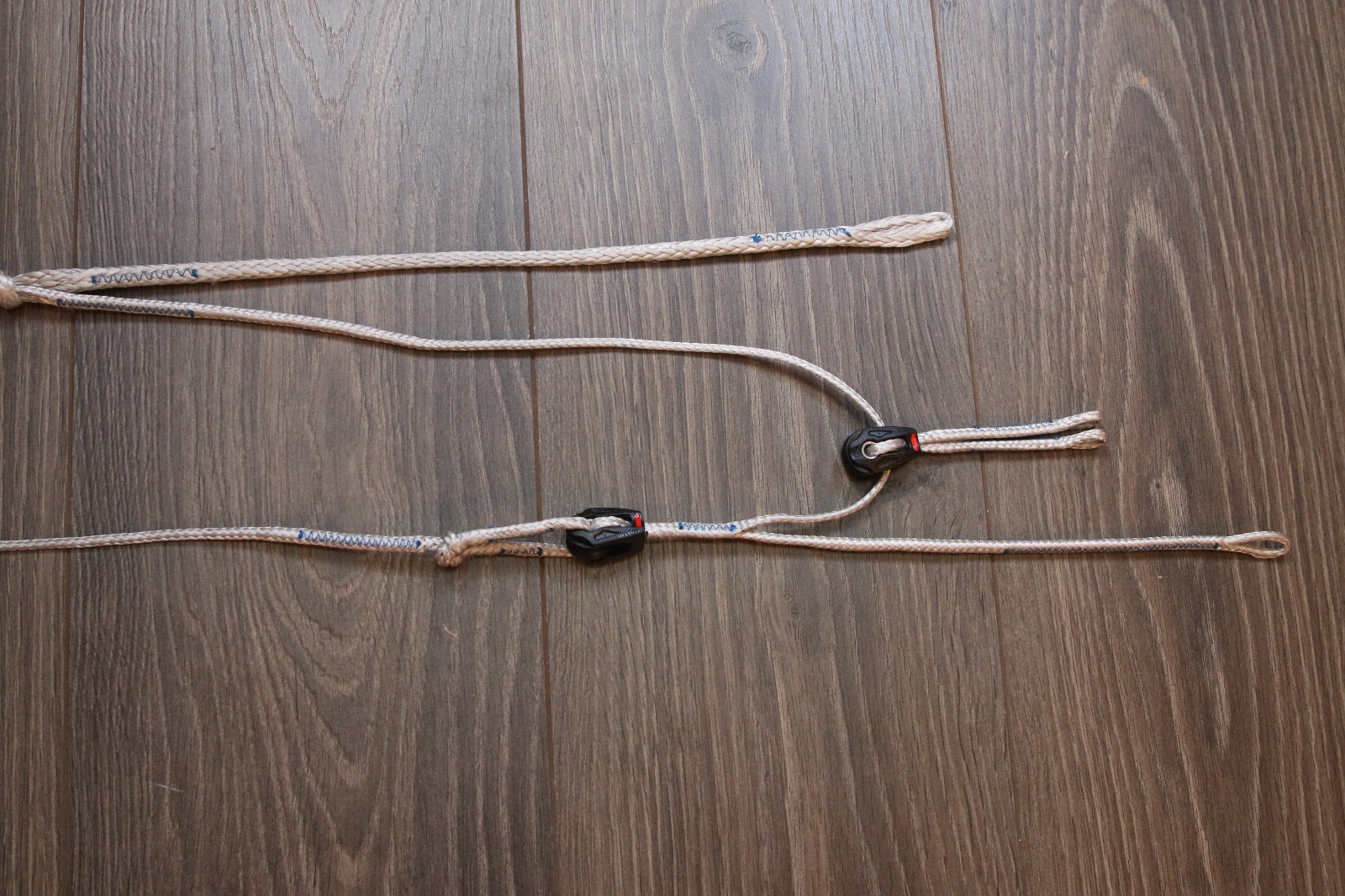

33 now you should have something like this
Sun, 28/9/25, 9:00

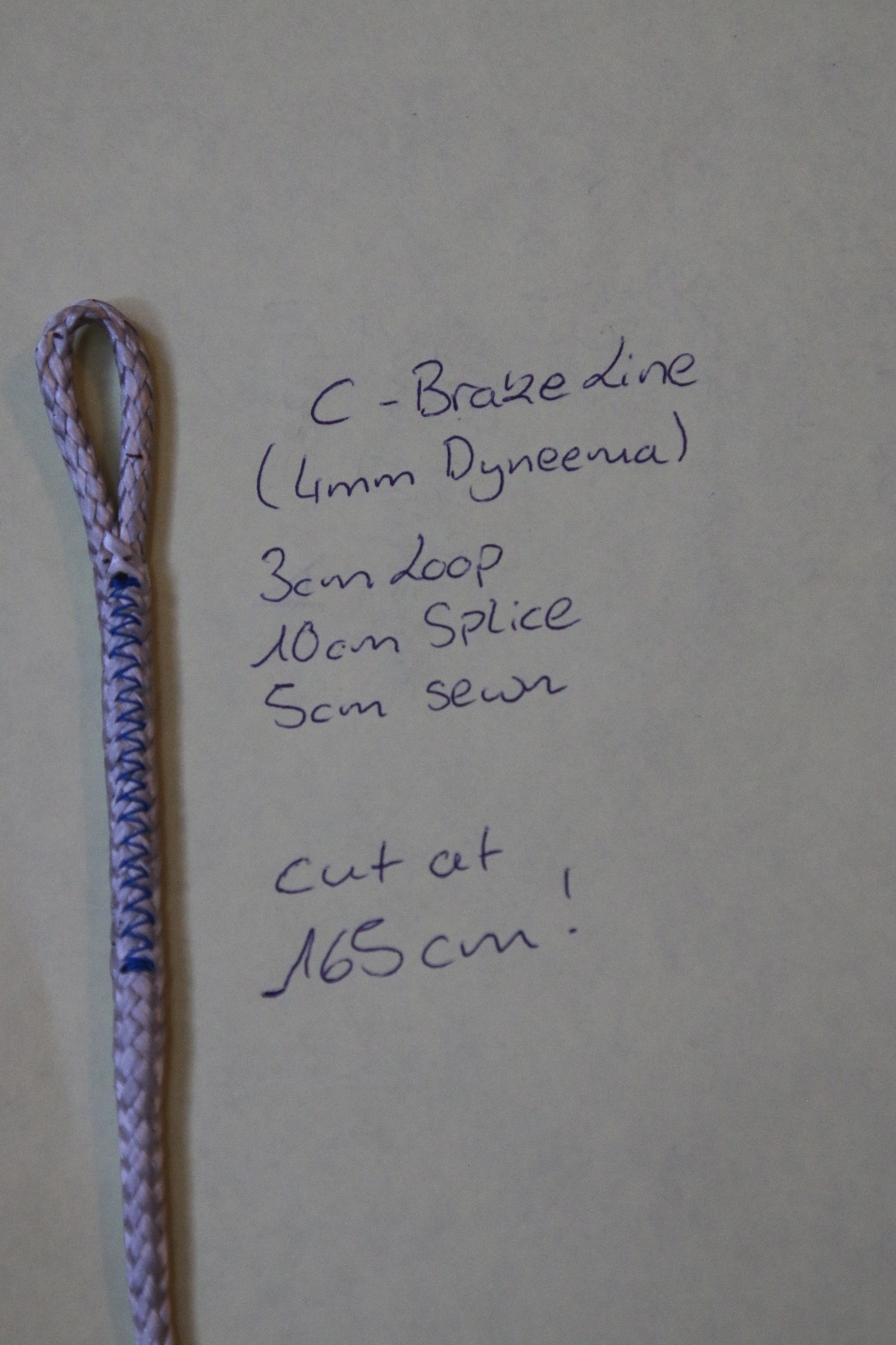

34 prepare the C/Brake-Line
Sun, 28/9/25, 9:01
35 connect the C/brake-Line to the downside Loop of the B/C pulley
Sun, 28/9/25, 9:03
36
Sun, 28/9/25, 9:03
37
Sun, 28/9/25, 9:03

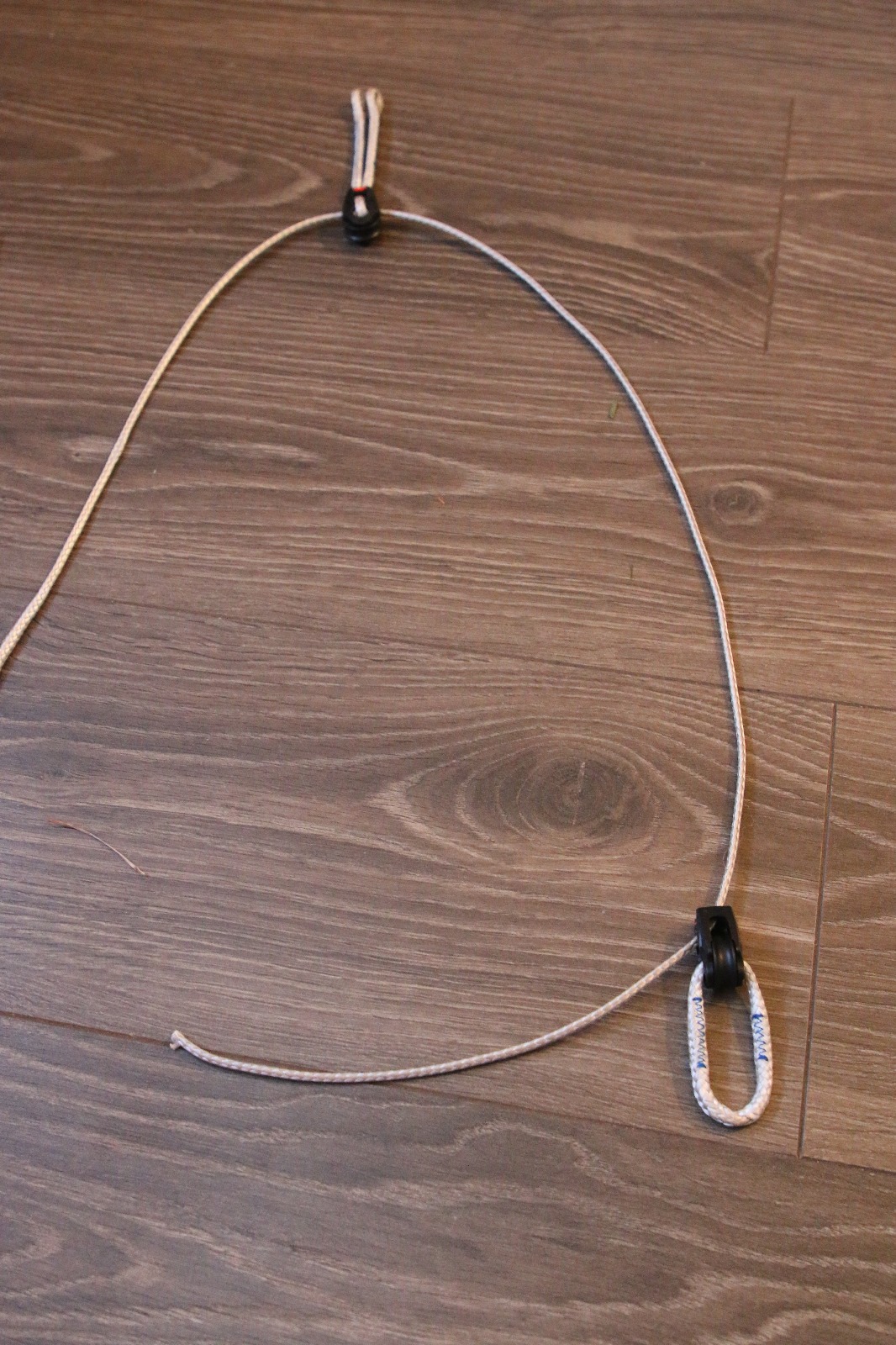

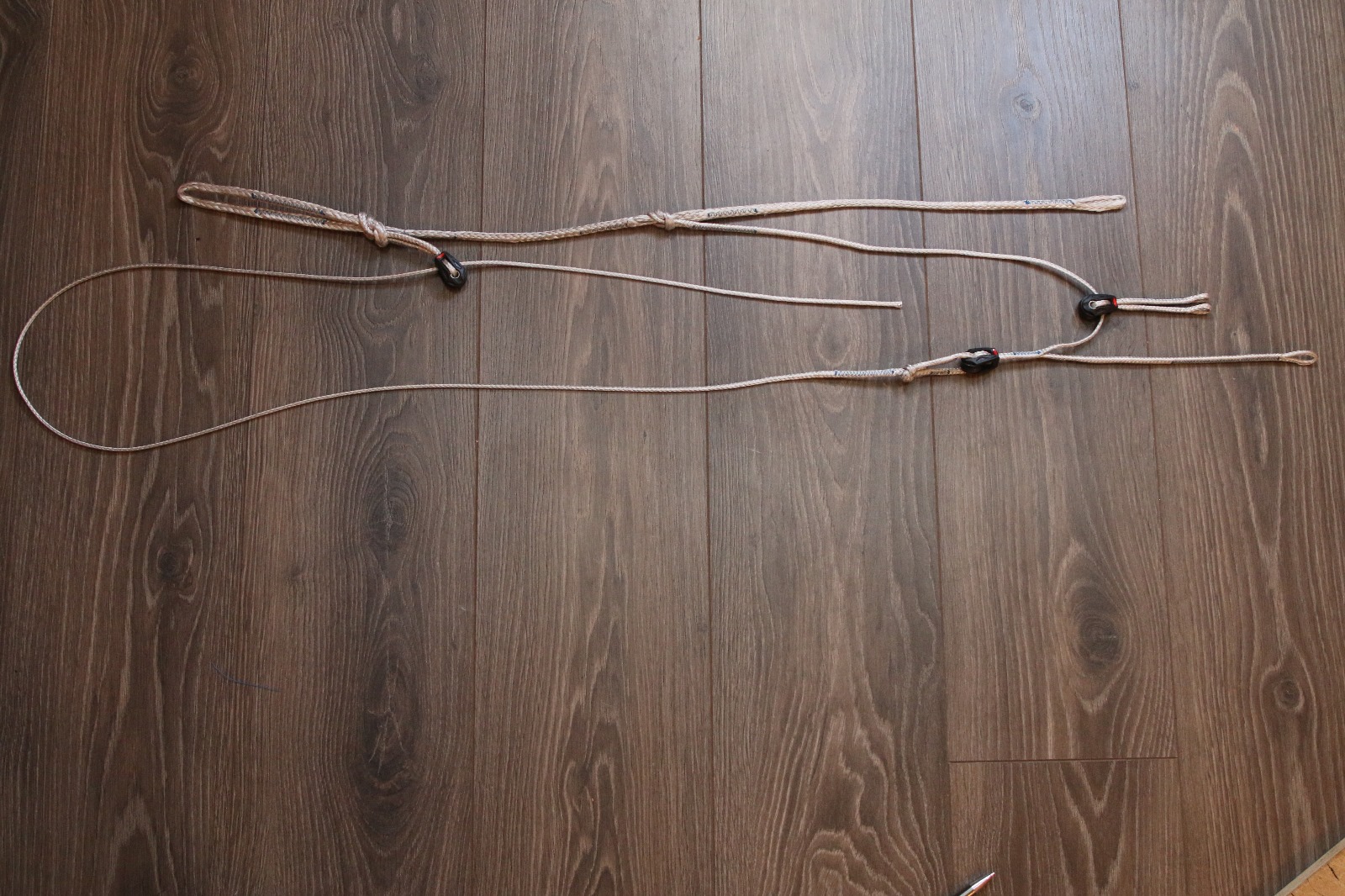

38 pull the C/Brake-Line throu the lower pulley..
Sun, 28/9/25, 9:04
39 .. and then come out of the B/C-pulley
Sun, 28/9/25, 9:05
41 connect a rubber to the bottom
Sun, 28/9/25, 9:07

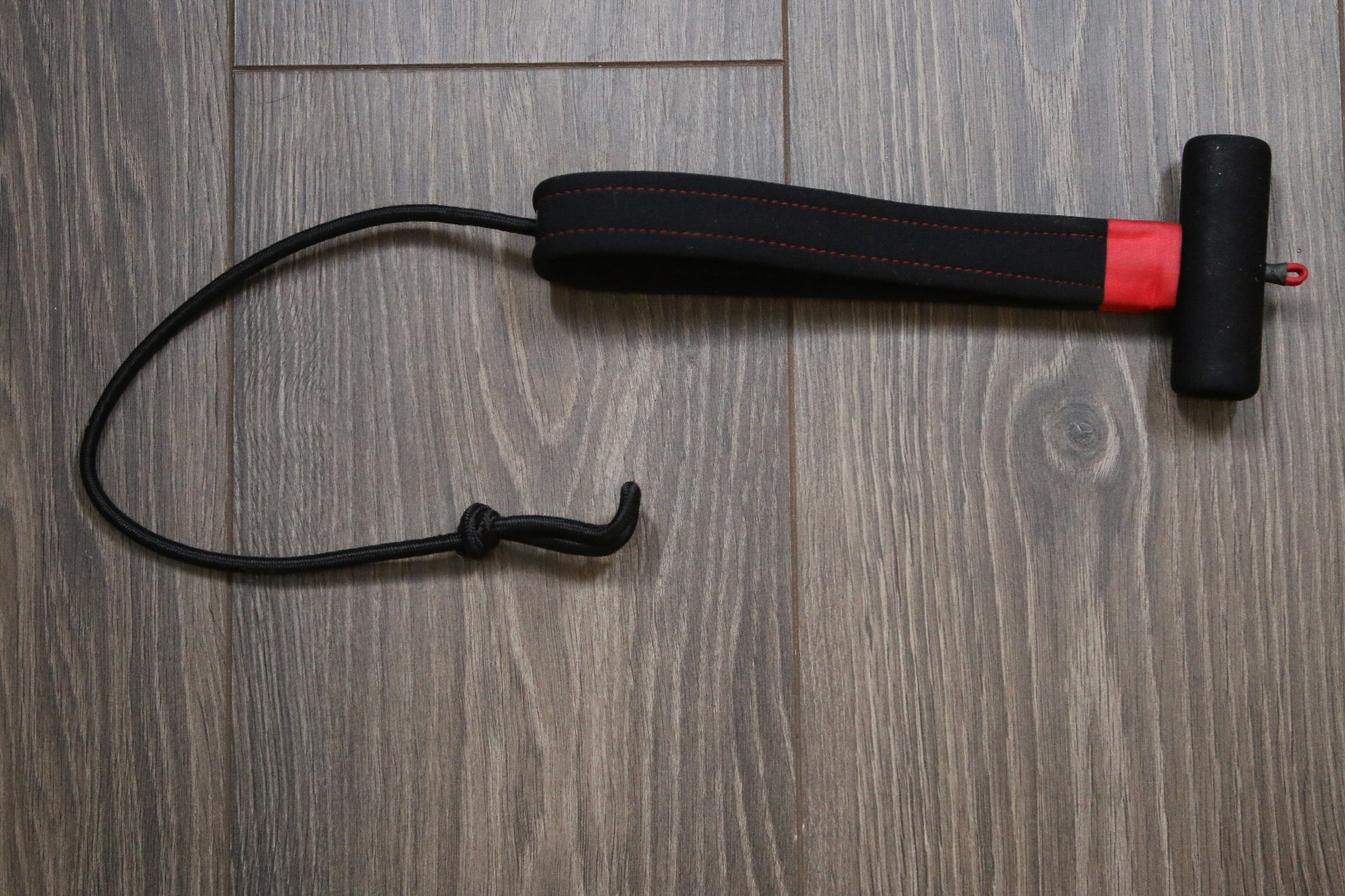

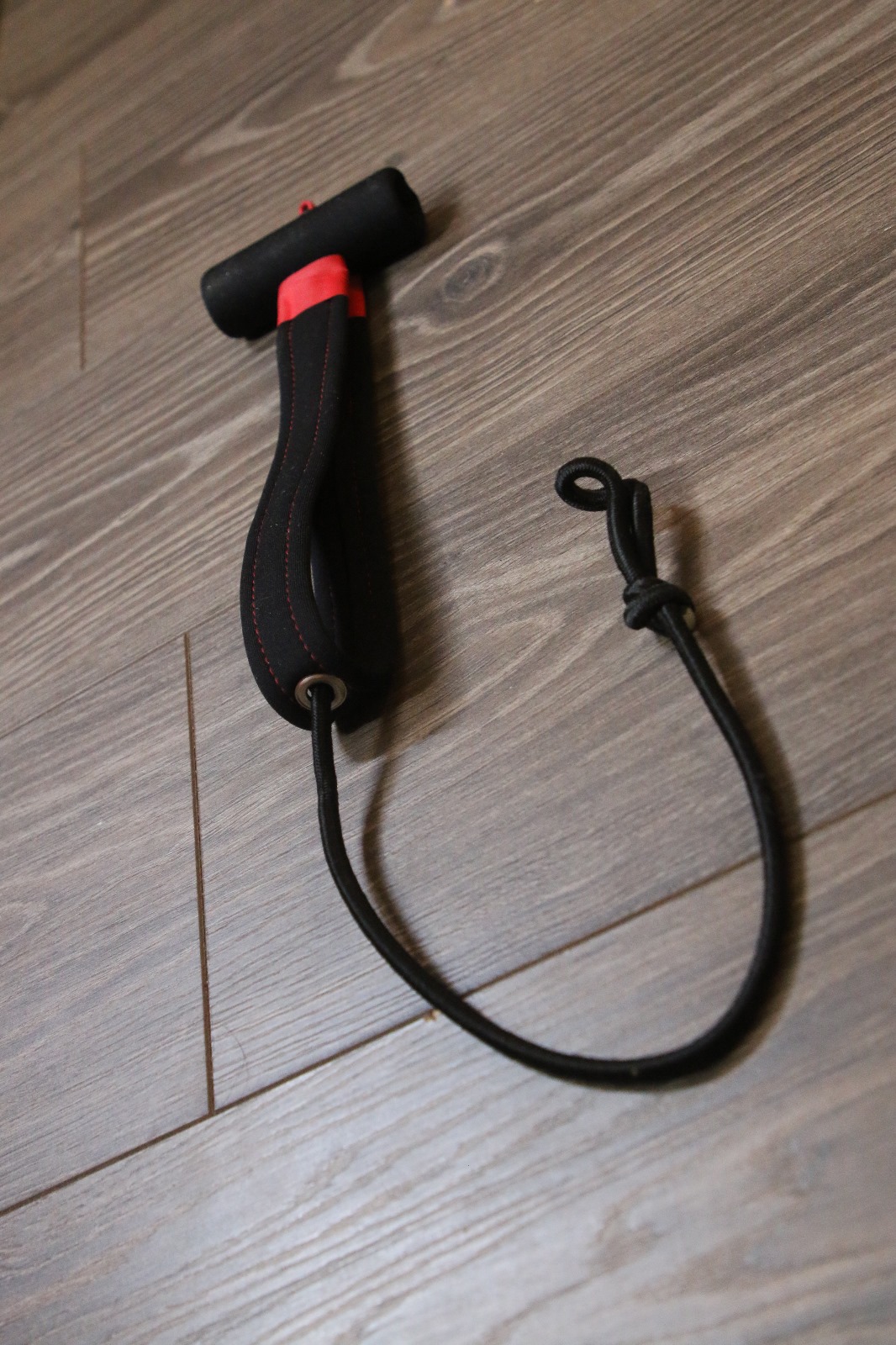

40 homemade neoprene kite riser toggle
Sun, 28/9/25, 9:07

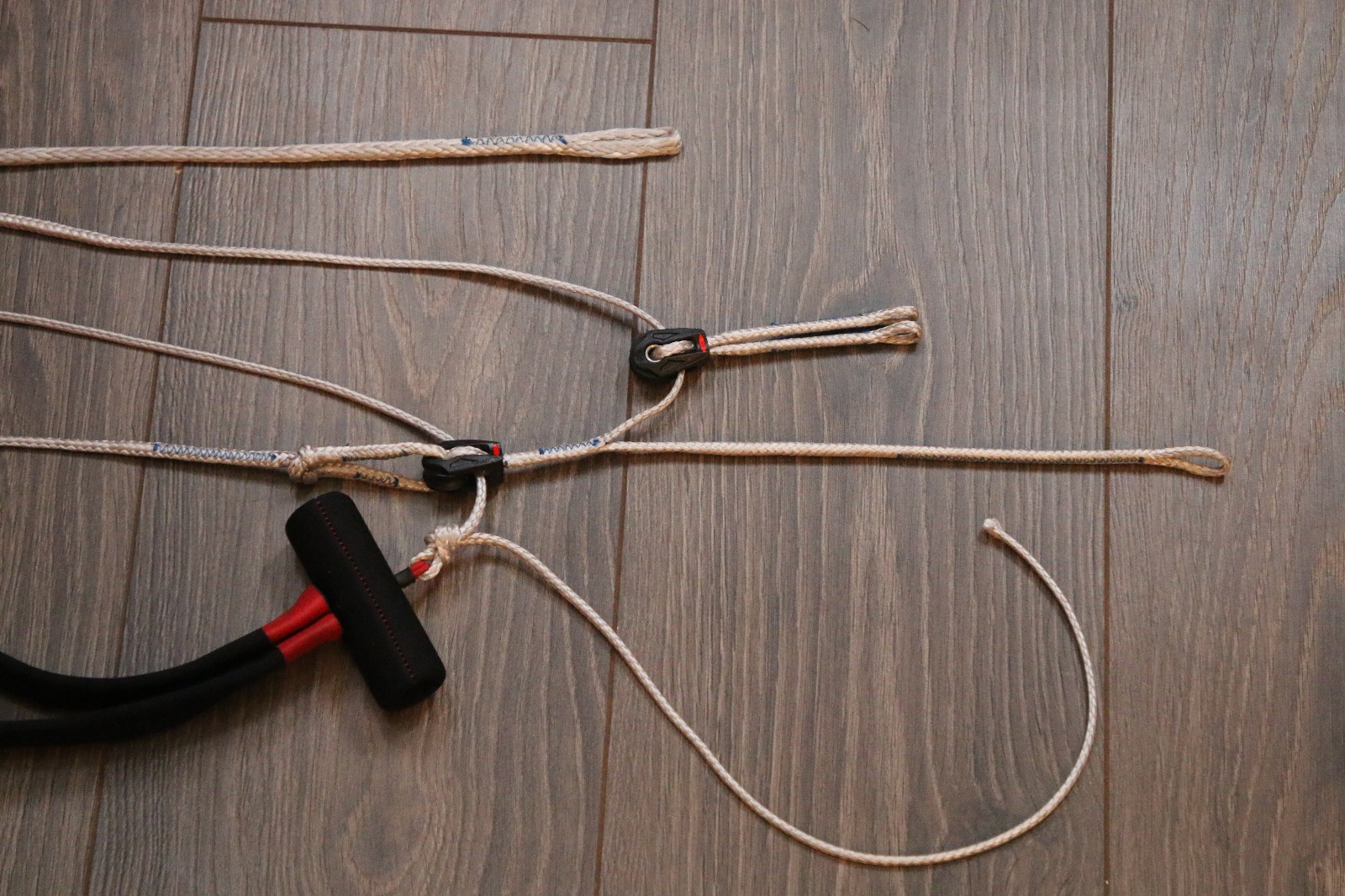

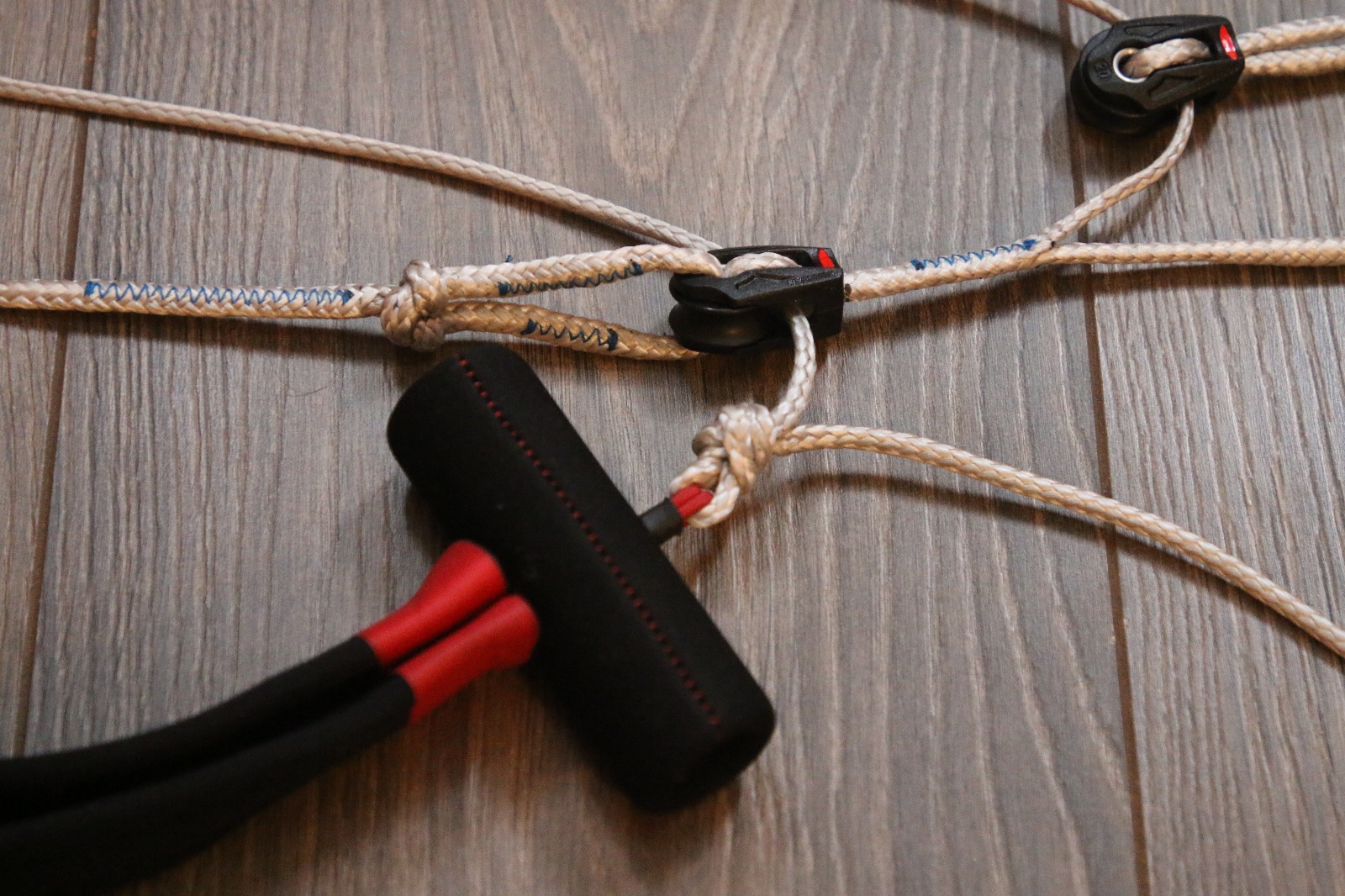

42 put the brake toggle on the C/Brake-Line
Sun, 28/9/25, 9:08
43 measure the C (5kg load) and adjust the knot that it stops at 110,5cm
Sun, 28/9/25, 9:10
44 splice a loop to the remaining brake line
Sun, 28/9/25, 9:12

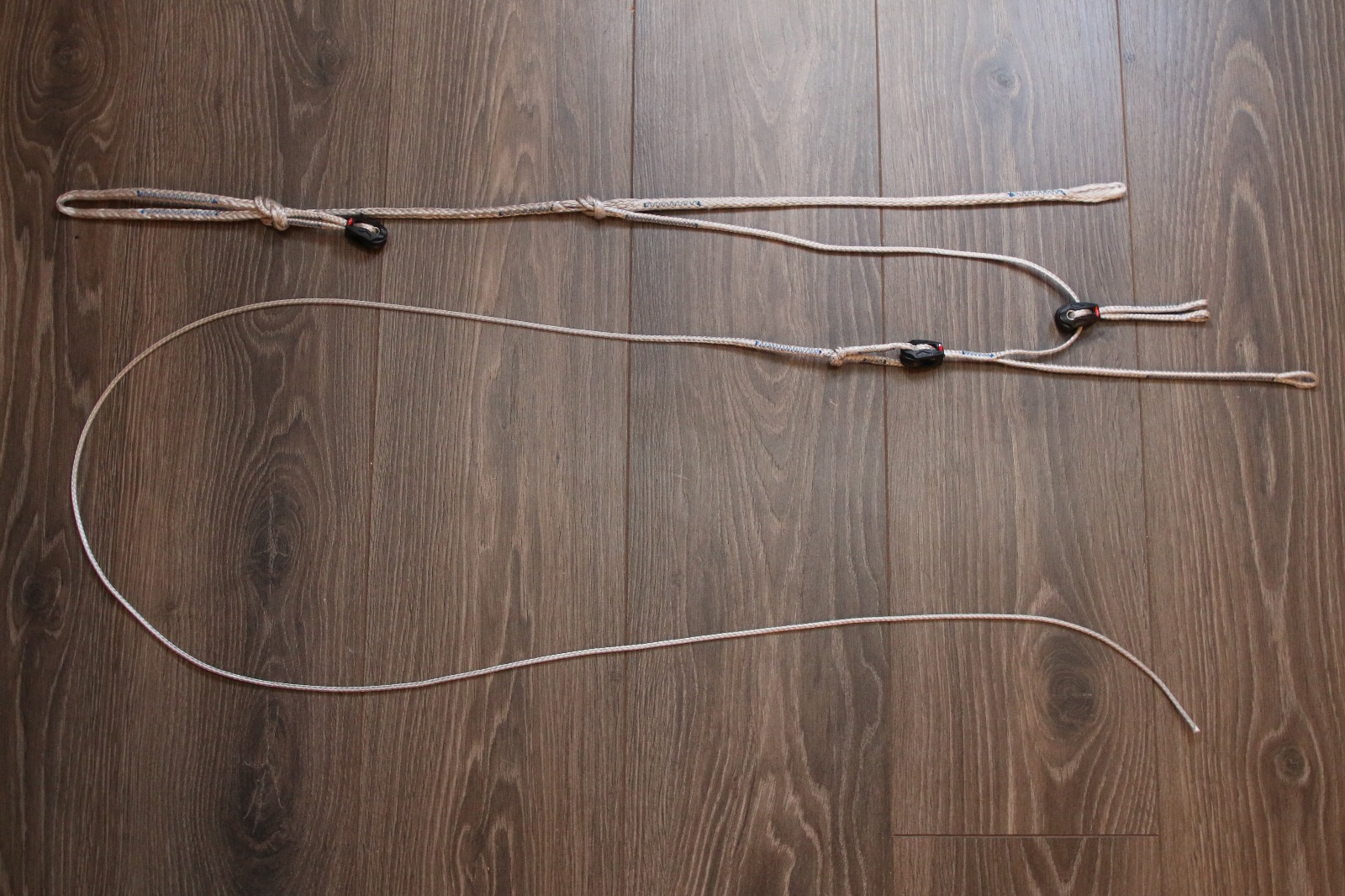

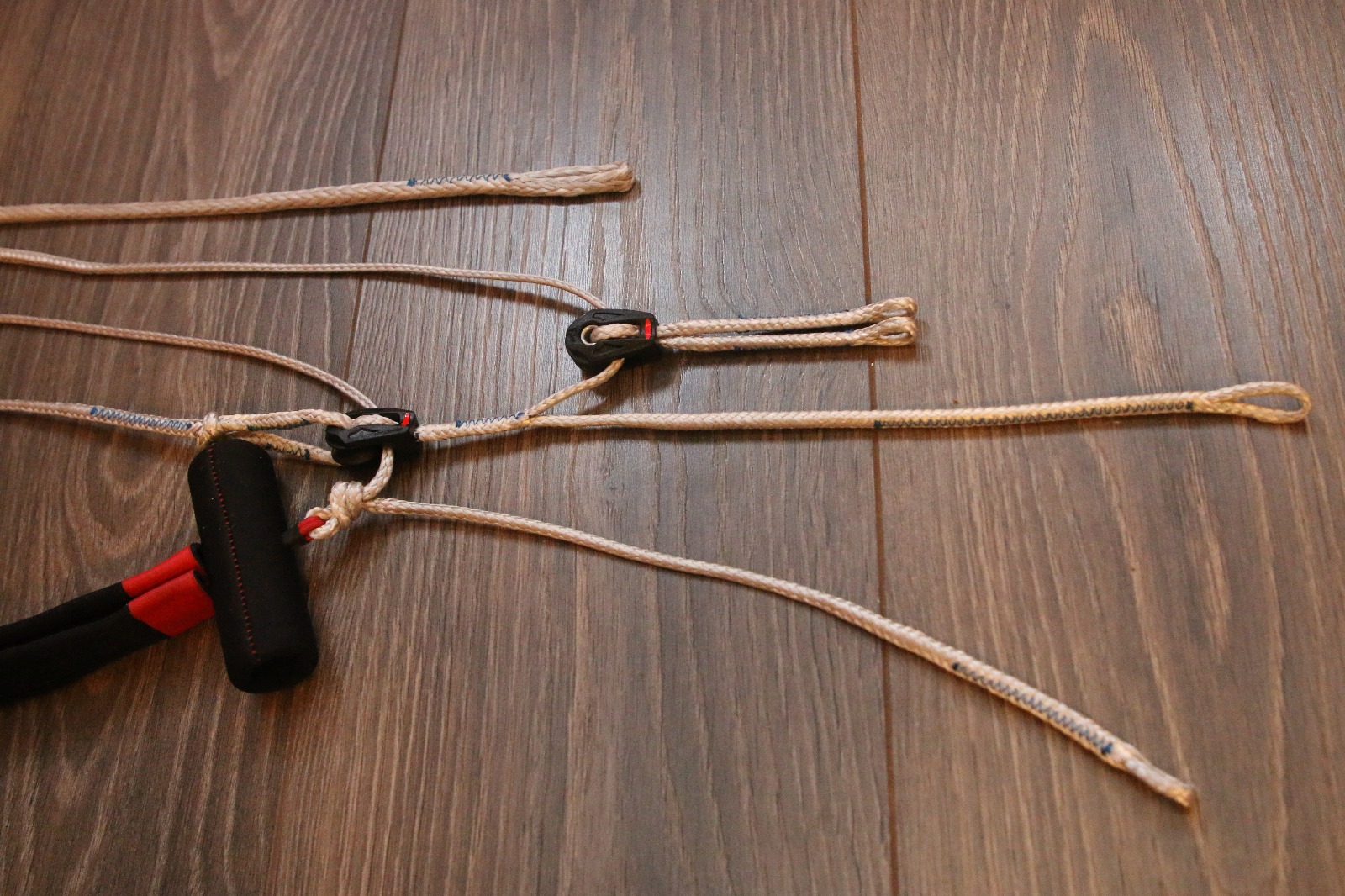

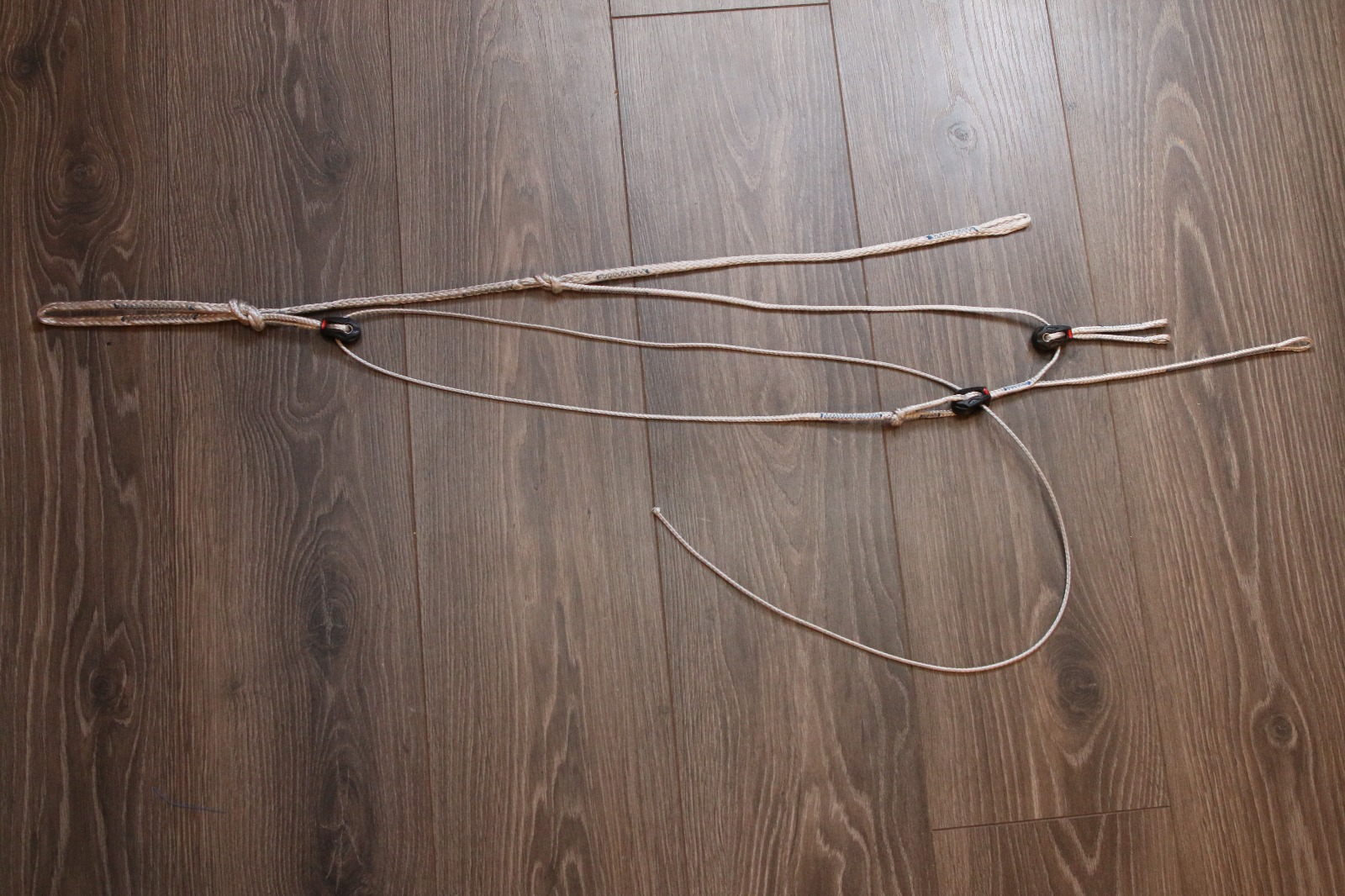

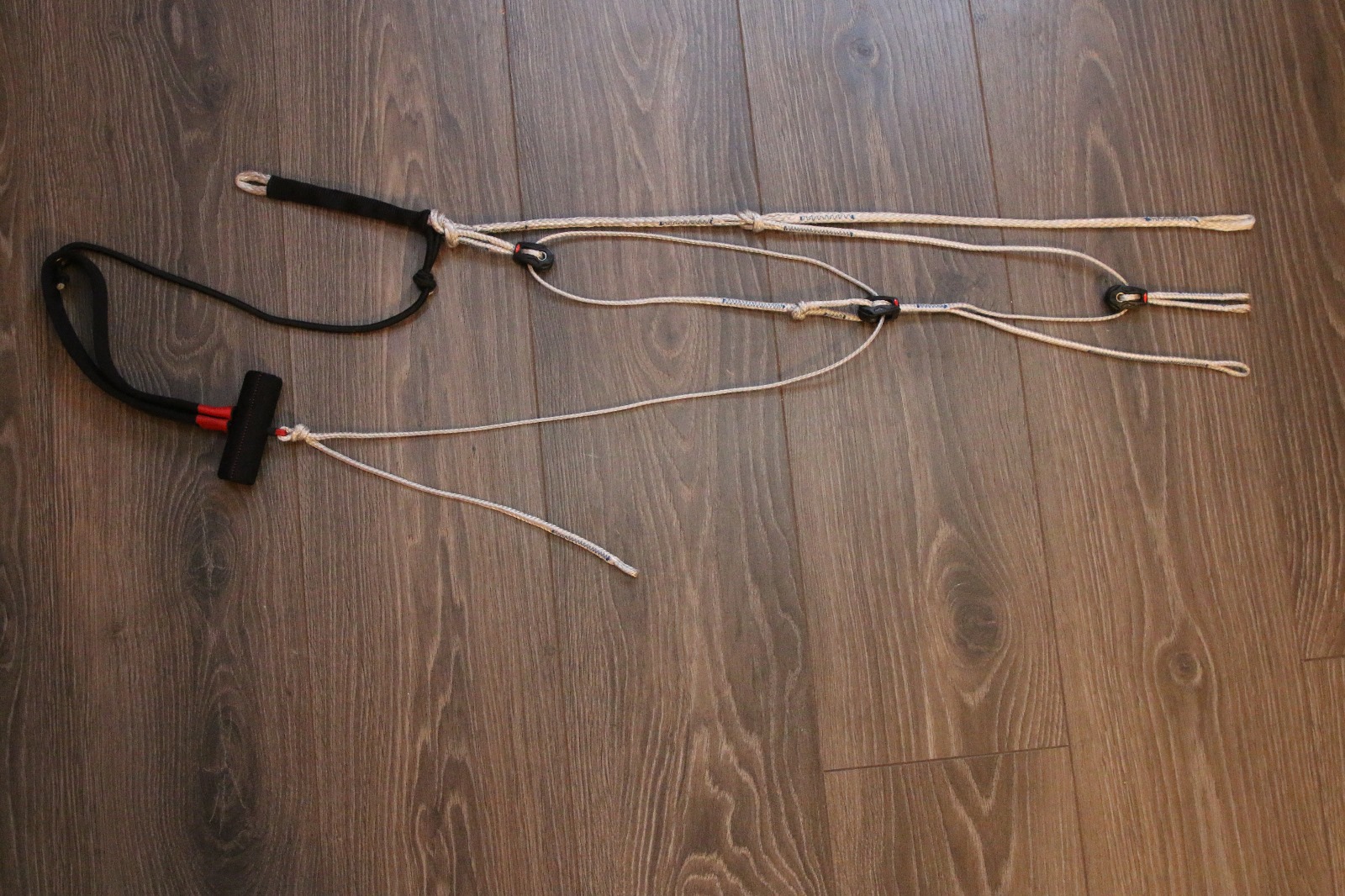

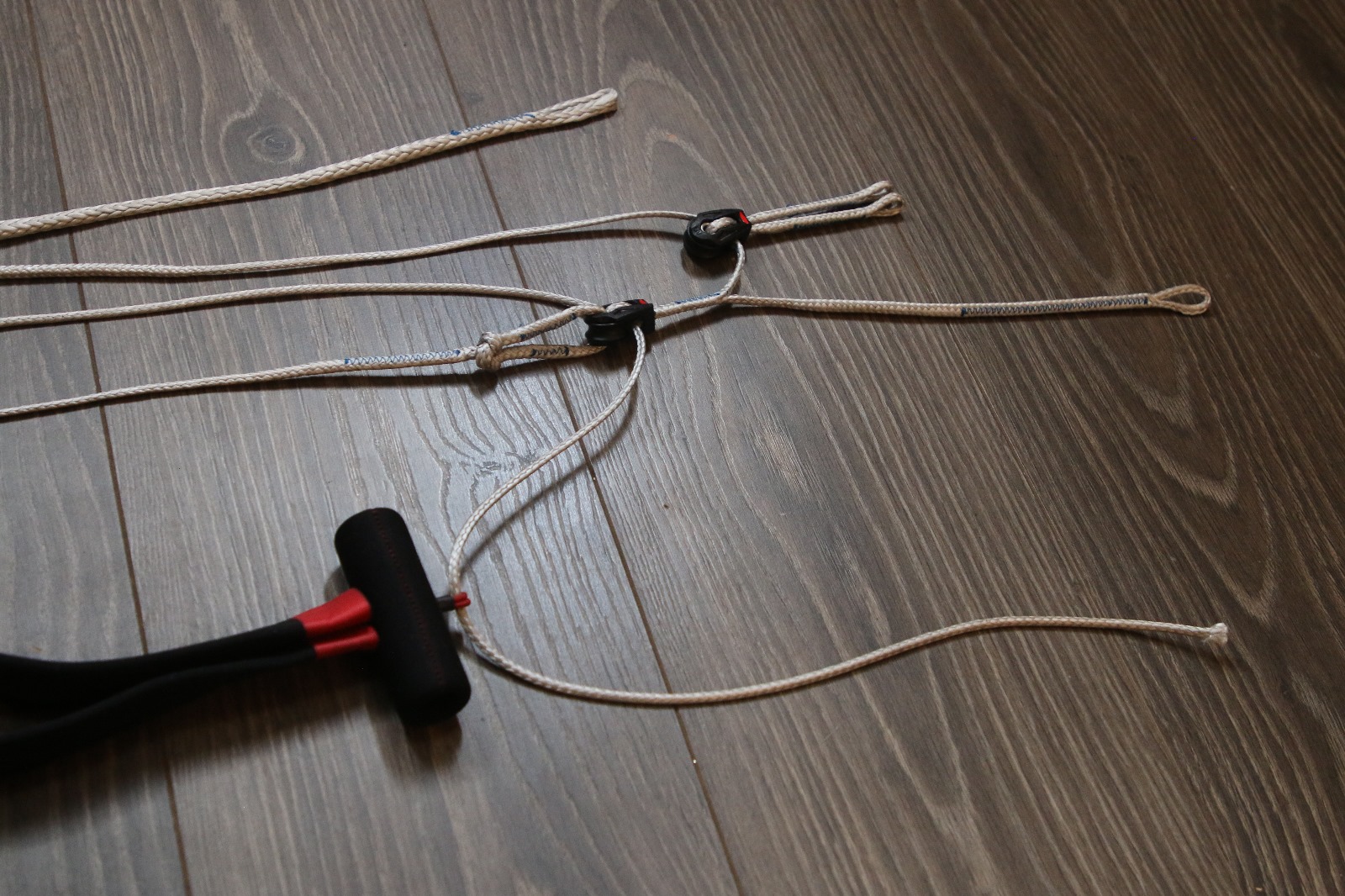

45 you can later adjust the brake line lenght on the loop , now the riser is finished
Sun, 28/9/25, 9:13

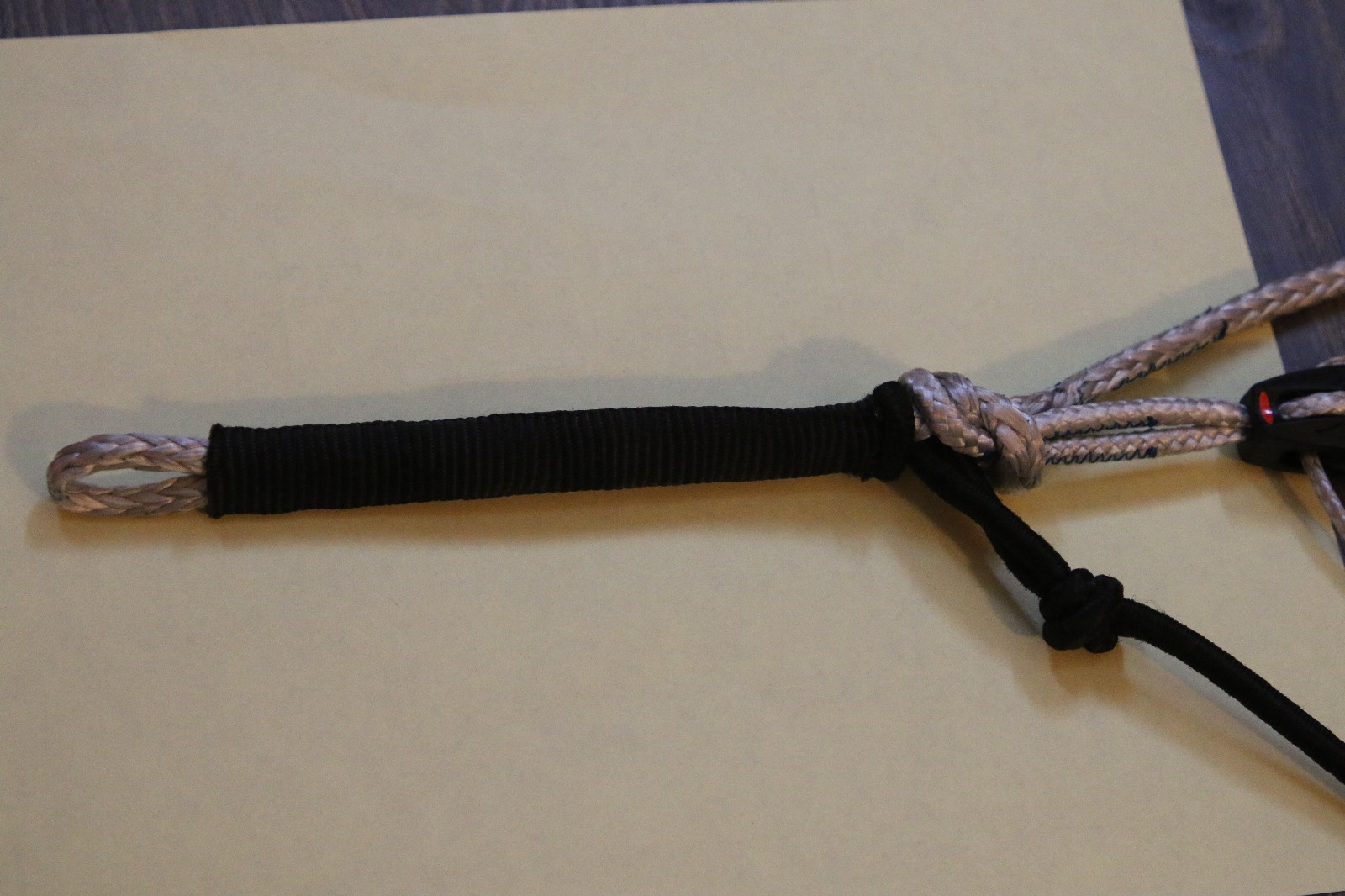

46 i like to put some hollow polyester band (20mm) to the Bottom loop , it protects the loop and looks cool ;)
Sun, 28/9/25, 9:15
47
the brake line should engage when all risers are at same height . your
adjustment depends on the glider. in my case ist slightly above
carabiner height
