SPEEDLAB 16

"Easy Speed Glider"

The SPEEDLAB is a reduced version of gnuEASY, with some variations:

Removal of the profile number 12 (even simpler)
Removal of all mylar  reinforcements
Leading edge improved with fiberglass rods
Area reduced to 16 m2, then, very little consumption of tissue (46 ml) and lines (185 m).
Inexpensive, and easy to build...

It remains to be seen in flight ...!!!

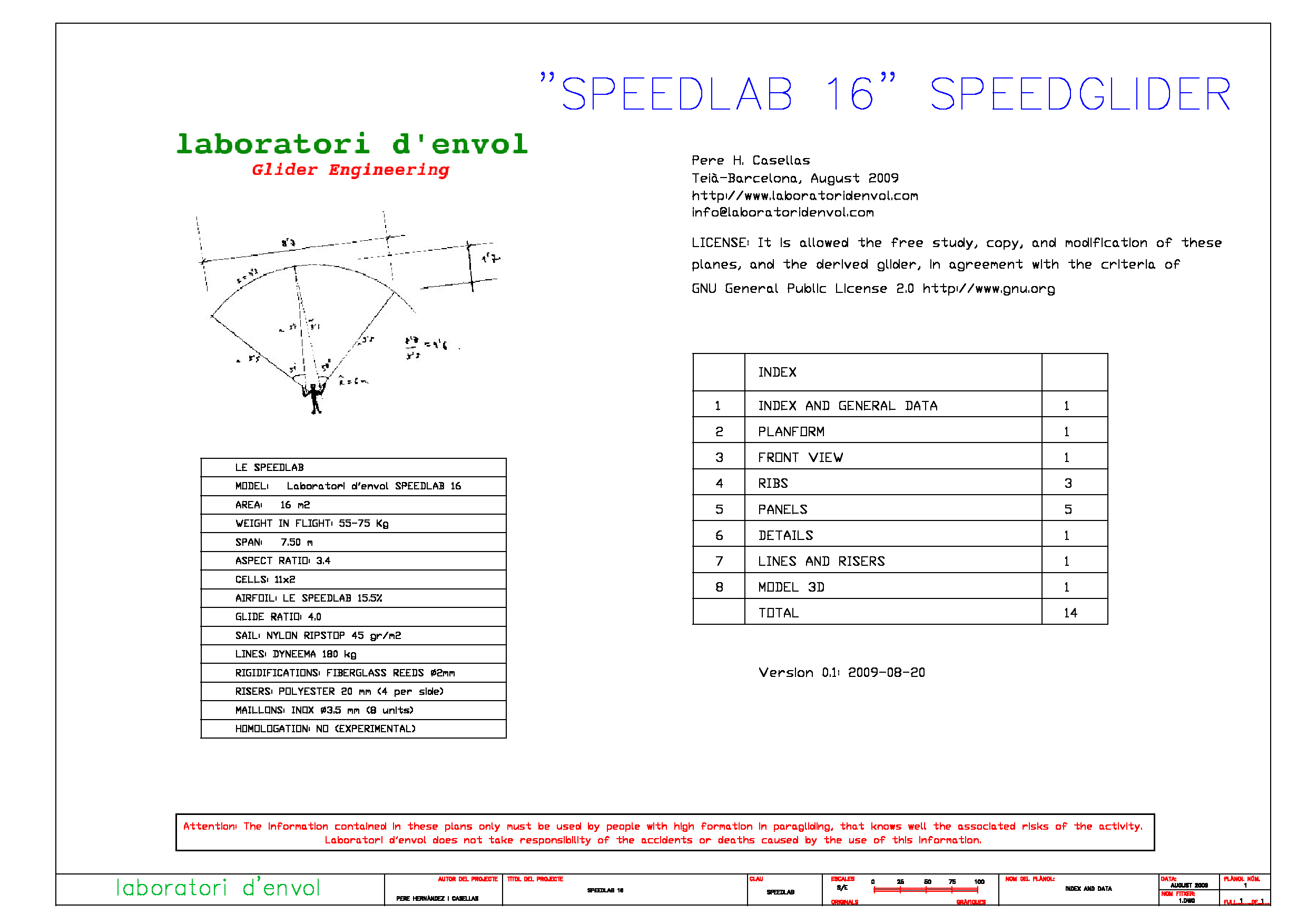

1. Plans of the SPEEDLAB 16 speedglider here in image format (.png)

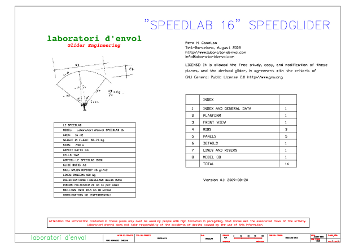

1. Index and basic data

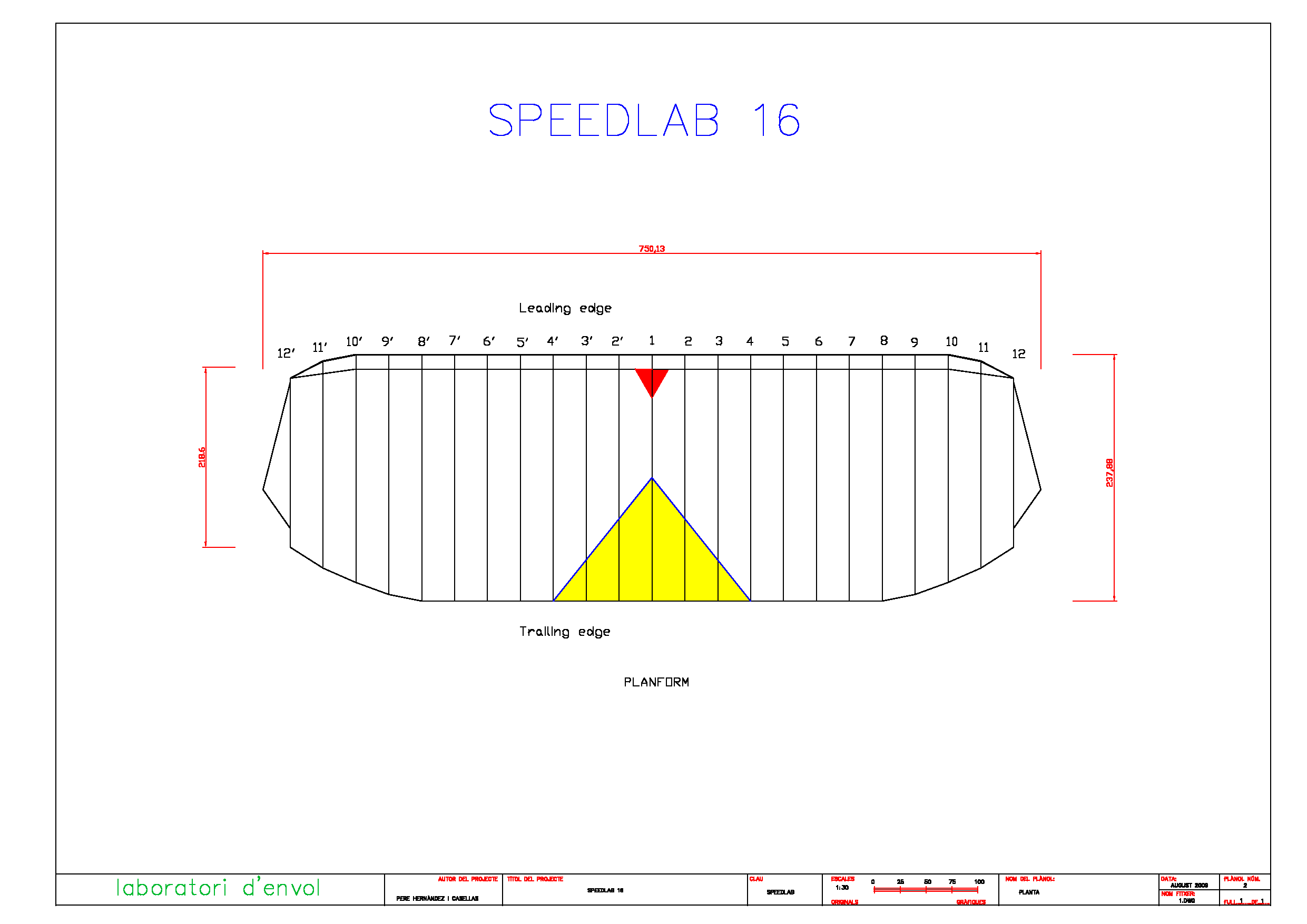

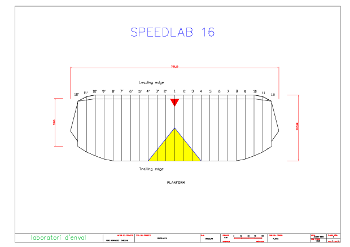

2. Planform

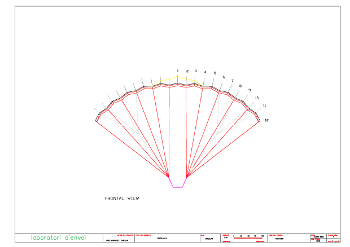

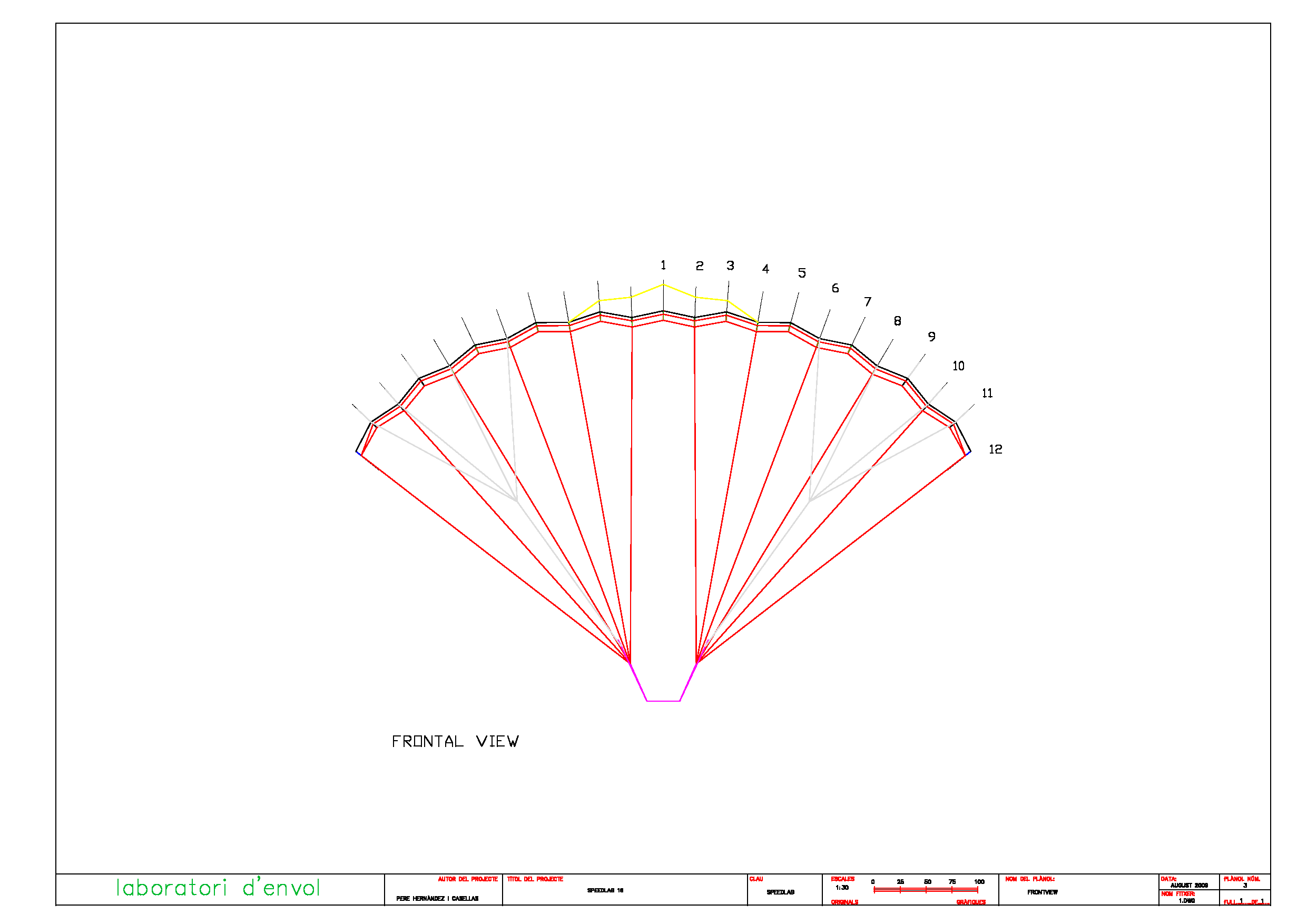

3. Front view

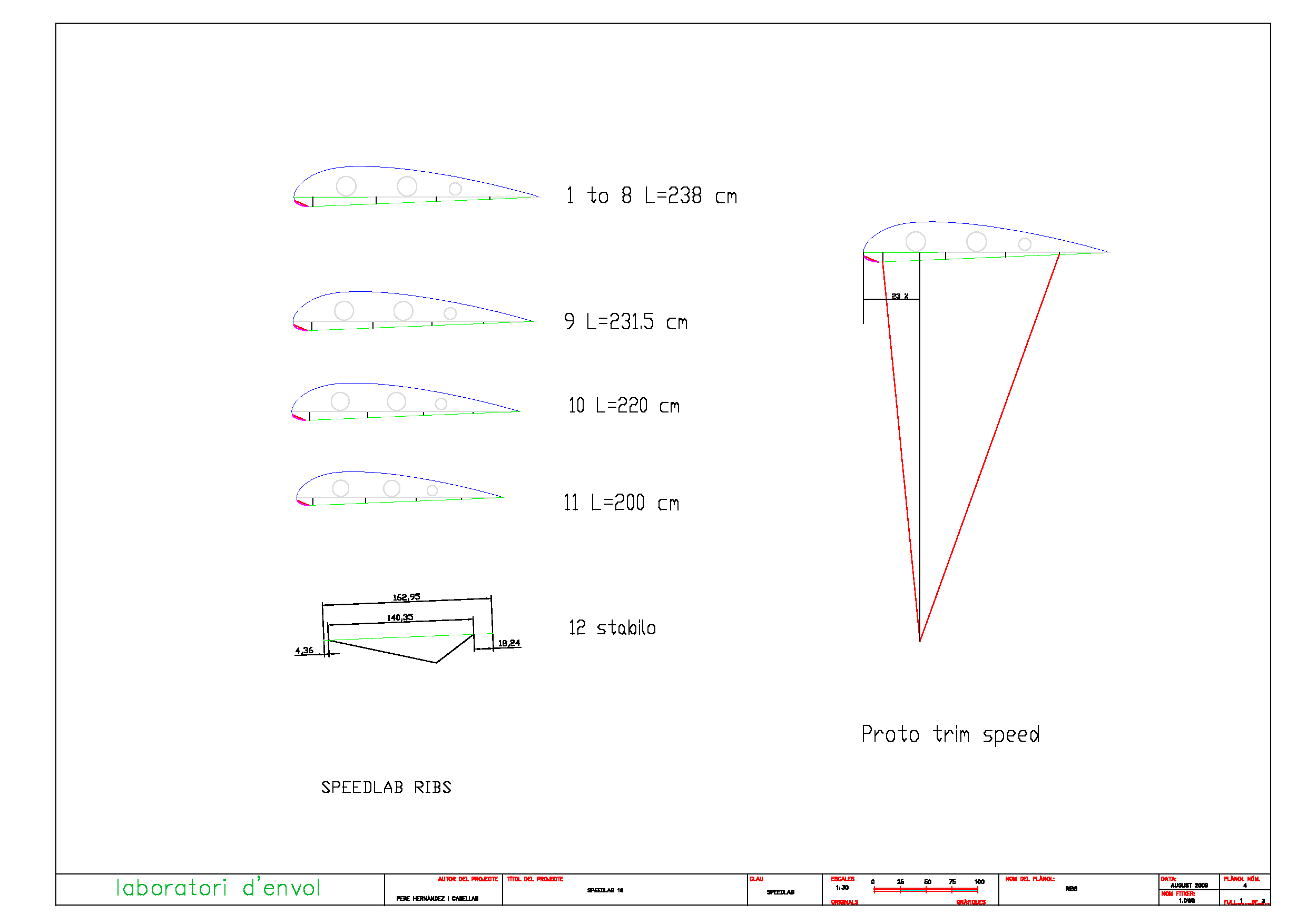

4.1 Ribs

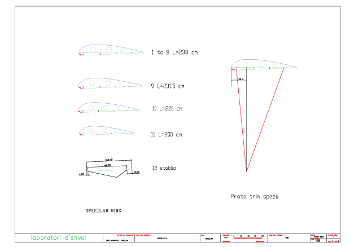

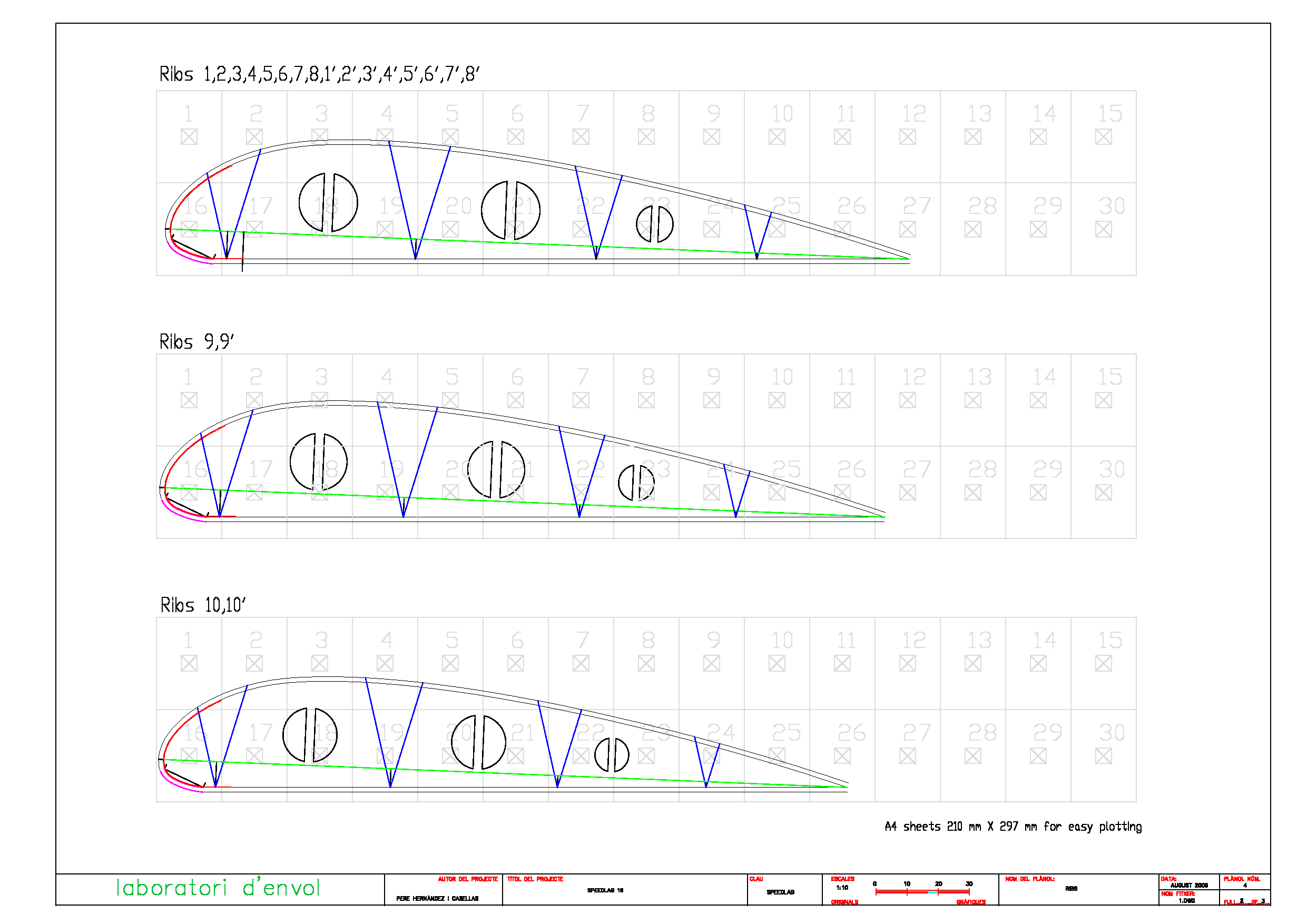

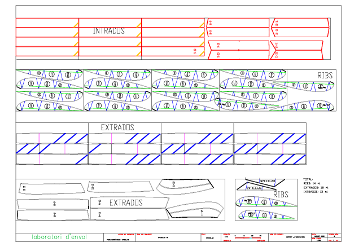

4.2 Ribs 1,2,3,4,5,6,7,8,9,10

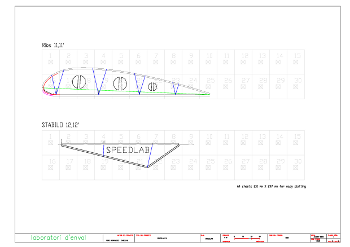

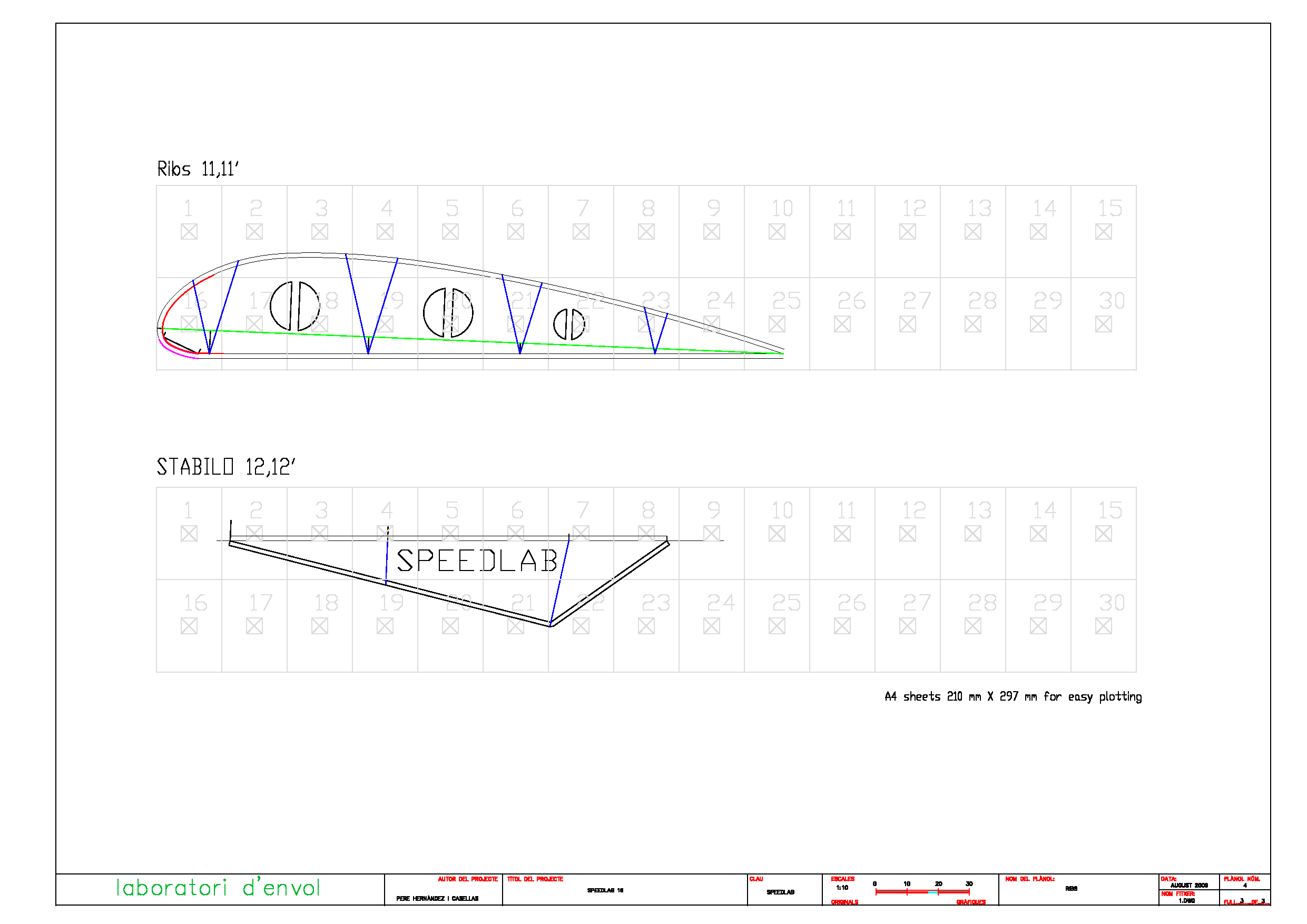

4.3 Ribs 11, and stabilo

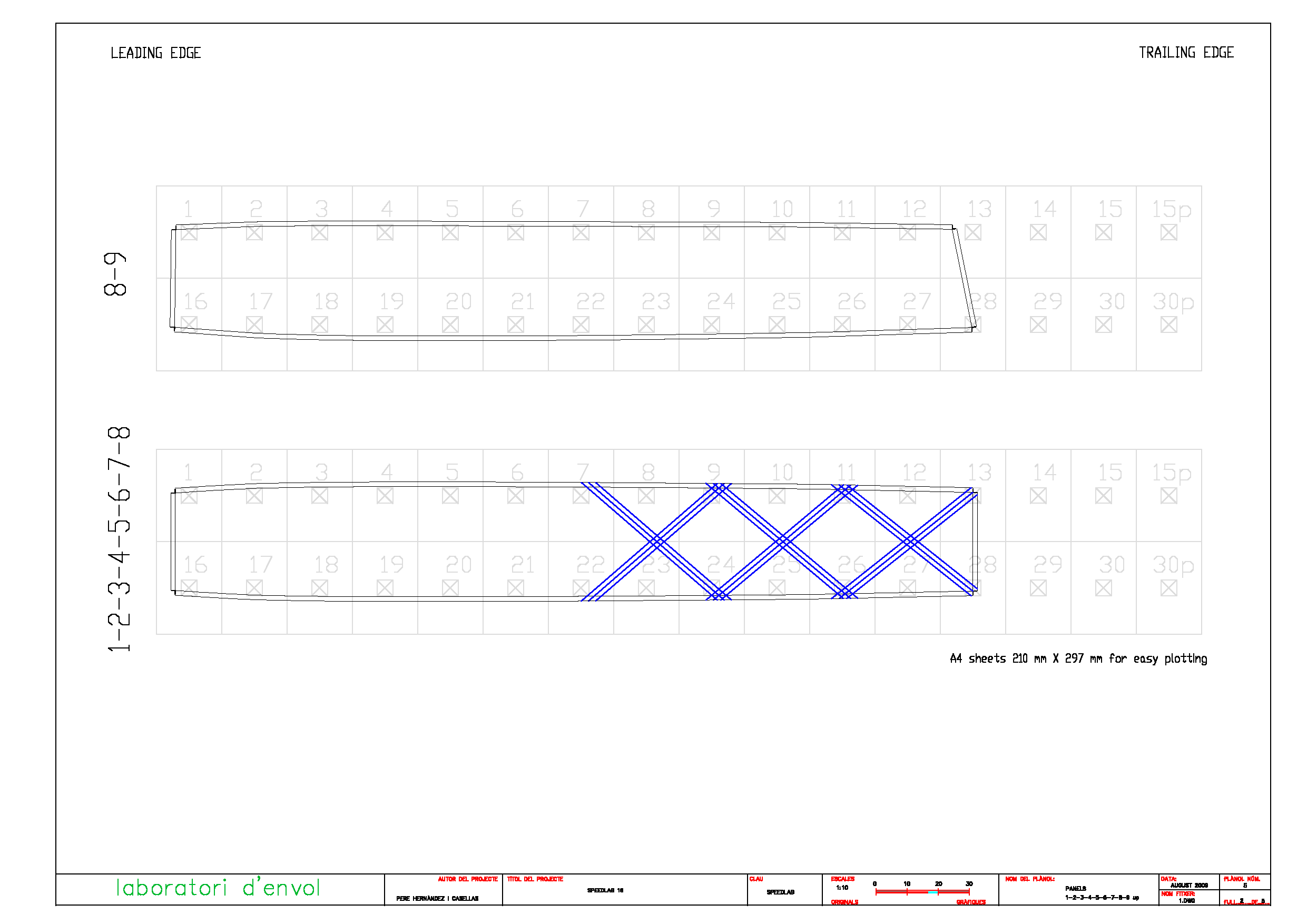

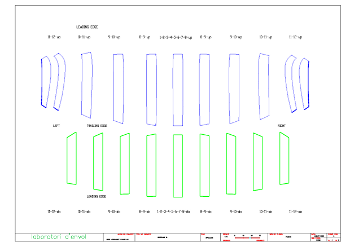

5.1 Panels

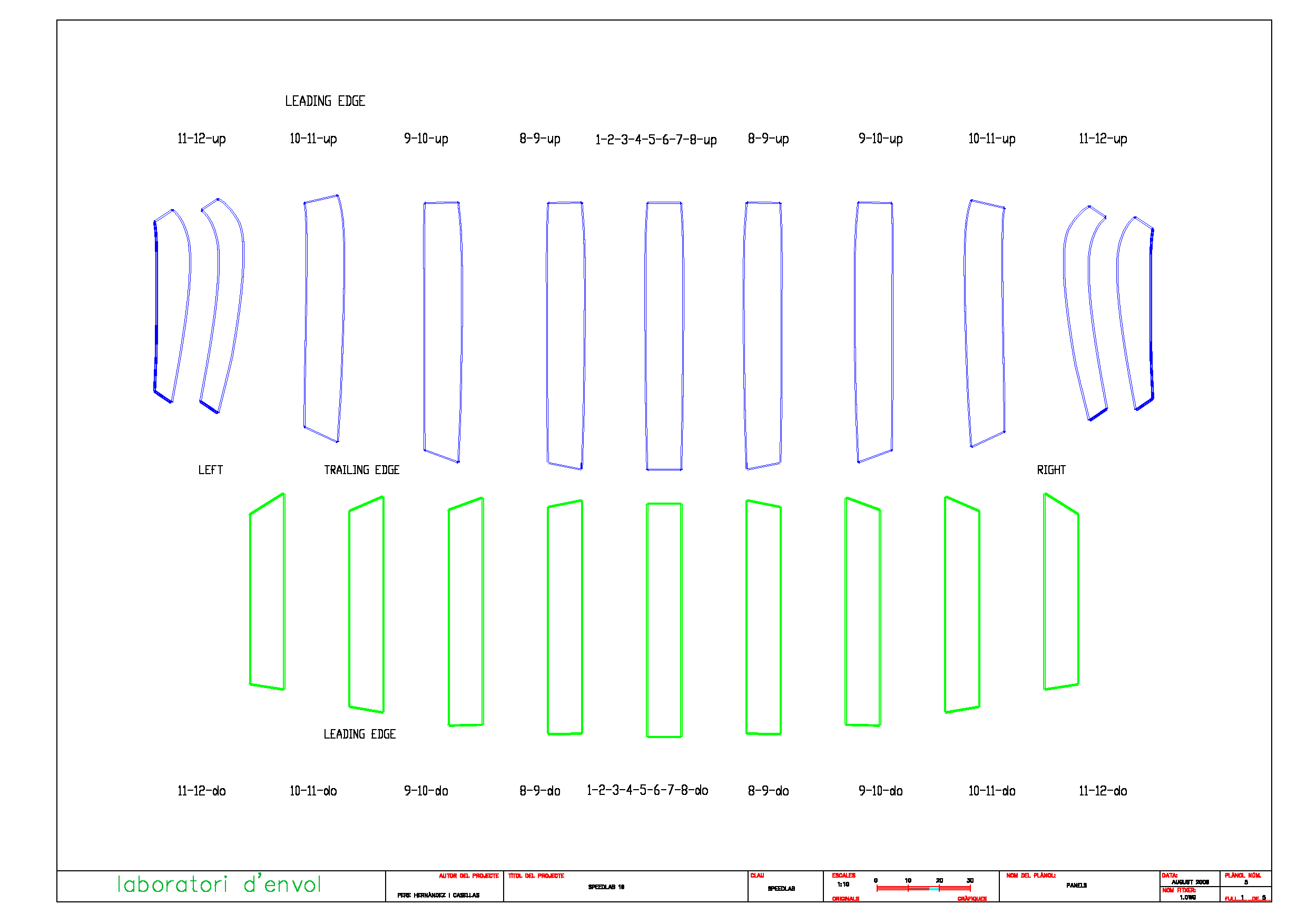

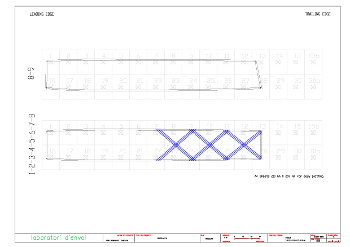

5.2 Panels 1-2-3-4-5-6-7-8-9 up

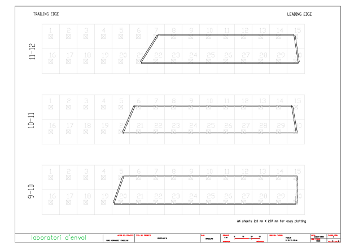

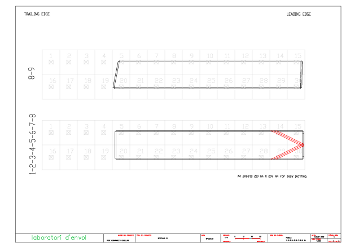

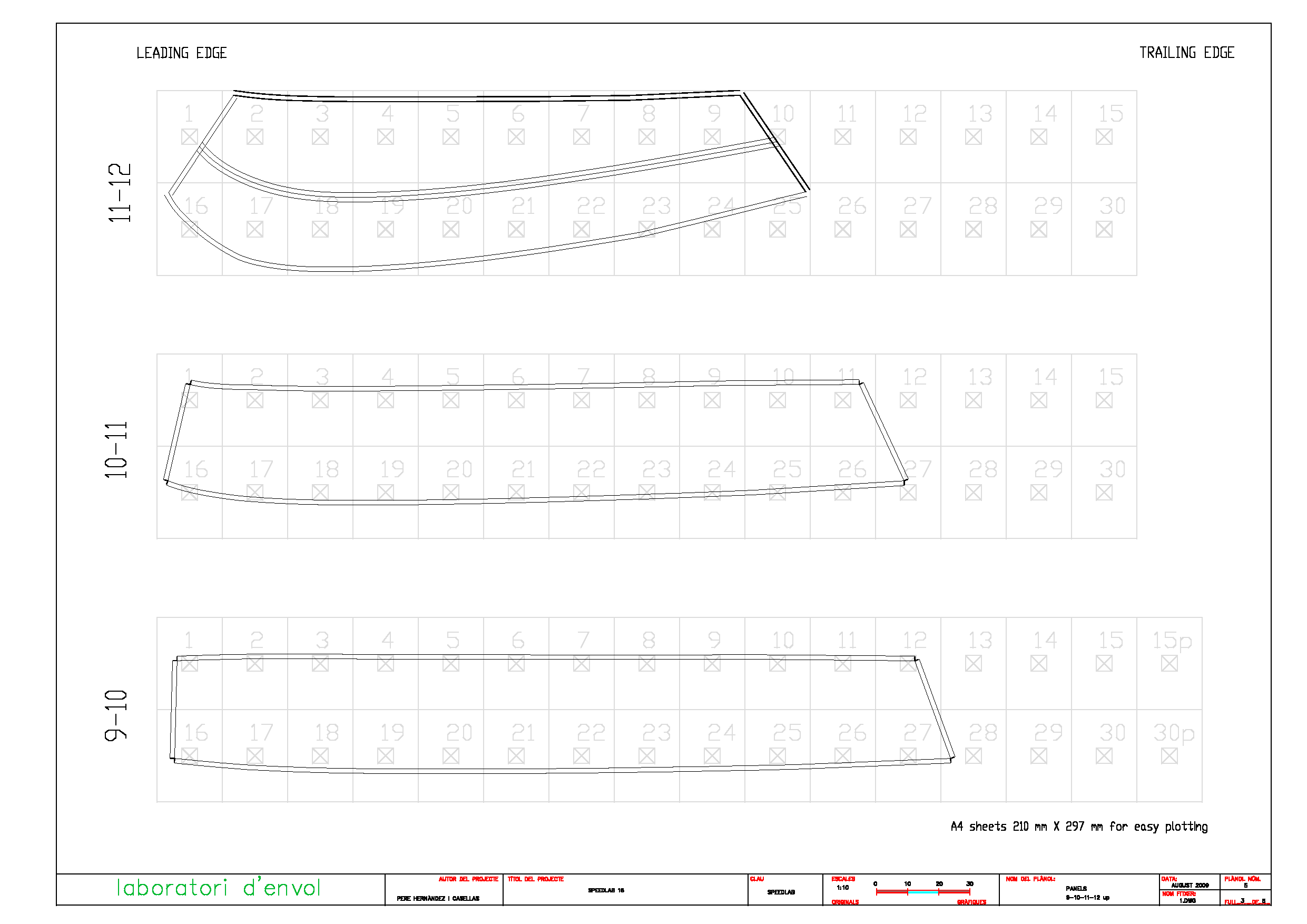

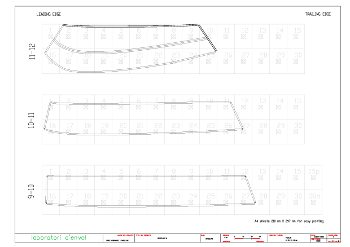

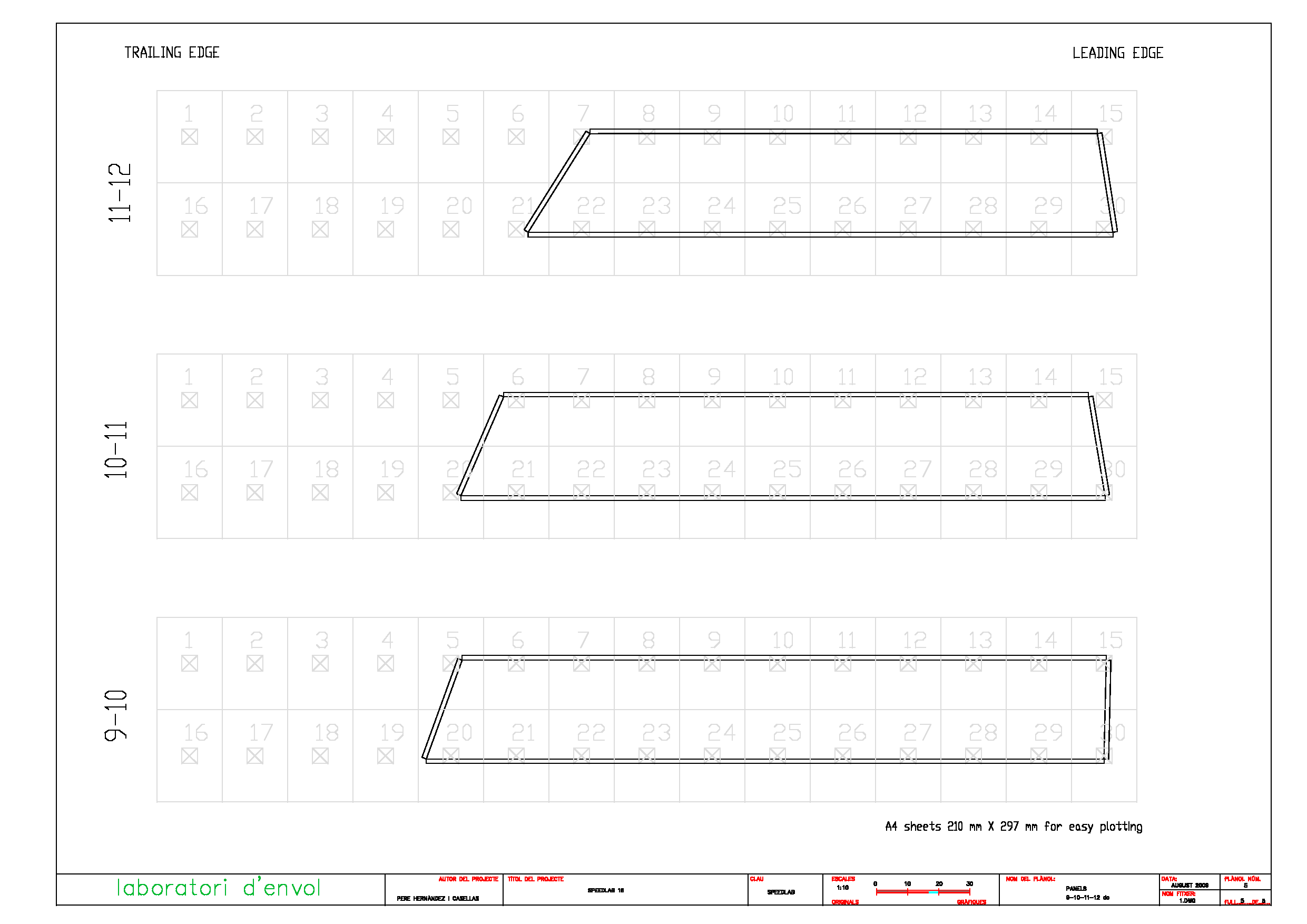

5.3 Panels 9-10-11-12 up

5.4 Panels 1-2-3-4-5-6-7-8-9 do

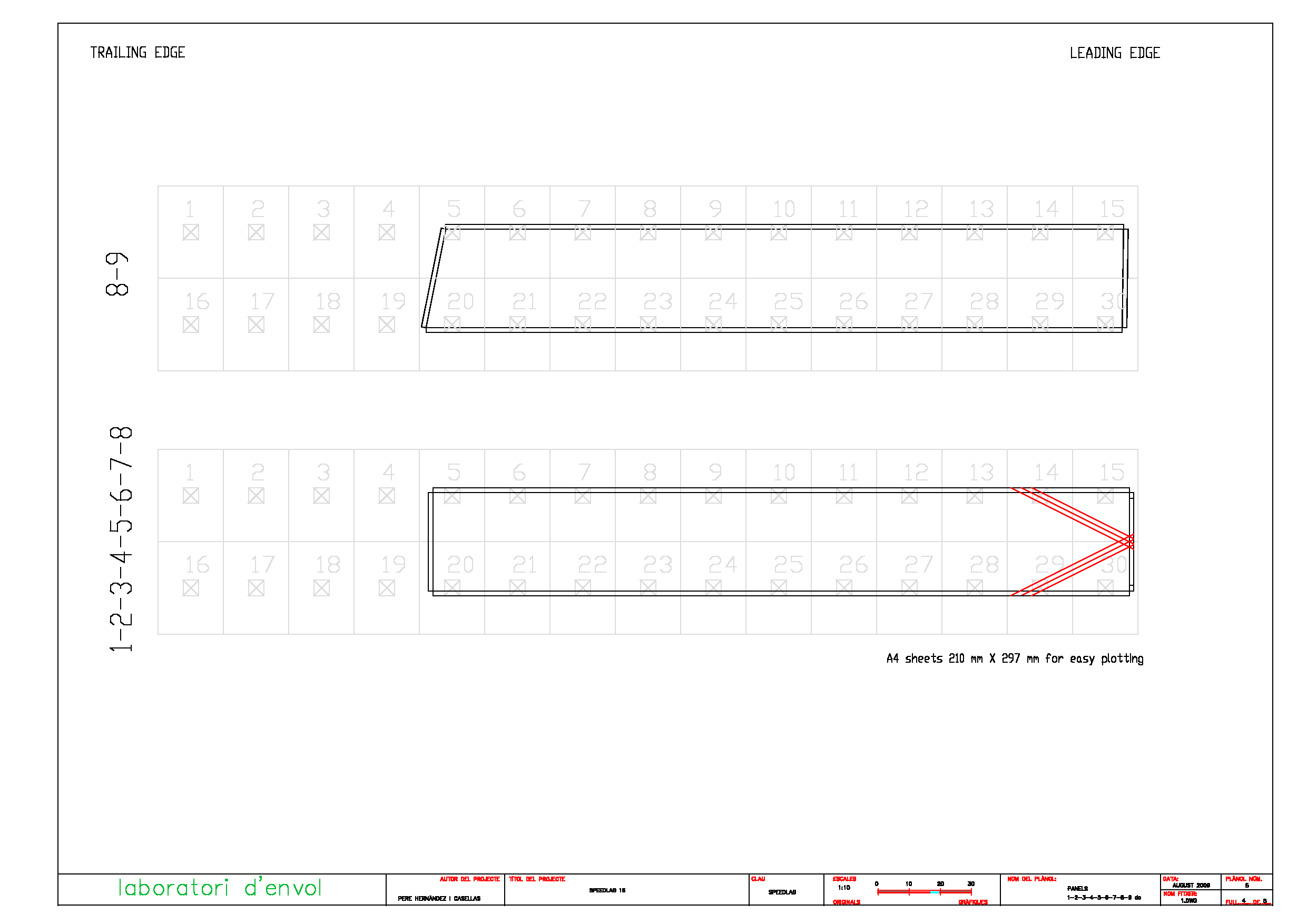

5.5 Panels 9-10-11-12 do

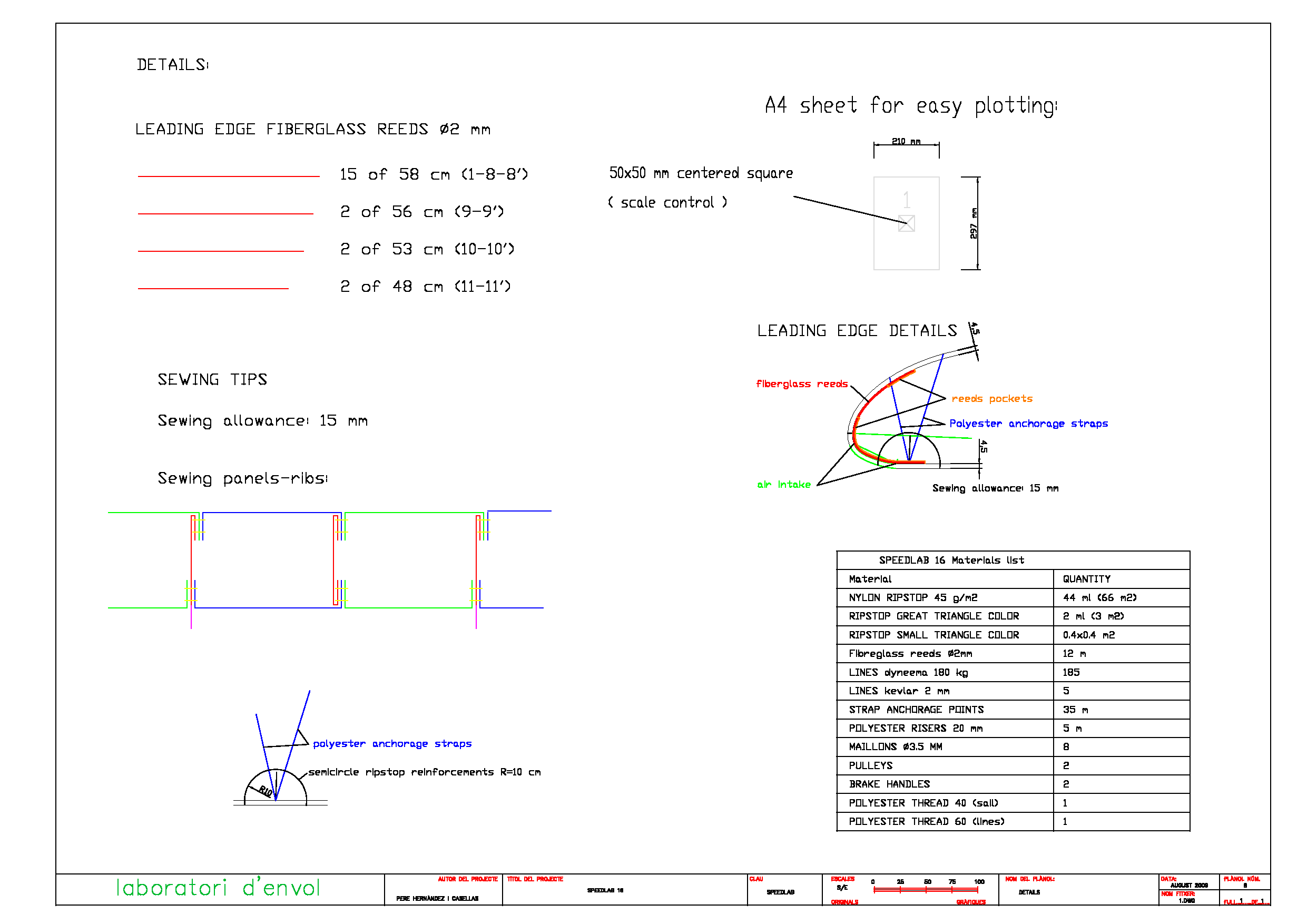

6. Details

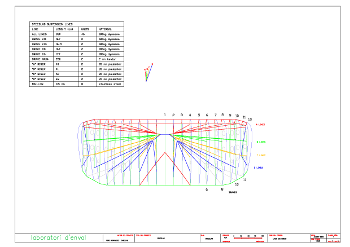

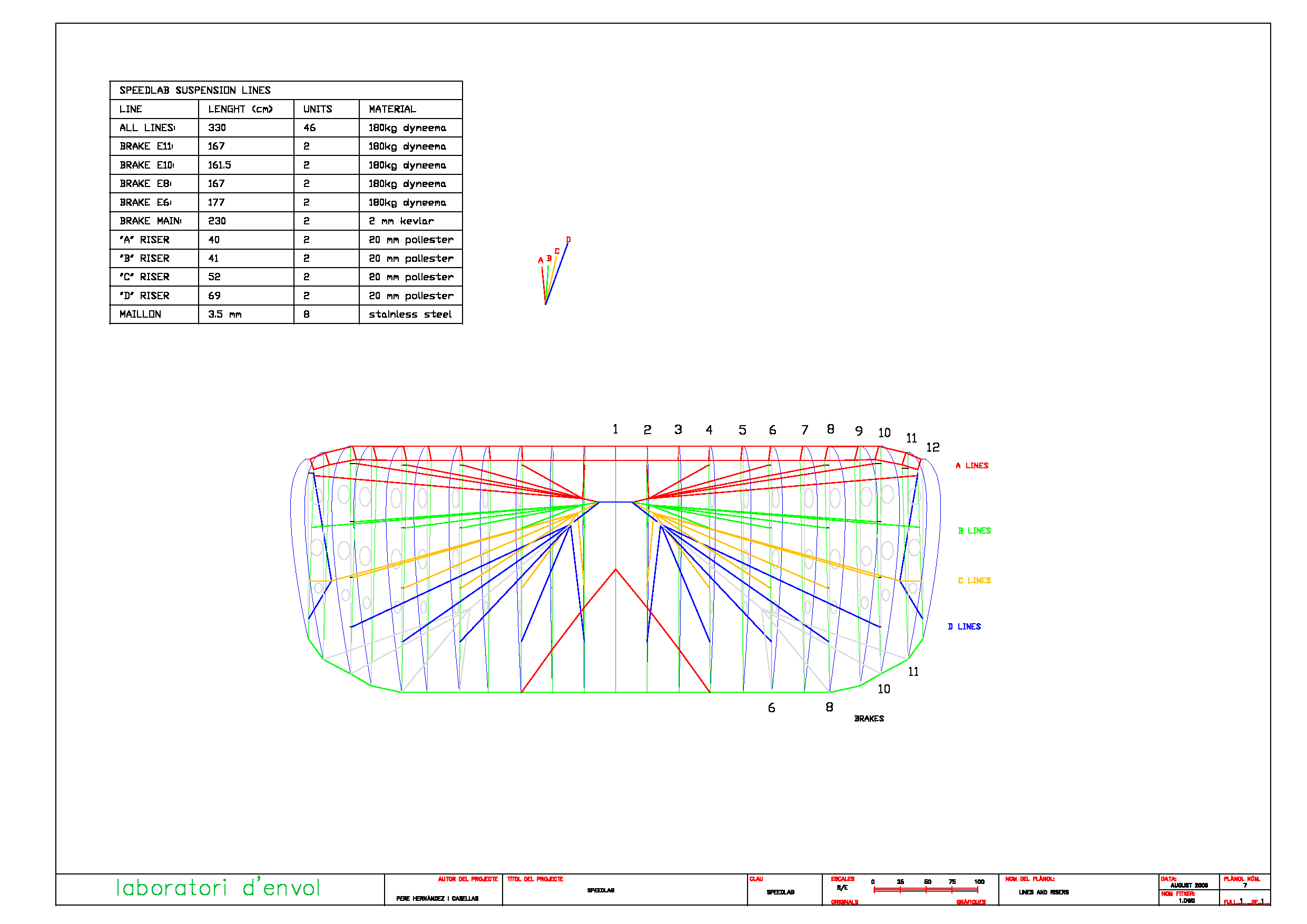

7. Lines and risers

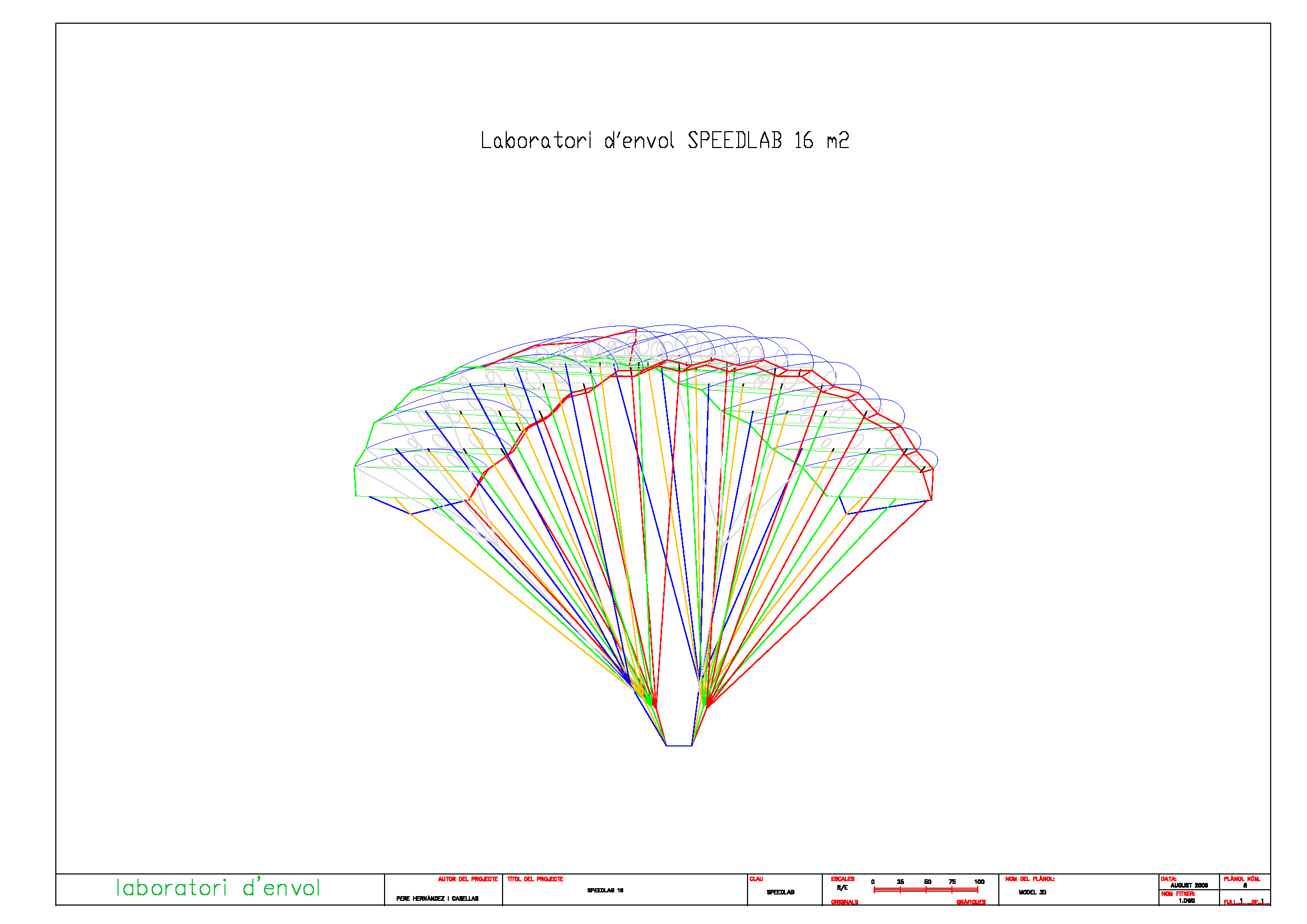

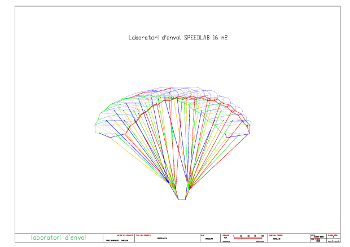

8. Model 3D

9. Ripstop ml verification


2. Plans in DWG format: SPEEDLAB-20090820.dwg.zip
