gnuEASY L (30 m2)


Drawings of the gnuEASY L paraglider here in image format (.png)

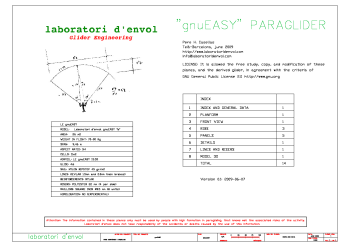

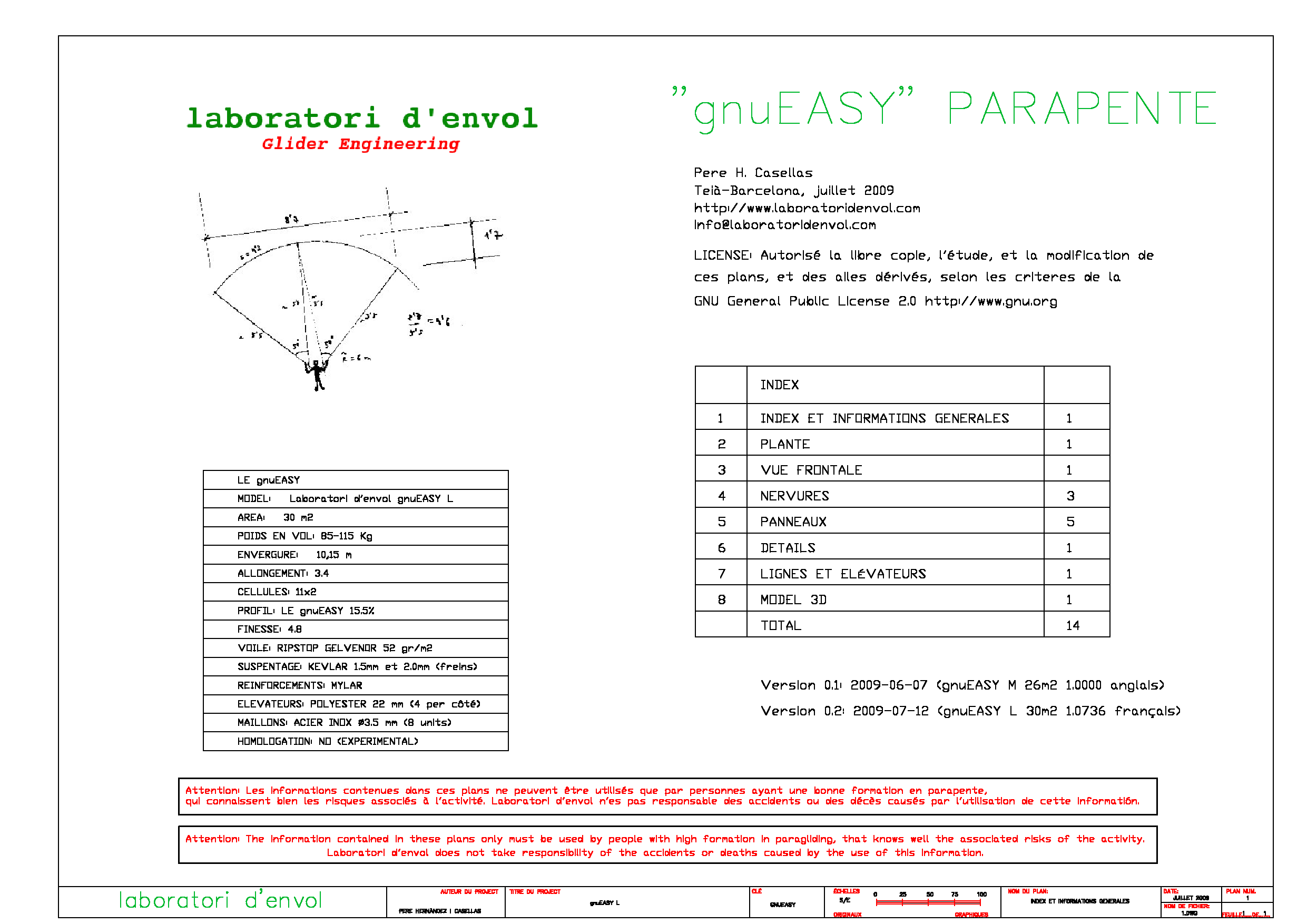

1. Index and basic data

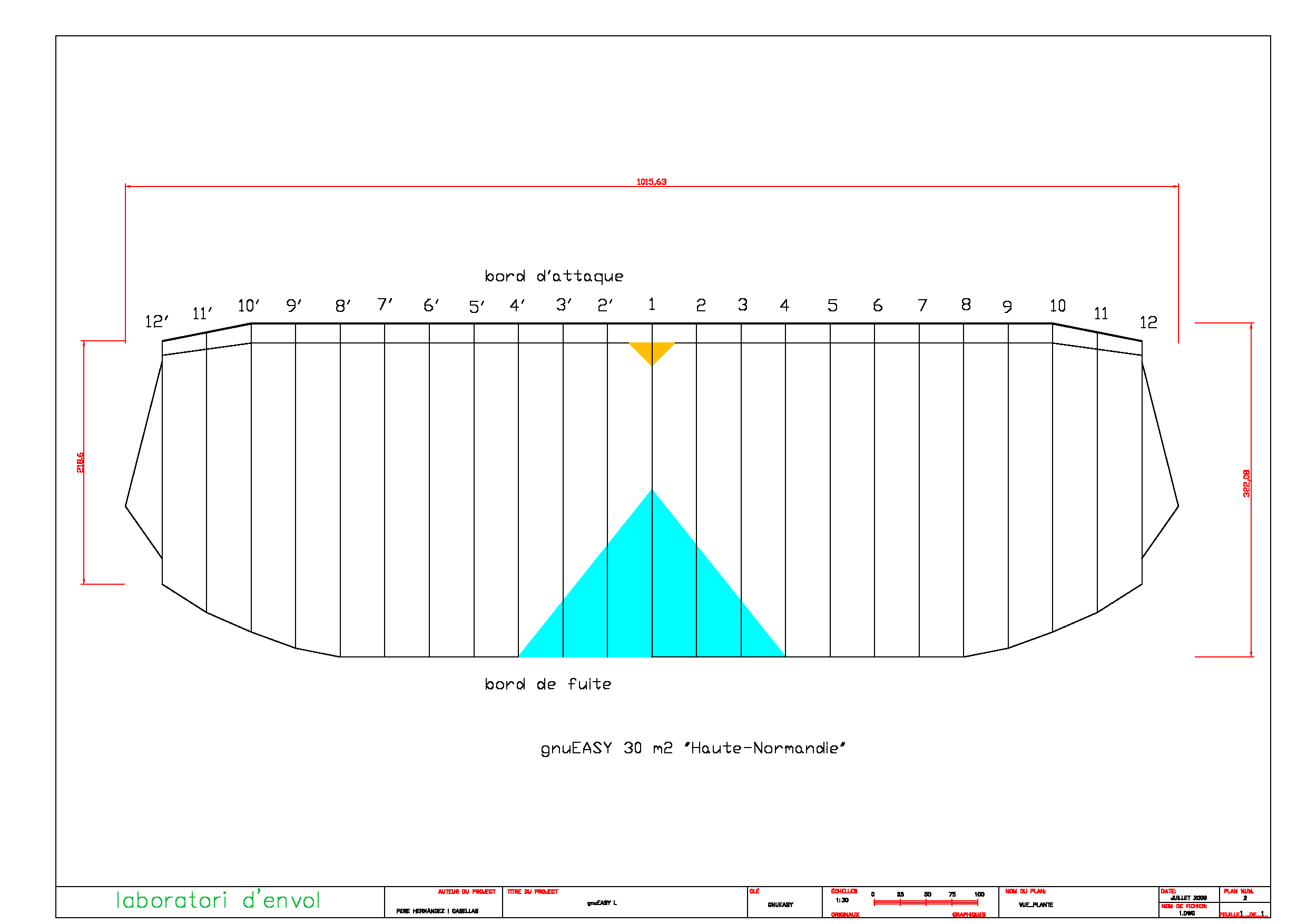

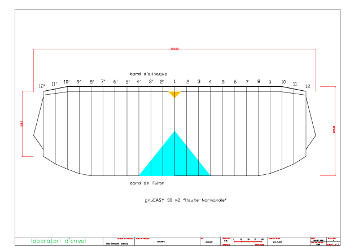

2. Planform

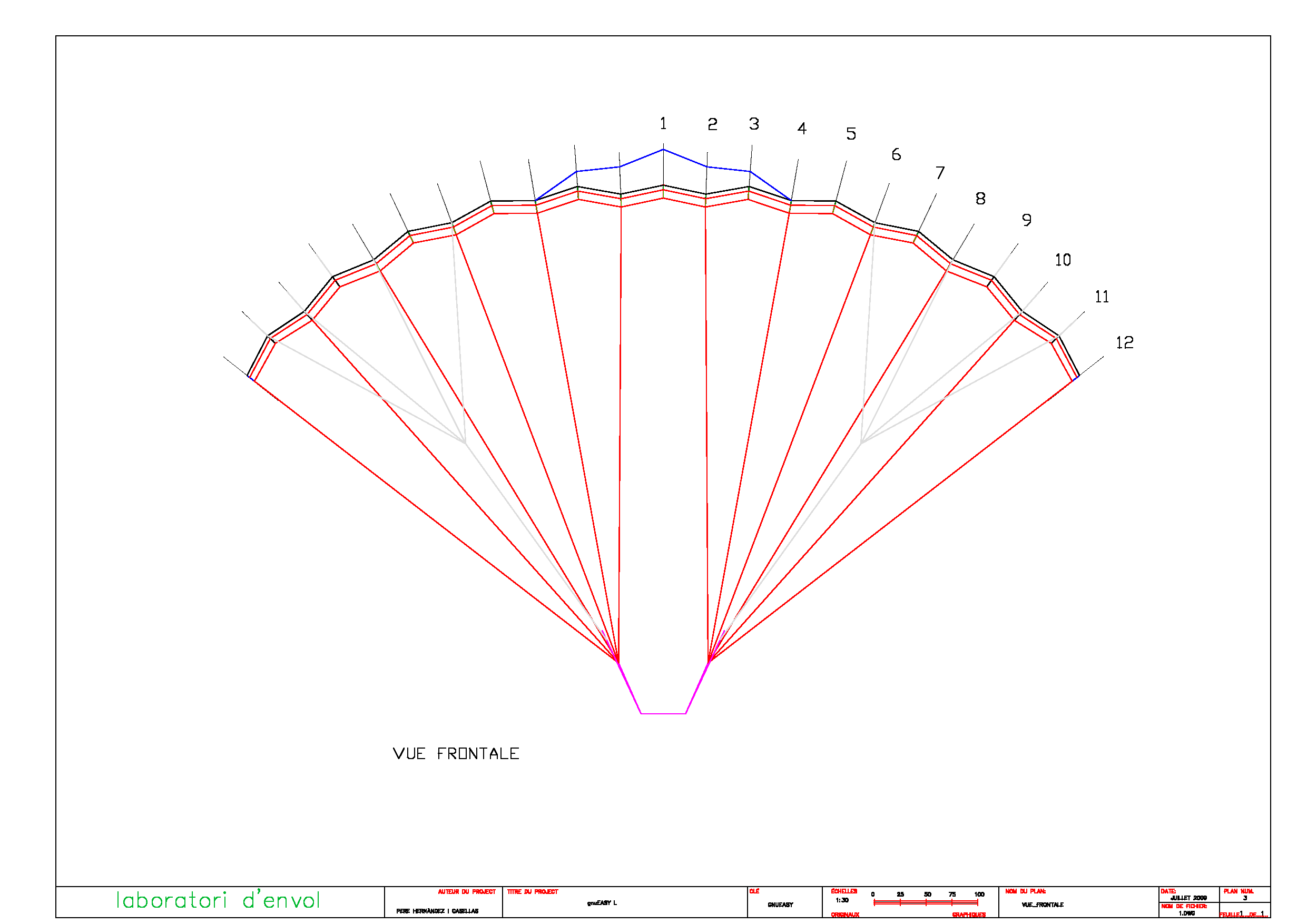

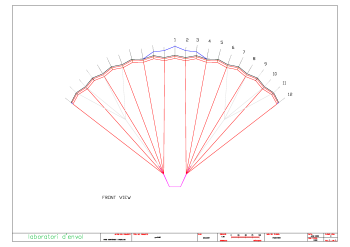

3. Front view

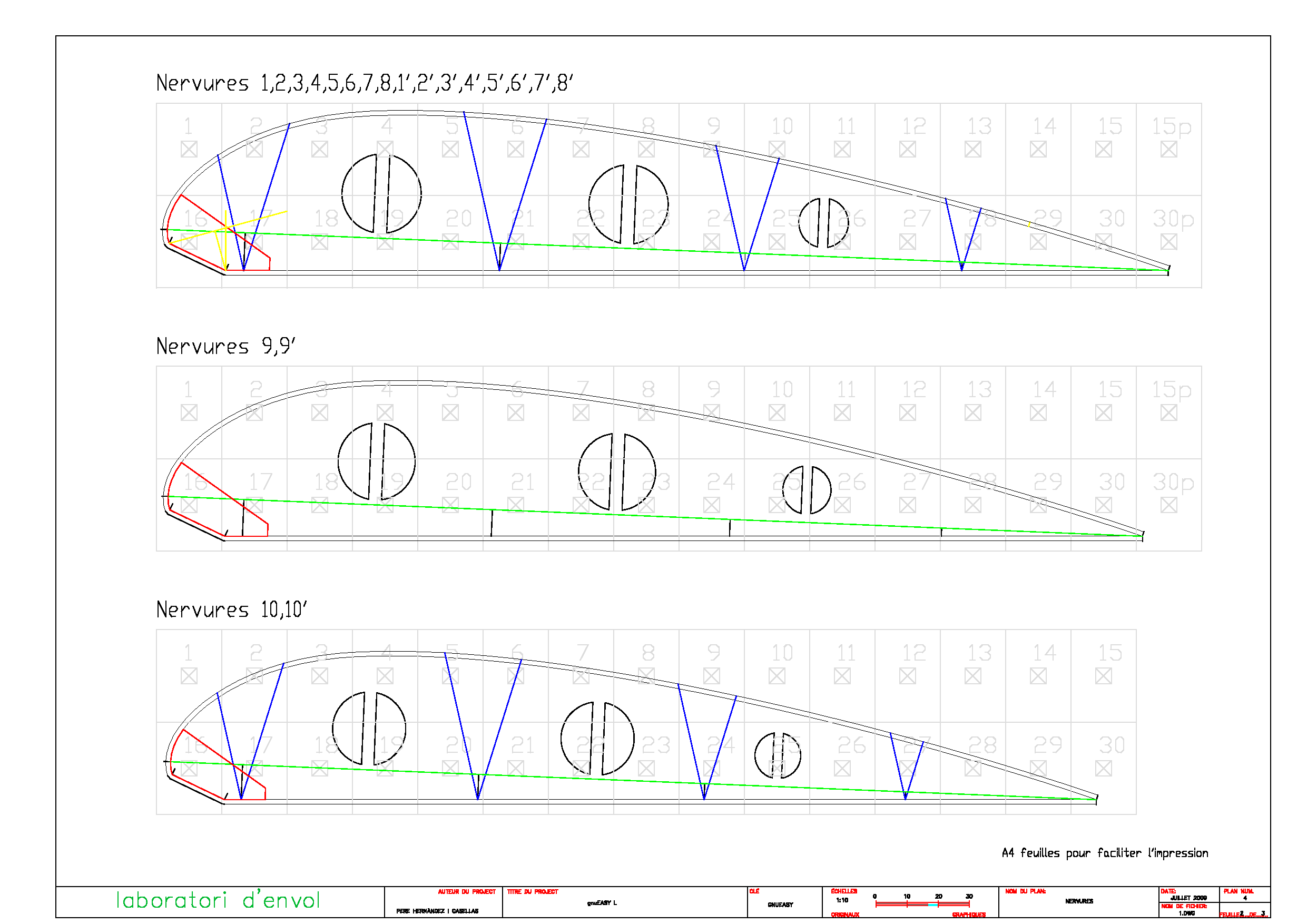

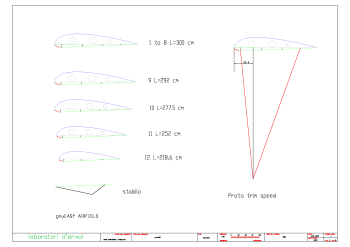

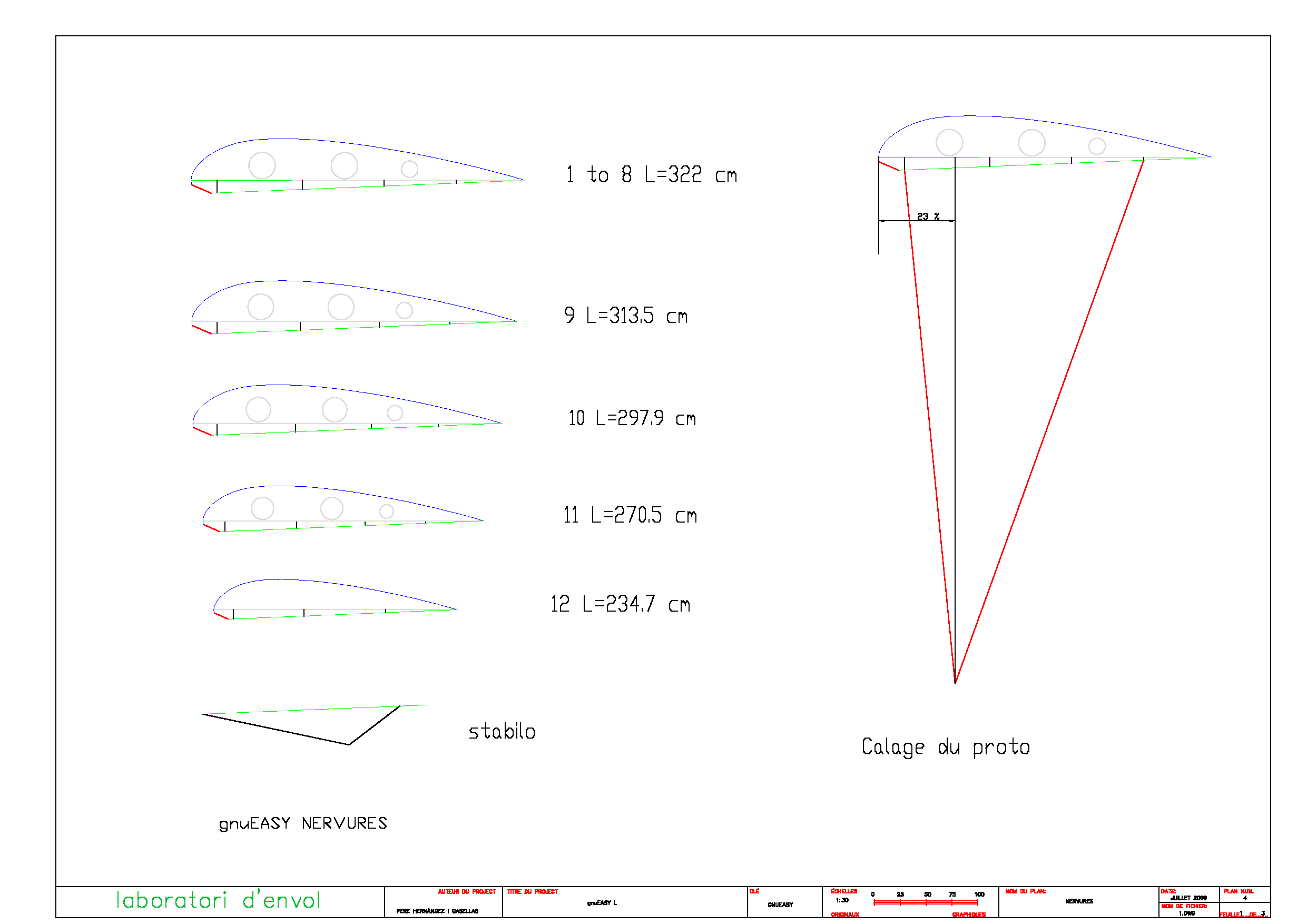

4.1 Ribs

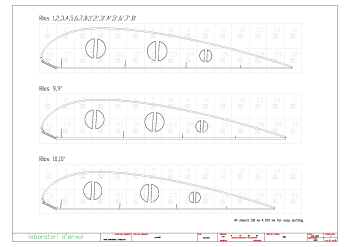

4.2 Ribs 1,2,3,4,5,6,7,8,9,10

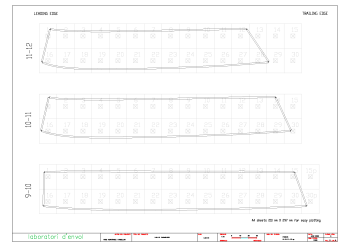

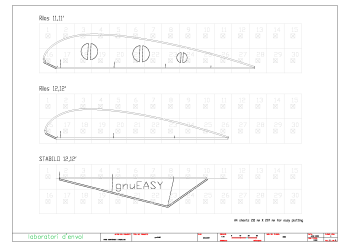

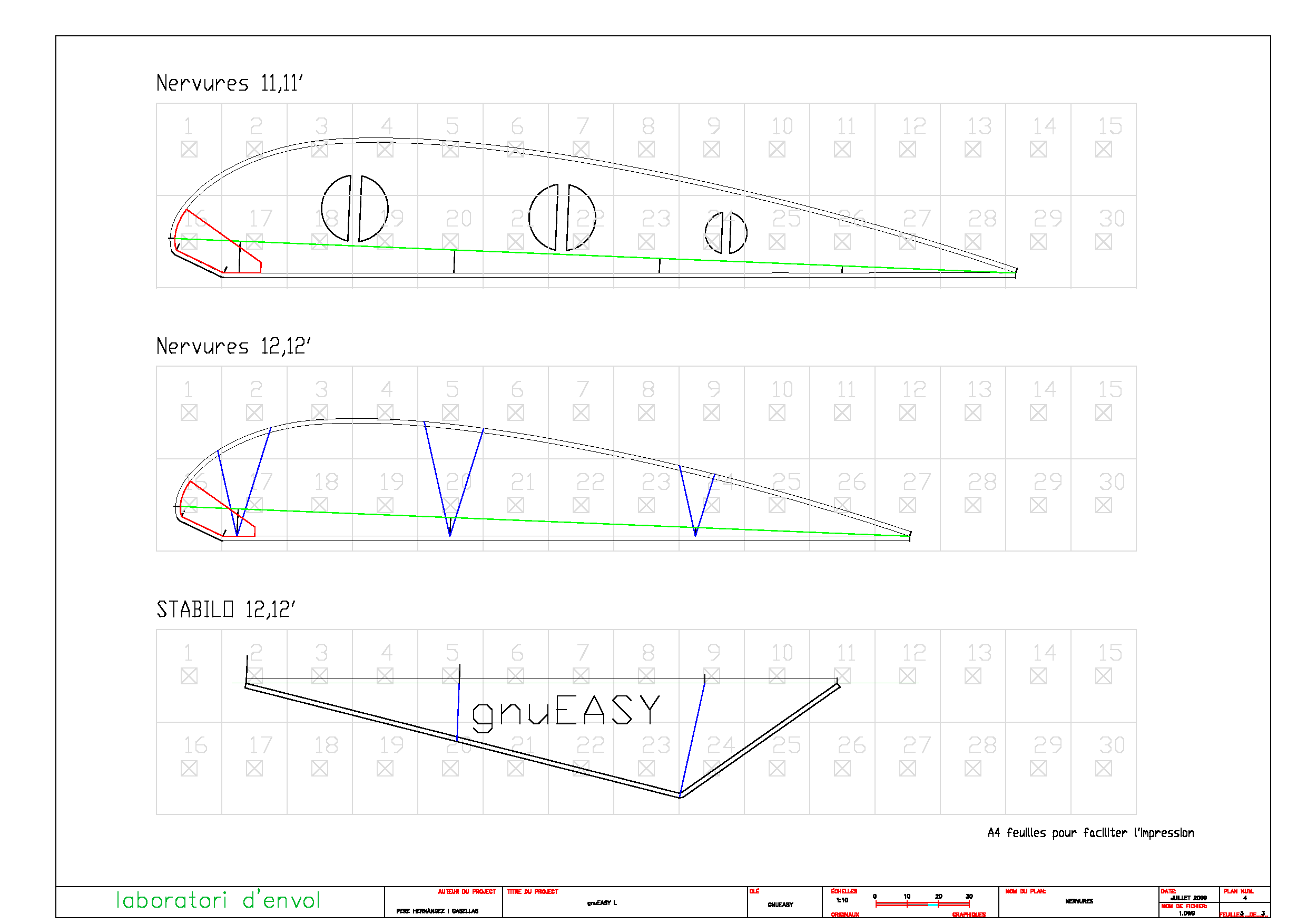

4.3 Ribs 11,12 and stabilo

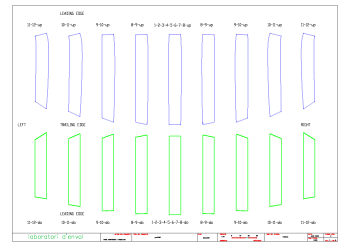

5.1 Panels

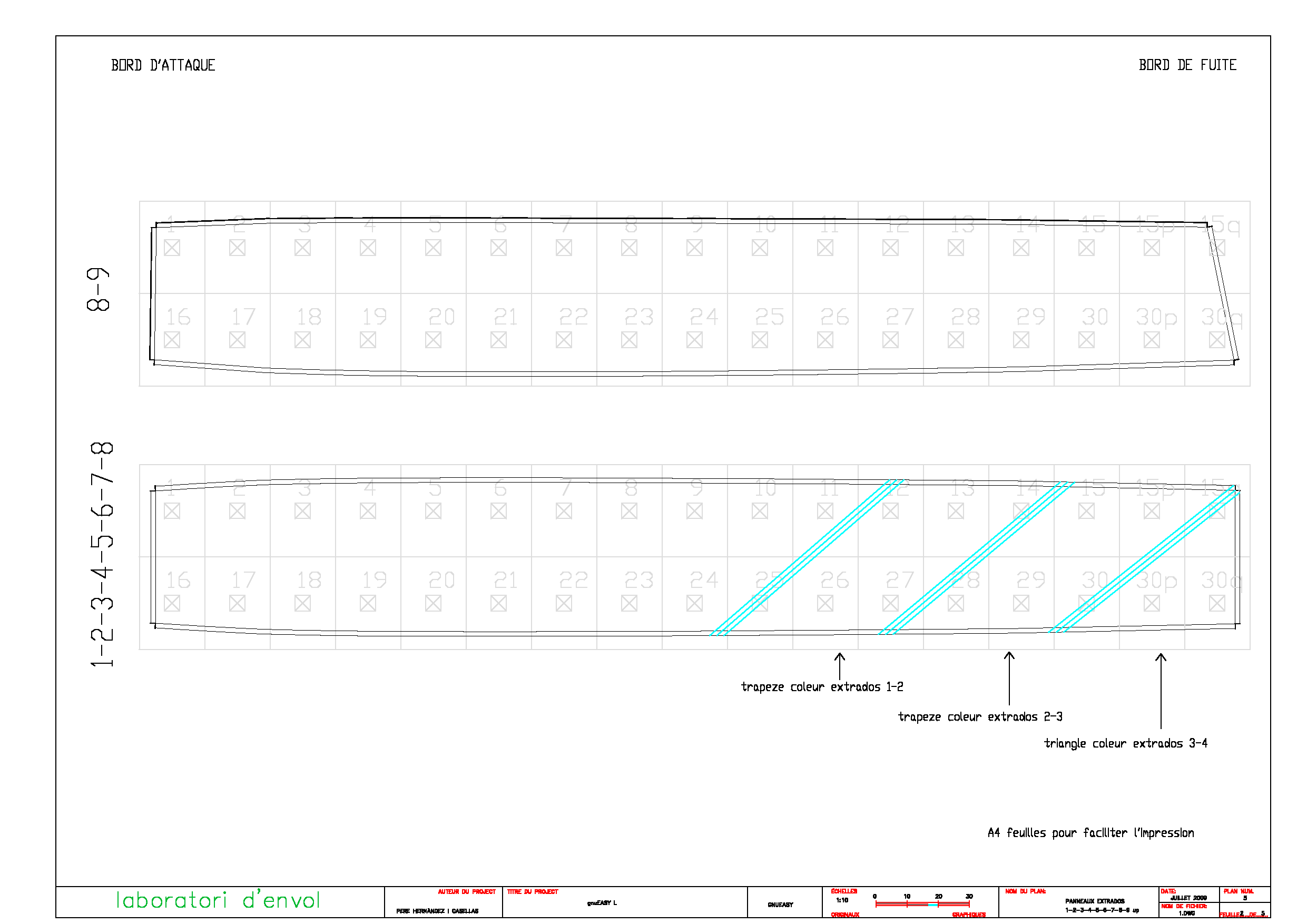

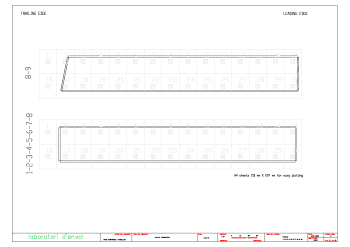

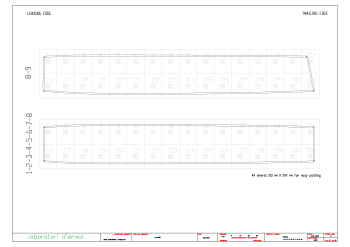

5.2 Panels 1-2-3-4-5-6-7-8-9 up

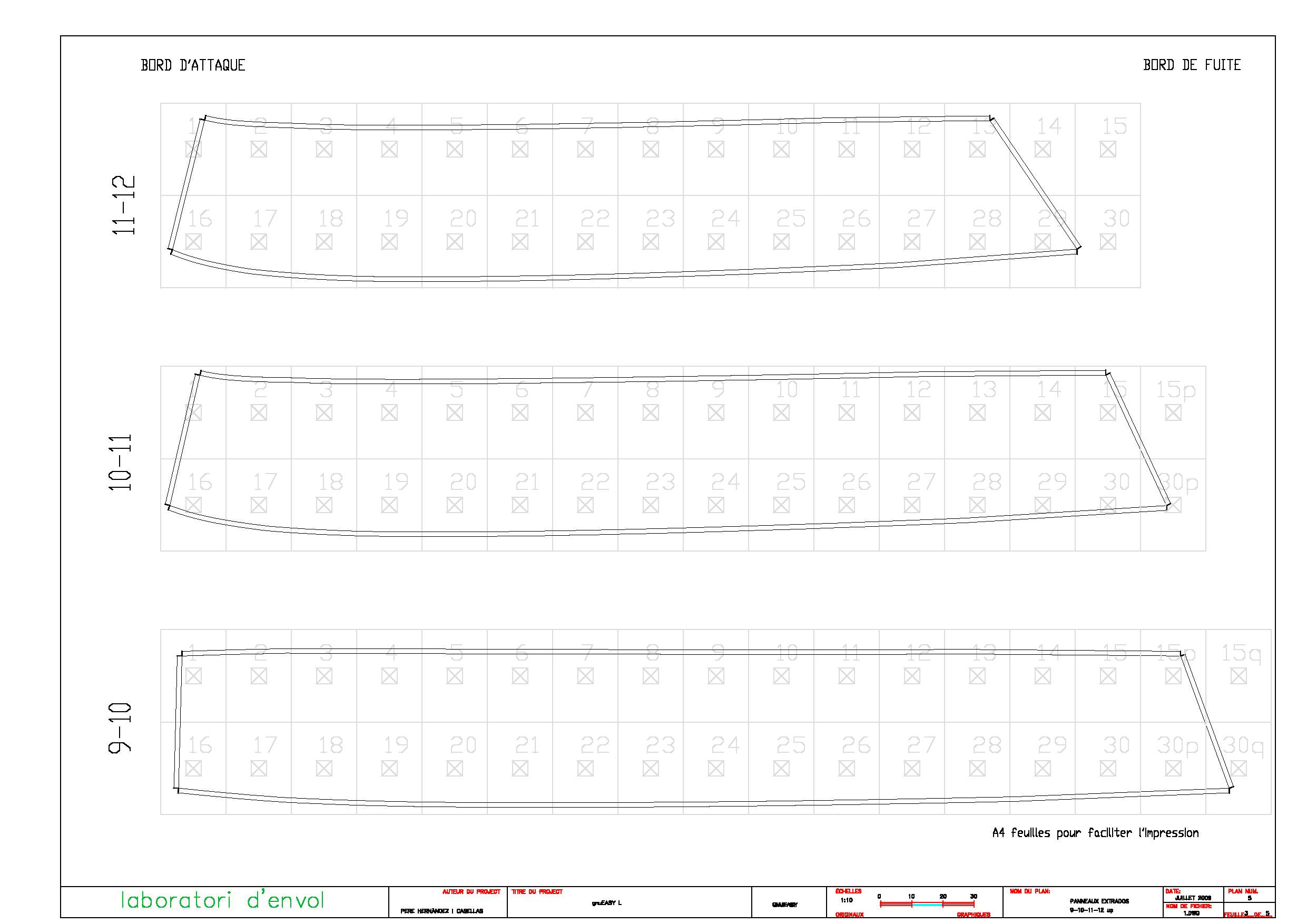

5.3 Panels 9-10-11-12 up

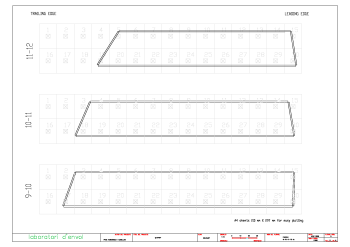

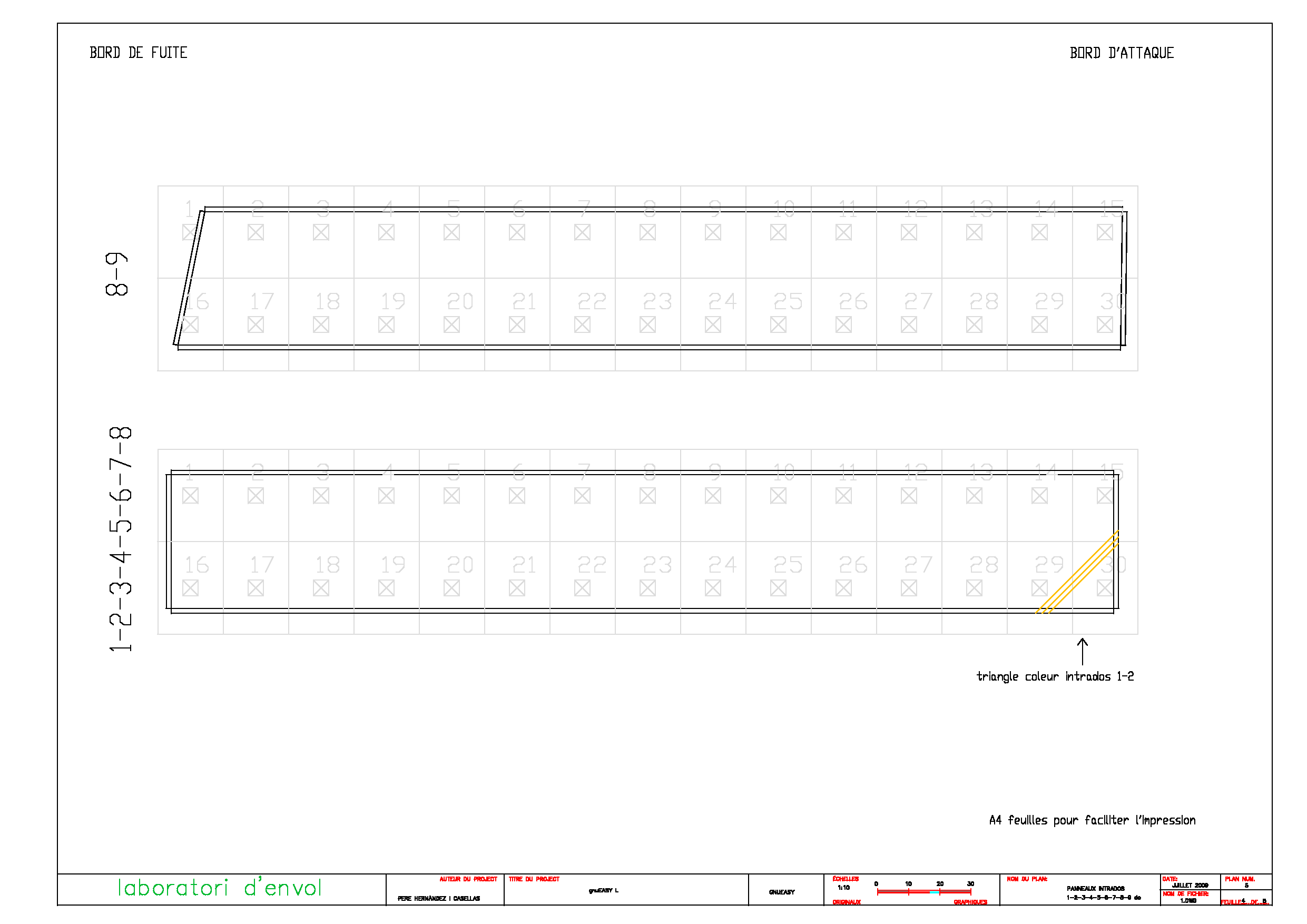

5.4 Panels 1-2-3-4-5-6-7-8-9 do

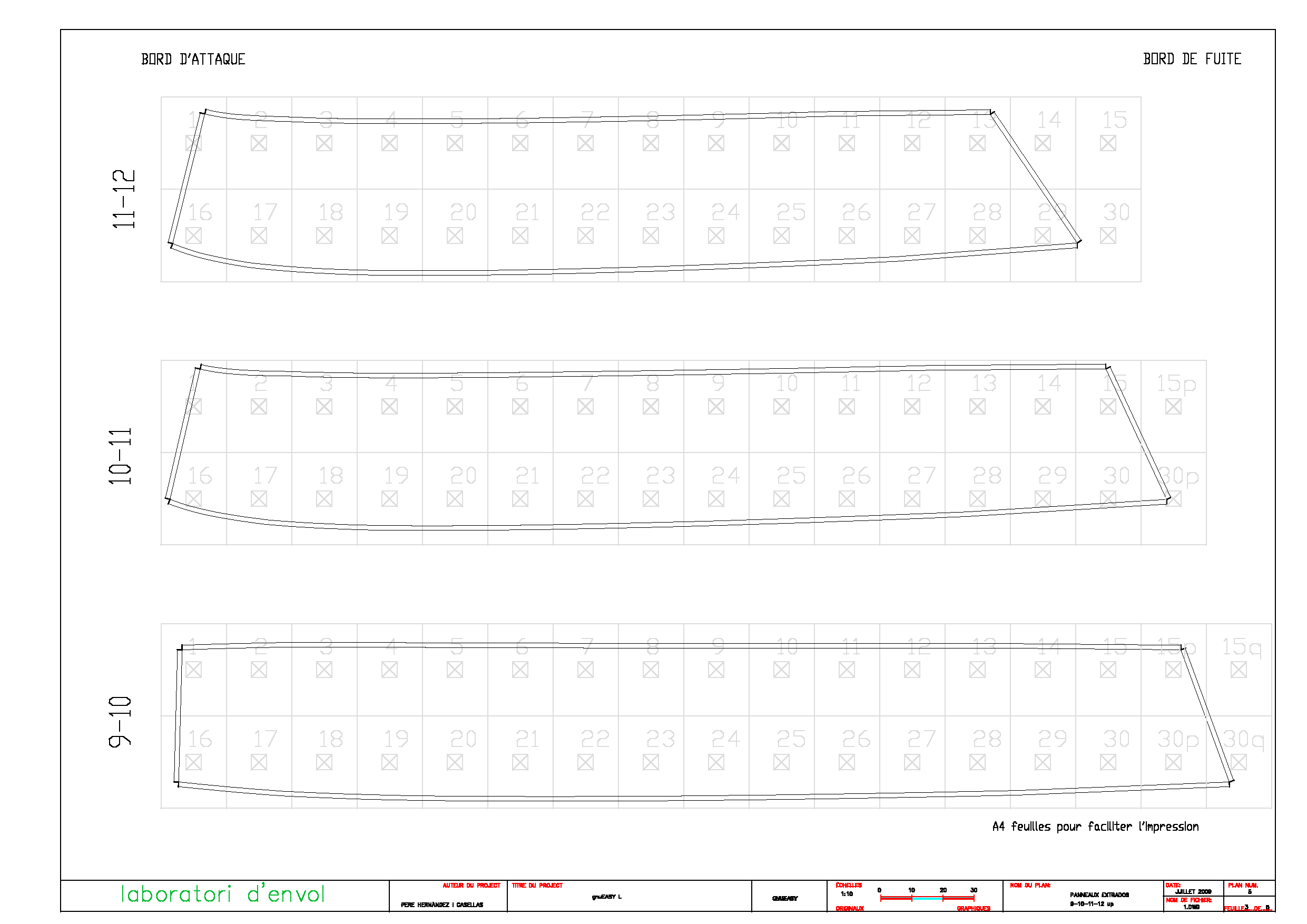

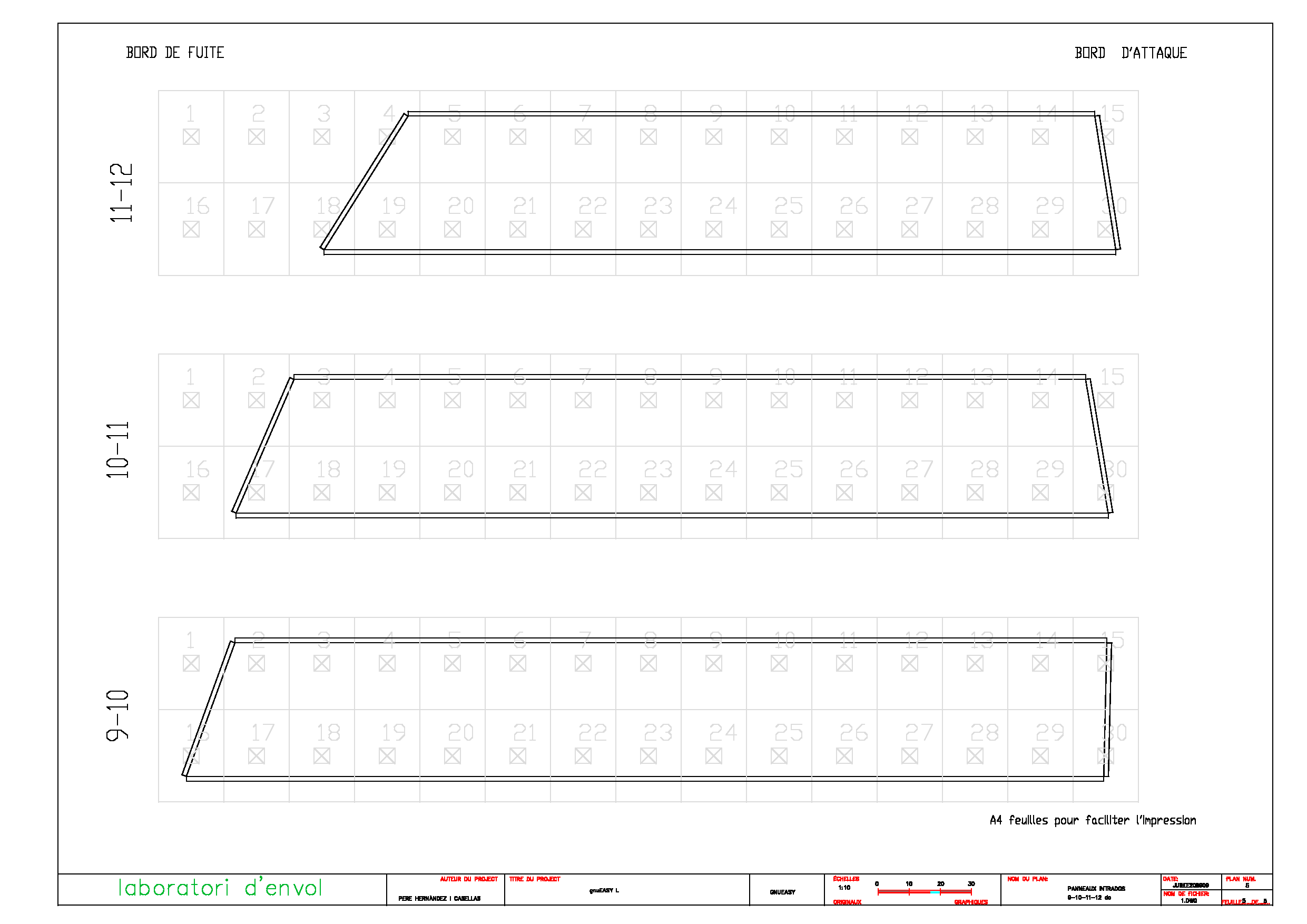

5.5 Panels 9-10-11-12 do

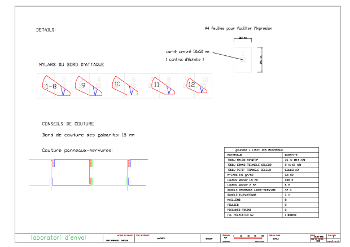

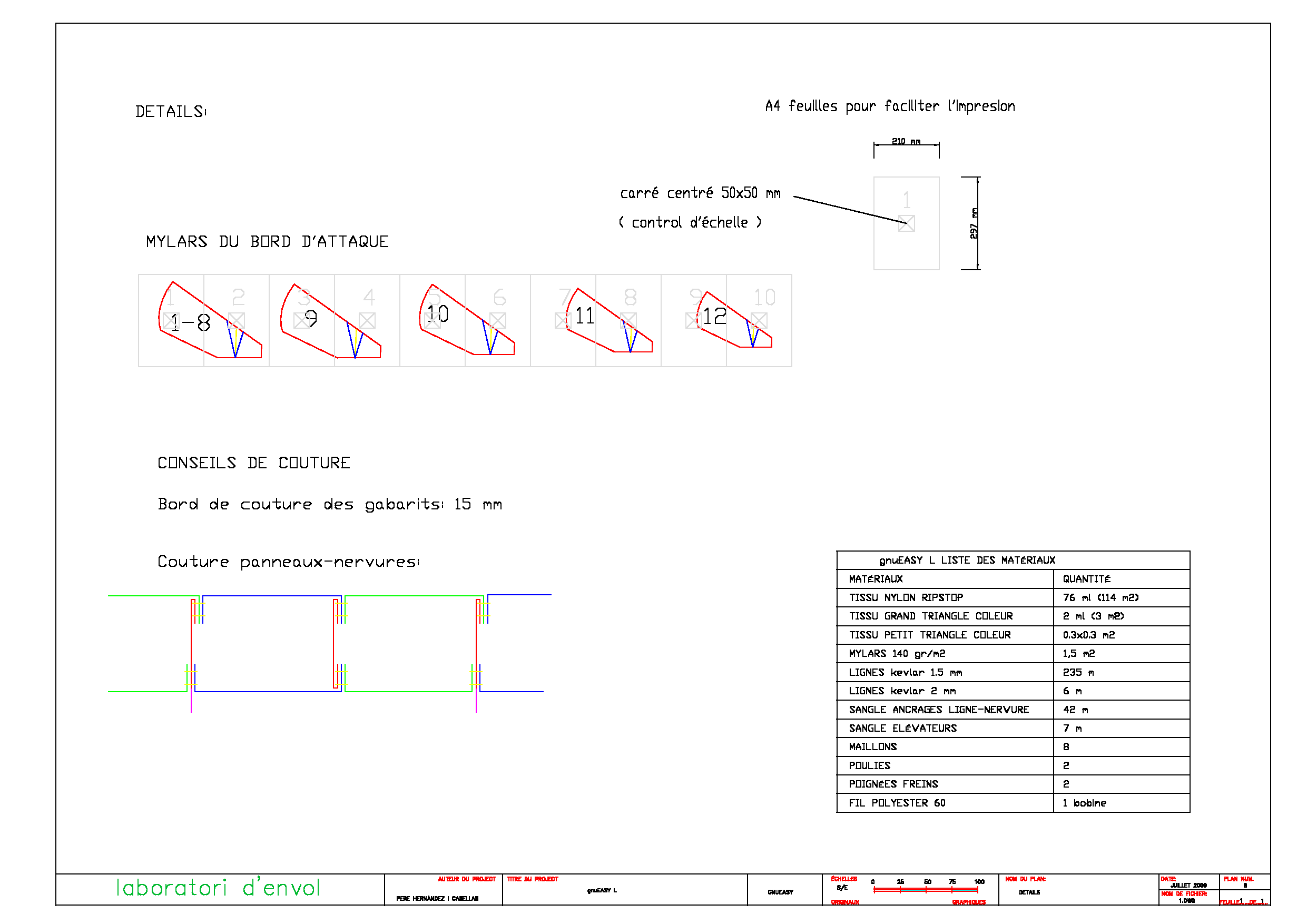

6. Details

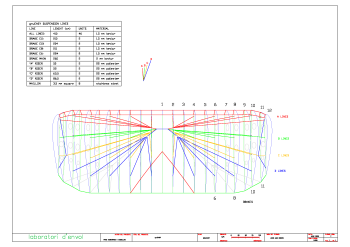

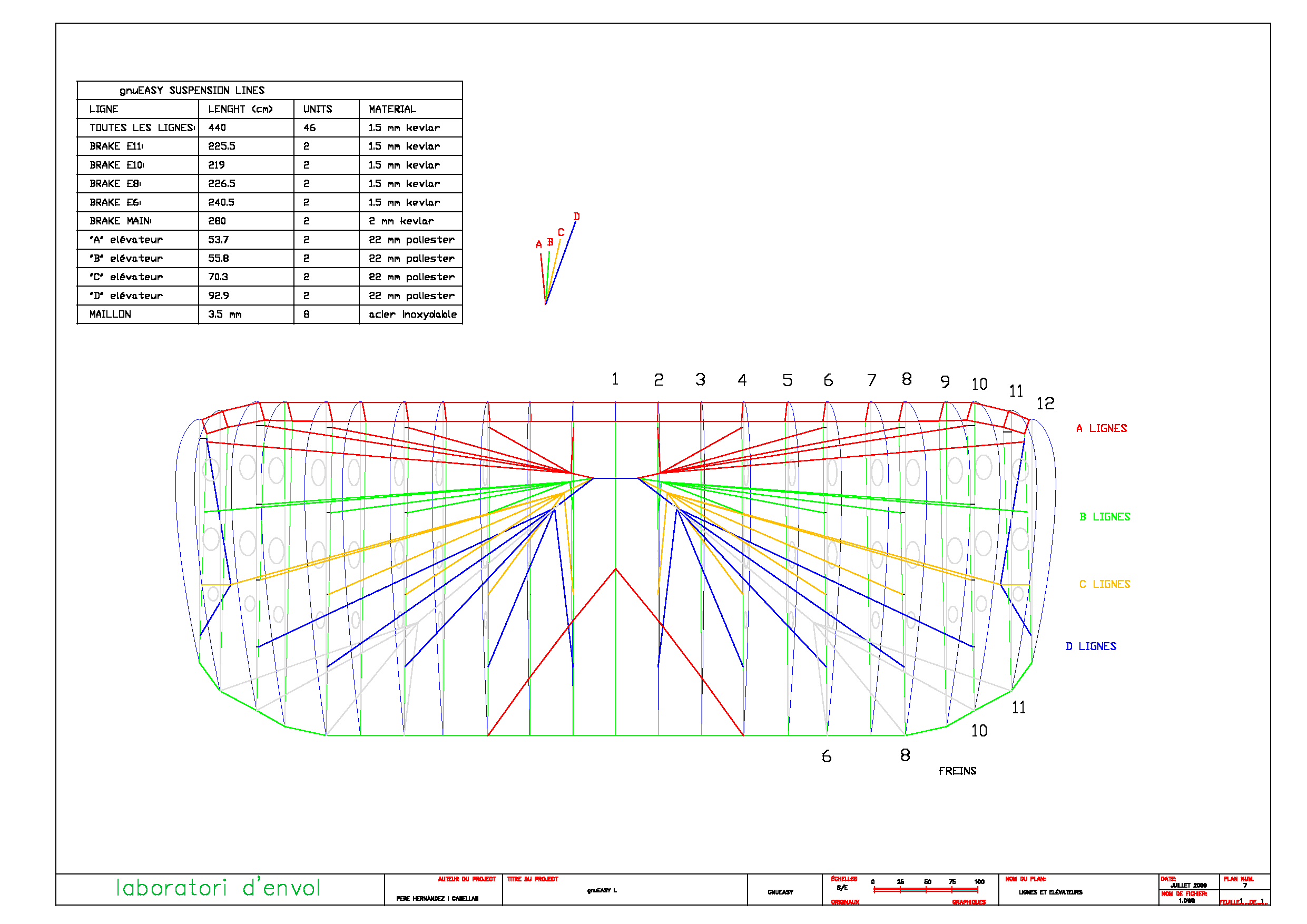

7. Lines and risers

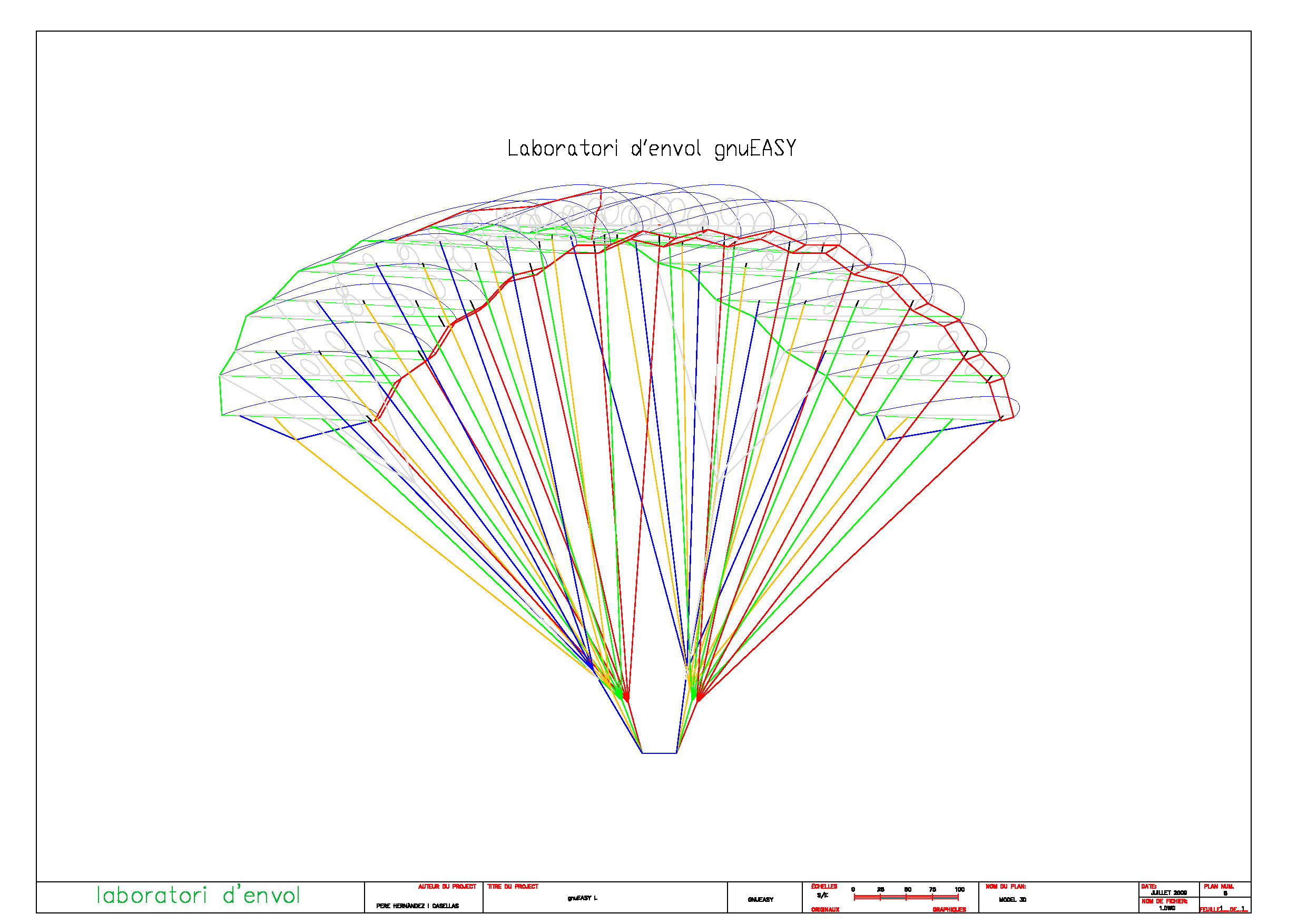

8. Model 3D

gnuEASY-20090726.dwg.zip
